8140.43C.2590

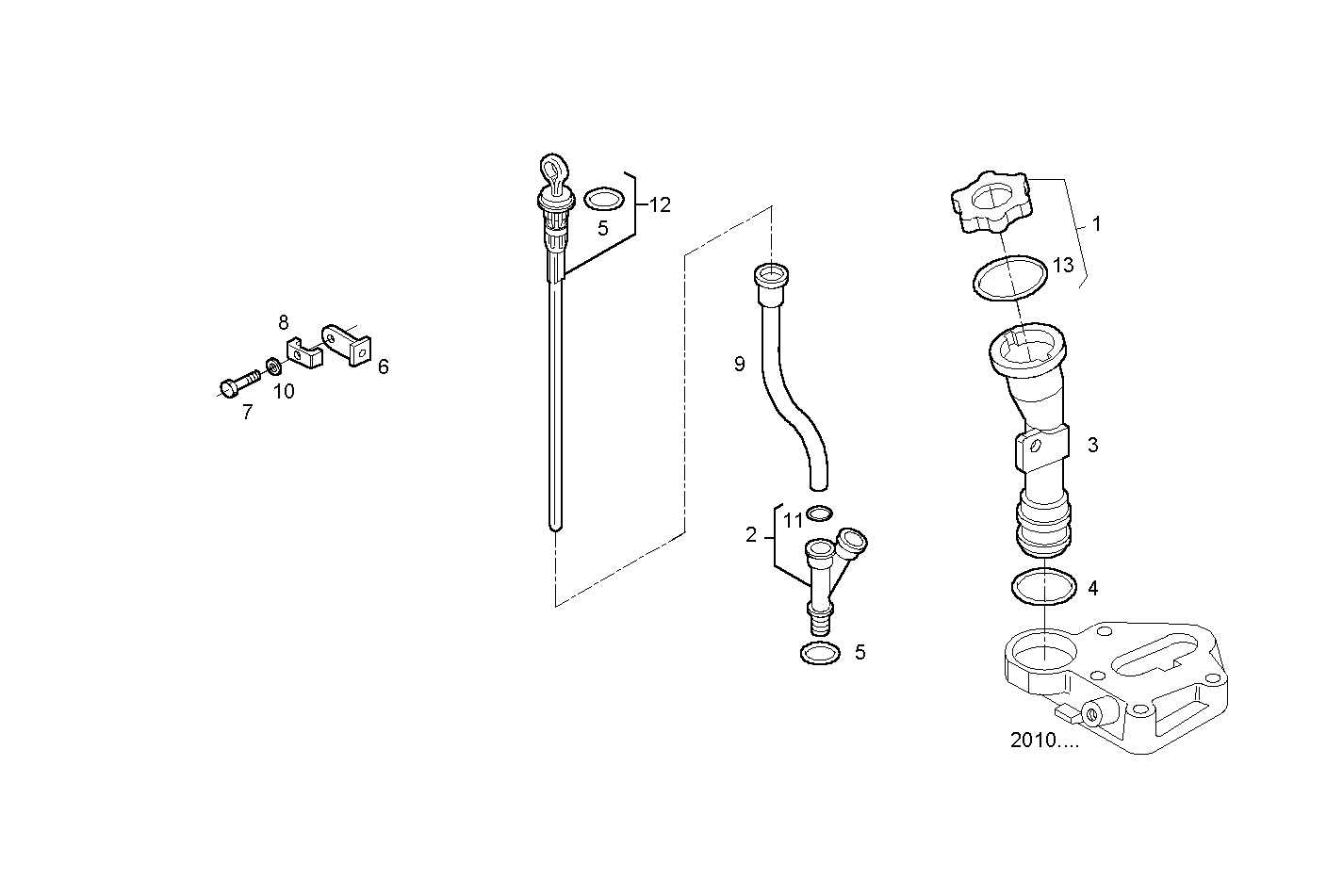

2710.131 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 500301568 | OIL FILLER PLUG ASSY |
| 2 | 99441398 | PIPE SOCKET ASSY |
| 3 | 99459927 | OIL FILLER PIPE |
| 4 | 17282681 | O-RING SP=2,62 MM |
| 5 | 17277981 | O-RING 1,78x9,25 |
| 6 | 500332591 | RETAINER DAMPERS |
| 7 | 16673734 | HEXAGON BOLT M8X25 MM |
| 8 | 4716870 | RETAINER |
| 9 | 500331603 | OIL LEVEL TUBE Ø8X10 MM [from 2517299] |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 17281581 | O-RING Ø12,37X2,62 MM |
| 12 | 504073347 | OIL DIPSTICK ASSY |
| 13 | 17295480 | O-RING 5,33x37,46 |
