8140.43C.2590

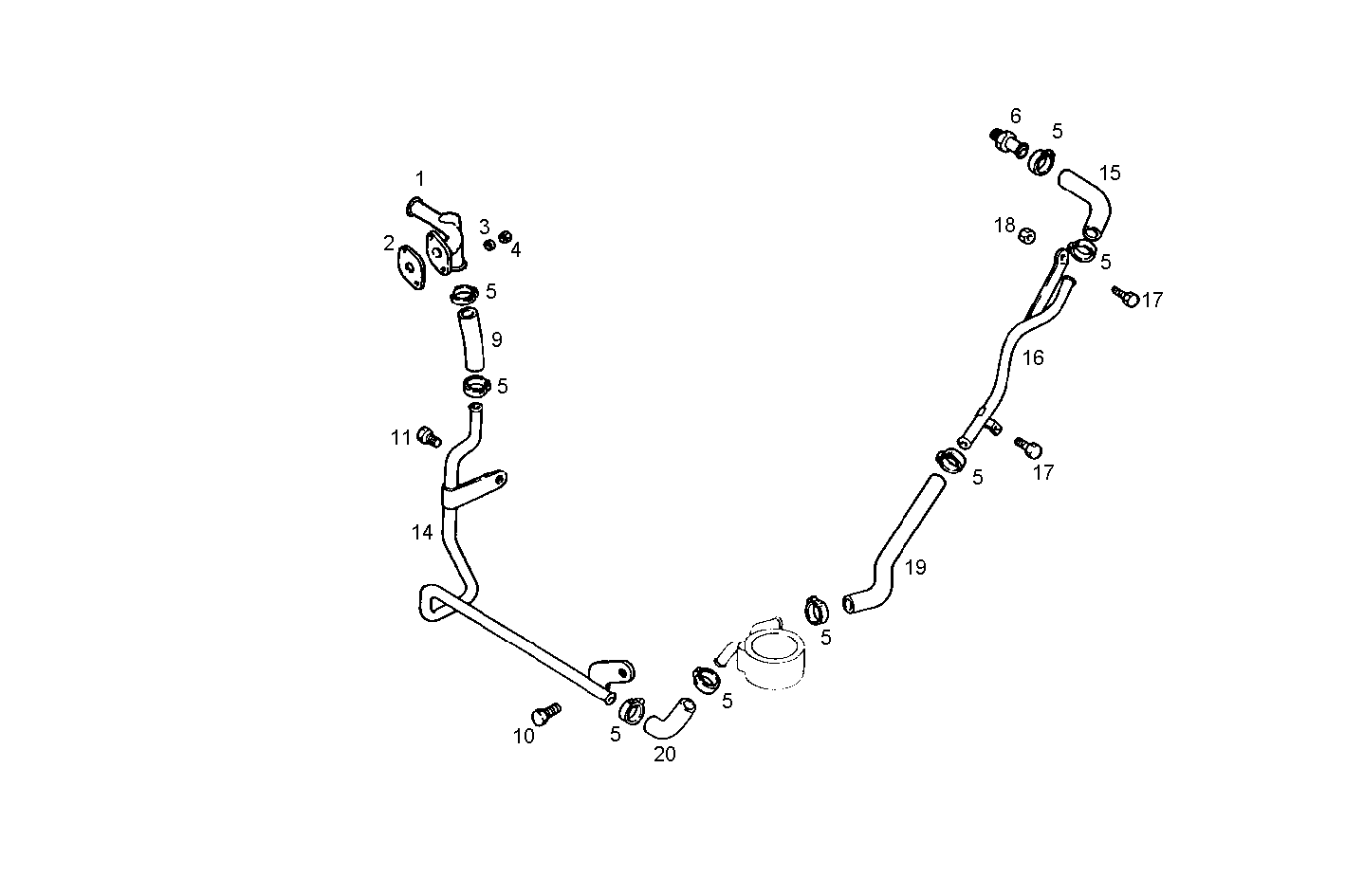

3210.260 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 500334440 | WATER PIPE |
| 2 | 98430478 | FLAT ENGINE GASKET SP=1,6 MM |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 18088392 | CLIP Ø16/25 MM |
| 6 | 99447076 | CONNECTION PIPE |
| 9 | 1904633 | WATER HOSE Ø16 MM |
| 10 | 16282324 | SCREW |
| 11 | 16288424 | HEXAGON BOLT M10X1,25X25 MM |
| 14 | 99463356 | WATER PIPE |
| 15 | 98433754 | RUBBER SLEEVE |
| 16 | 500332068 | WATER PIPE |
| 17 | 16597924 | HEXAGON BOLT M8X14 MM |
| 18 | 17044731 | HEXAGON NUT M8 |
| 19 | 99463357 | WATER HOSE |
| 20 | 99463358 | HEATEXCHANG.HOSE |
