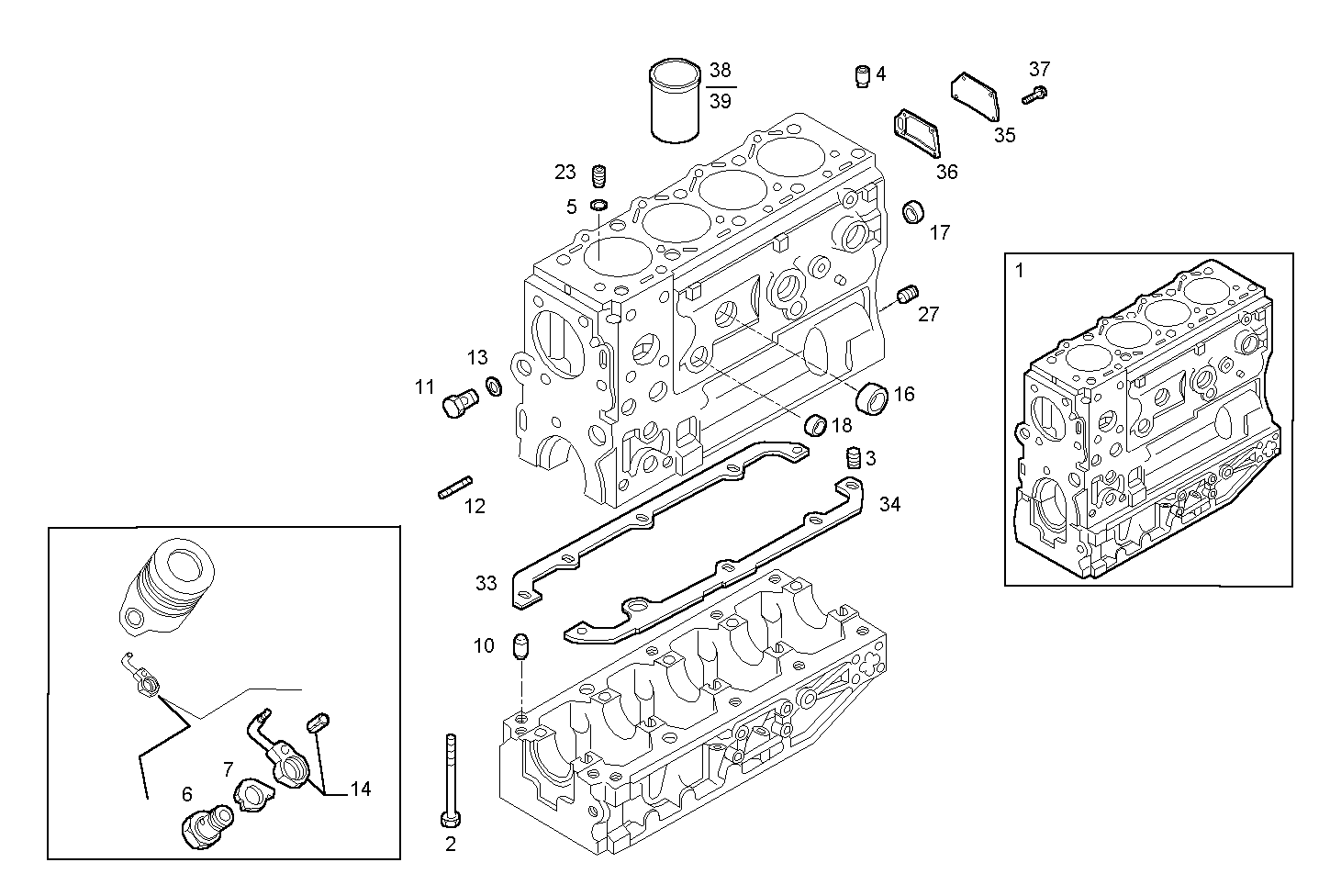

| Item |
Part number |
Description |
|
1 |
500366363 |
CRANKCASE ASSY |
|
2 |
4792169 |
SCREW |
|
3 |
4724790 |
DOWEL PIN |
|
4 |
98418754 |
DOWEL PIN |
|
5 |
17277981 |
O-RING 1,78x9,25 |
|
6 |
7302421 |
SCREW CONNECTOR |
|
7 |
7302007 |
STOP PLATE |
|
10 |
4279387 |
CENTERING RING |
|
11 |
7303457 |
THREADED PLUG |
|
12 |
7301674 |
STUD |
|
13 |
16508360 |
WASHER 18x22x1,5 |
|
14 |
504032242 |
OIL NOZZLE |
|
16 |
14282870 |
LOCK PLUG �40 MM |
|
17 |
7301976 |
PLUG �16 MM |
|
18 |
14328901 |
LOCK PLUG �25 MM |
|
23 |
98418753 |
DOWEL PIN [from 1533081] |
|
27 |
7300019 |
DOWEL PIN |
|
33 |
99432808 |
FLAT ENGINE GASKET RIGHT [from 2122618] |
|
34 |
99432807 |
FLAT ENGINE GASKET LEFT [from 2122618] |
|
35 |
98471295 |
COVER [from 2122618] |
|
36 |
500329970 |
FLAT ENGINE GASKET SP=0,4 MM |
|
37 |
18138324 |
CYLIND-HEAD SCREW M8X1,25X16 MM |
|
38 |
99435938 |
CYLINDER LINER STD. |
|
39 |
99443784 |
CYLINDERLINER +0.2 |
