8140.43C.3941

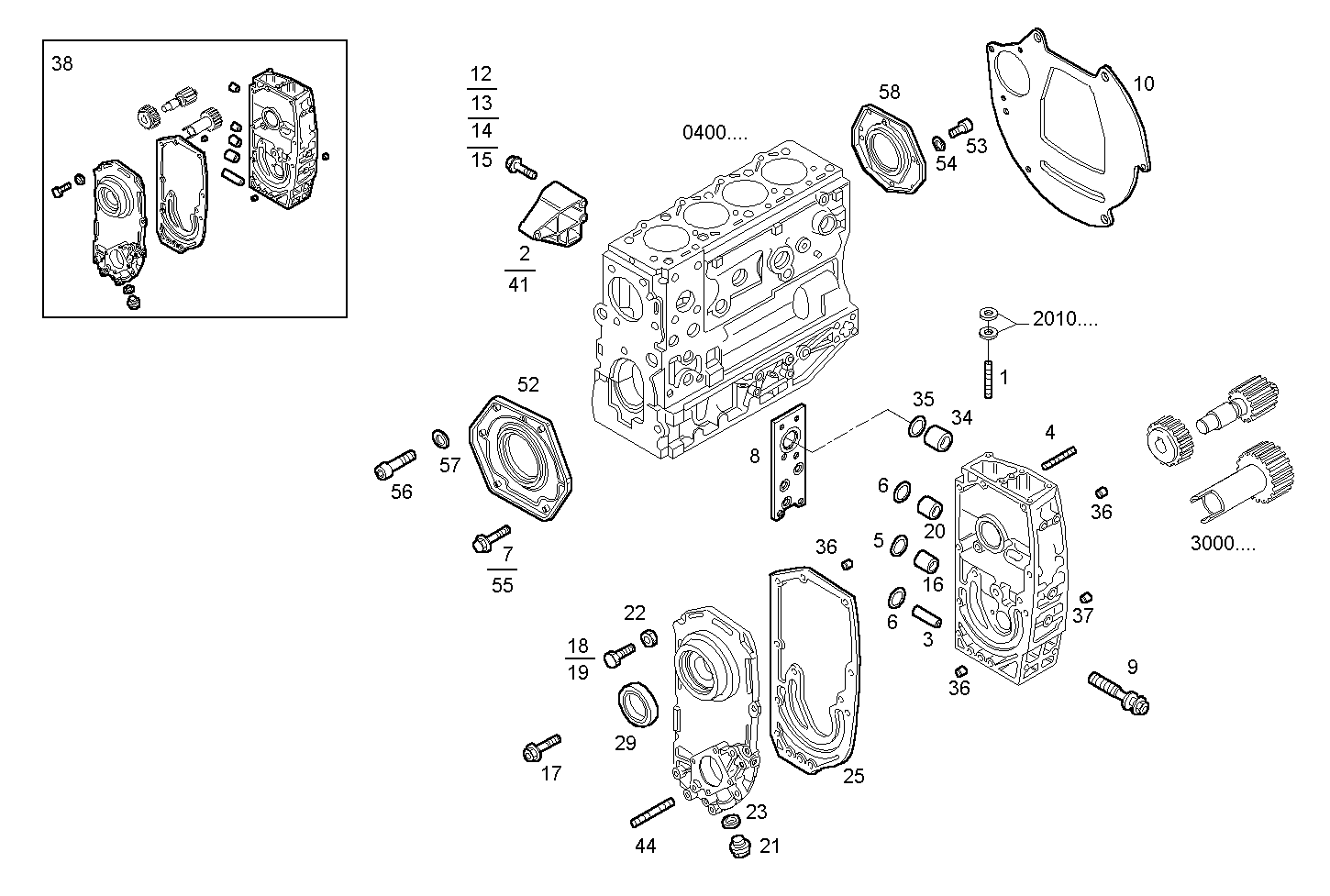

0430.184 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 13544121 STUD M8X16X55 MM
2 98428562 SUPPORT LEFT
3 4710945 BUSH Ø18X30 MM
4 16746824 STUD M8X30 MM (8.8)
5 17282181 O-RING Ø21,8 MM SP=2,6 MM
6 500306196 O-RING Ø17,46 MM SP=2,62 MM
7 18137724 SCREW M6X30 MM
8 500368070 FLAT ENGINE GASKET
9 99458260 SCREW M12X1,5X150 MM
10 98472309 PROTECTION
12 16289324 SCREW
13 10923621 HEXAGON BOLT M10X1,25X35 MM
14 16289224 HEXAGON BOLT M10X1,25X65 MM
15 16288824 HEXAGON BOLT M10X45 MM
16 4279406 BUSH Ø22,3X12 MM
17 504008971 SCREW
18 16606034 HEXAGON BOLT M8X45 MM
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
20 4279407 BUSH Ø18X18 MM
21 4827588 PLUG M20
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
23 10263360 SEAL GASKET 20x26x1
25 500369188 FLAT ENGINE GASKET
29 98454045 SHAFT SEAL
34 98461177 BUSH Ø40X46,2 MM [from 1608990]
35 98461178 O-RING Ø46,04 MM SP=3,53 MM
36 98465476 DOWEL PIN Ø8 MM
37 500325603 DOWEL PIN Ø11 MM
38 504027985 BEARING HOUSING ASSY
41 500342115 BRACKET RIGHT
44 13449524 STUD M10X1,25X15X25
52 500315684 SHAFT SEAL WITH SEAL
53 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
54 17089574 WASHER Ø8X16 MM
55 18137624 HEXAGON BOLT M6X25 MM
56 16689134 SOCKET-HEAD SCREW M6X16 MM
57 17088474 WASHER Ø6X12 MM
58 99468744 SHAFT SEAL WITH SEAL
