8140.43C.3941

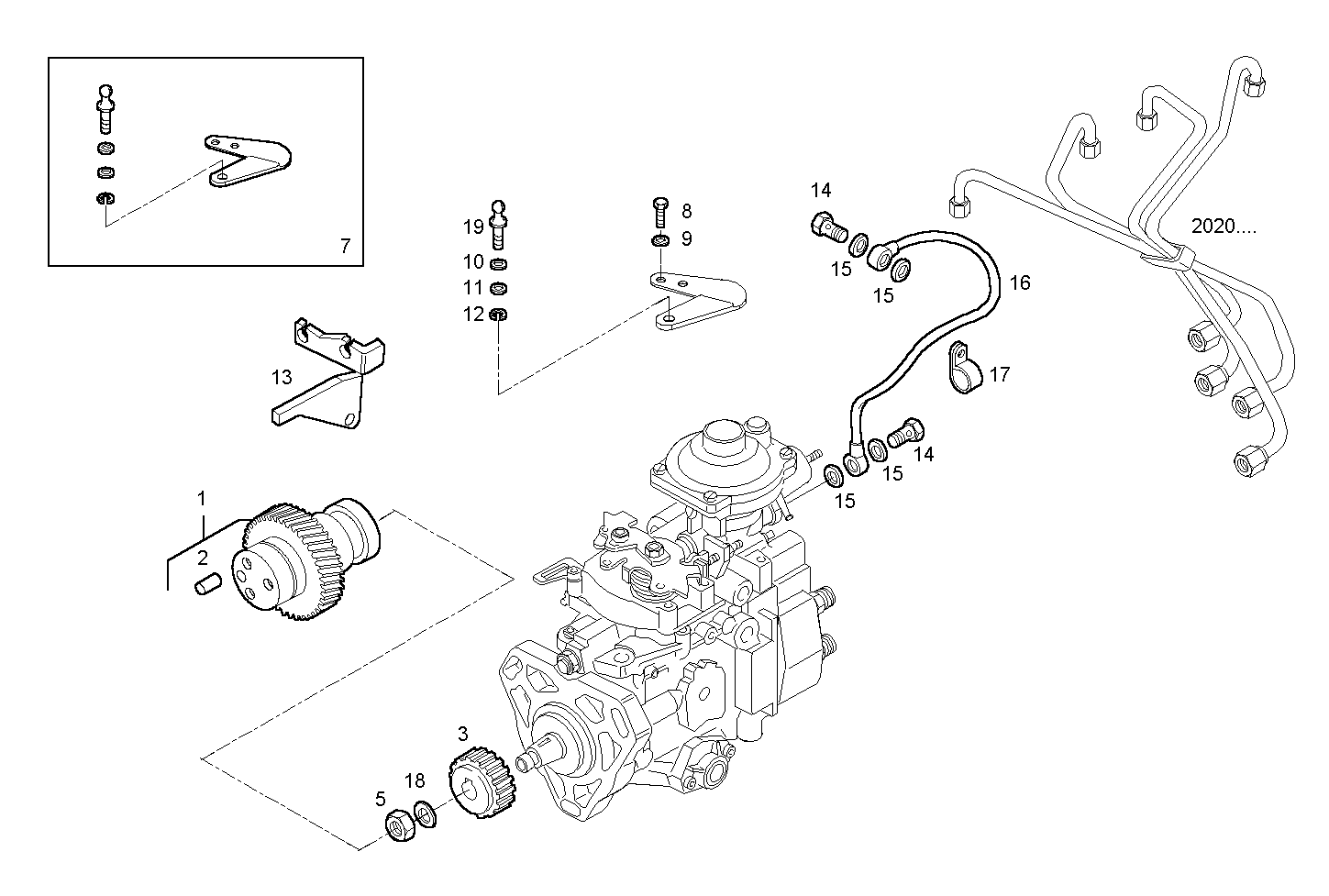

1410.118 INJECTION PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 99483338 | SHAFT ASSY |
| 2 | 10335910 | PARALLEL PIN |
| 3 | 500367360 | INJECT.PUMP BUSH 209° |
| 5 | 17043231 | NUT M14X1,5 |
| 7 | 8590976 | LEVER ASSY [up to 1394975] |
| 8 | 16596924 | HEXAGON BOLT M6X10 MM |
| 9 | 17798174 | SPRING WASHER Ø6,1X11,8 MM |
| 10 | 12544271 | SPRING WASHER Ø6X11 MM |
| 11 | 17094714 | WASHER Ø6,4X12 MM |
| 12 | 17087174 | SPRING LOCKWASHER Ø5 MM |
| 13 | 4834214 | RETAINER |
| 14 | 11904011 | SCREW CONNECTOR |
| 15 | 10262760 | SEAL GASKET Ø8,2 MM |
| 16 | 7302725 | FUEL LINE |
| 17 | 10450090 | PIPE CLIP Ø8 MM |
| 18 | 768389 | CIRCLIP |
| 19 | 93806866 | BALL-END PIN |
