8140.43C.3941

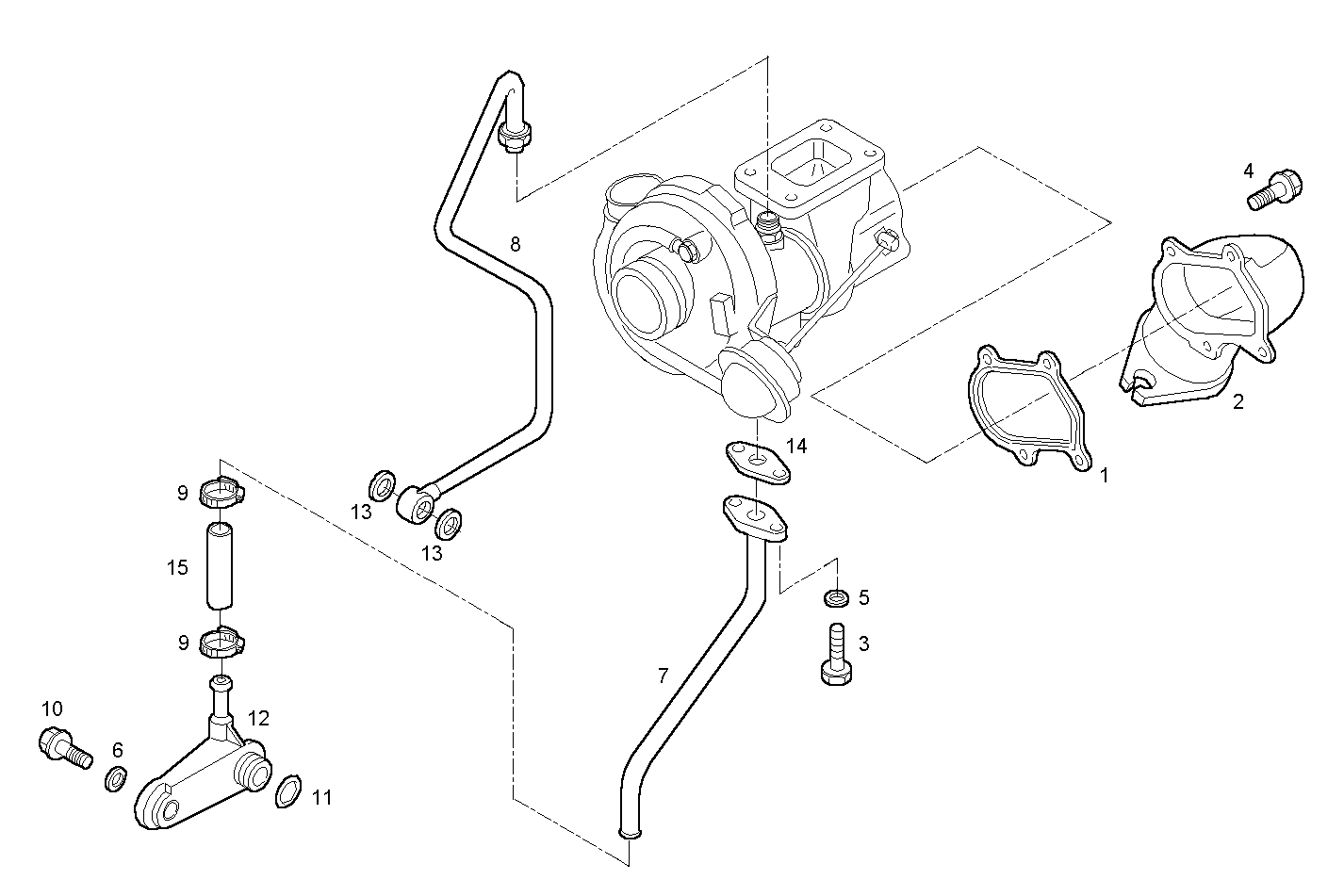

2420.146 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98484659 | FLAT ENGINE GASKET |
| 2 | 99462592 | AIR PIPE/DUCT |
| 3 | 18137824 | HEXAGON BOLT M6X16 MM |
| 4 | 16673834 | HEXAGON BOLT M8X30 MM |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 17095104 | WASHER Ø10X21X2 MM |
| 7 | 99455685 | OIL LINE |
| 8 | 99455930 | OIL LINE |
| 9 | 98463346 | CLIP Ø15-22 MM |
| 10 | 16288424 | HEXAGON BOLT M10X1,25X25 MM |
| 11 | 14462881 | O-RING SP=3,53 MM |
| 12 | 98499352 | FLANGED SOCKET |
| 13 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 14 | 500370706 | FLAT ENGINE GASKET |
| 15 | 500313648 | RUBBER SLEEVE Ø12 MM |
