8140.43C.3941

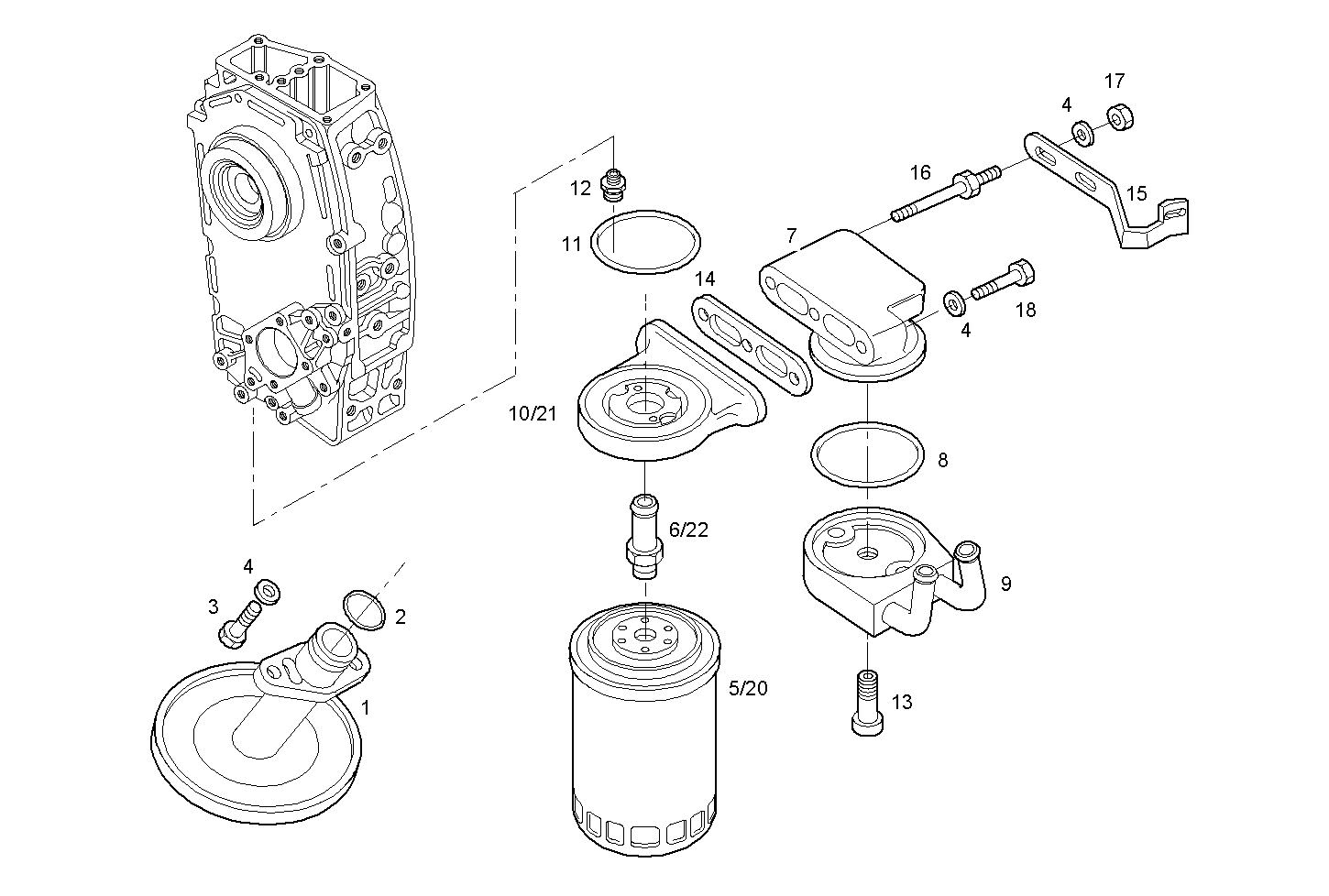

3010.161 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 99482981 SUCTION STRAINER
2 17282281 O-RING 2,62x23,47
3 16605534 HEXAGON BOLT M8X20 MM (10.9)
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 500337673 OIL FILTER CARTRIDGE [UP TO # 3981326]
6 7301914 THREADED UNION M20X1,5 - 3/4"
7 98496655 SUPPORT
8 500343605 O-RING
9 98480768 HEAT EXCHANGER
10 99488292 OIL FILTER SUPPORT [UP TO # 3981326]
11 17290181 O-RING Ø59,92 MM SP=3,53 MM
12 4737557 DOWEL PIN
13 98480769 PIPE SOCKET
14 98425765 FLAT ENGINE GASKET SP=0,8 MM
15 500300395 RETAINER
16 4836699 THREADED PIN
17 17037931 HEXAGON NUT M8X1,25
18 16606024 SCREW M8X45 MM
20 2992188 OIL FILTER CARTRIDGE [FROM # 391327]
21 504102370 OIL FILTER SUPPORT [FROM # 391327]
22 504102371 THREADED UNION M20x1,5 - M22x1,5 [FROM # 391327]
