8140.43F.3800

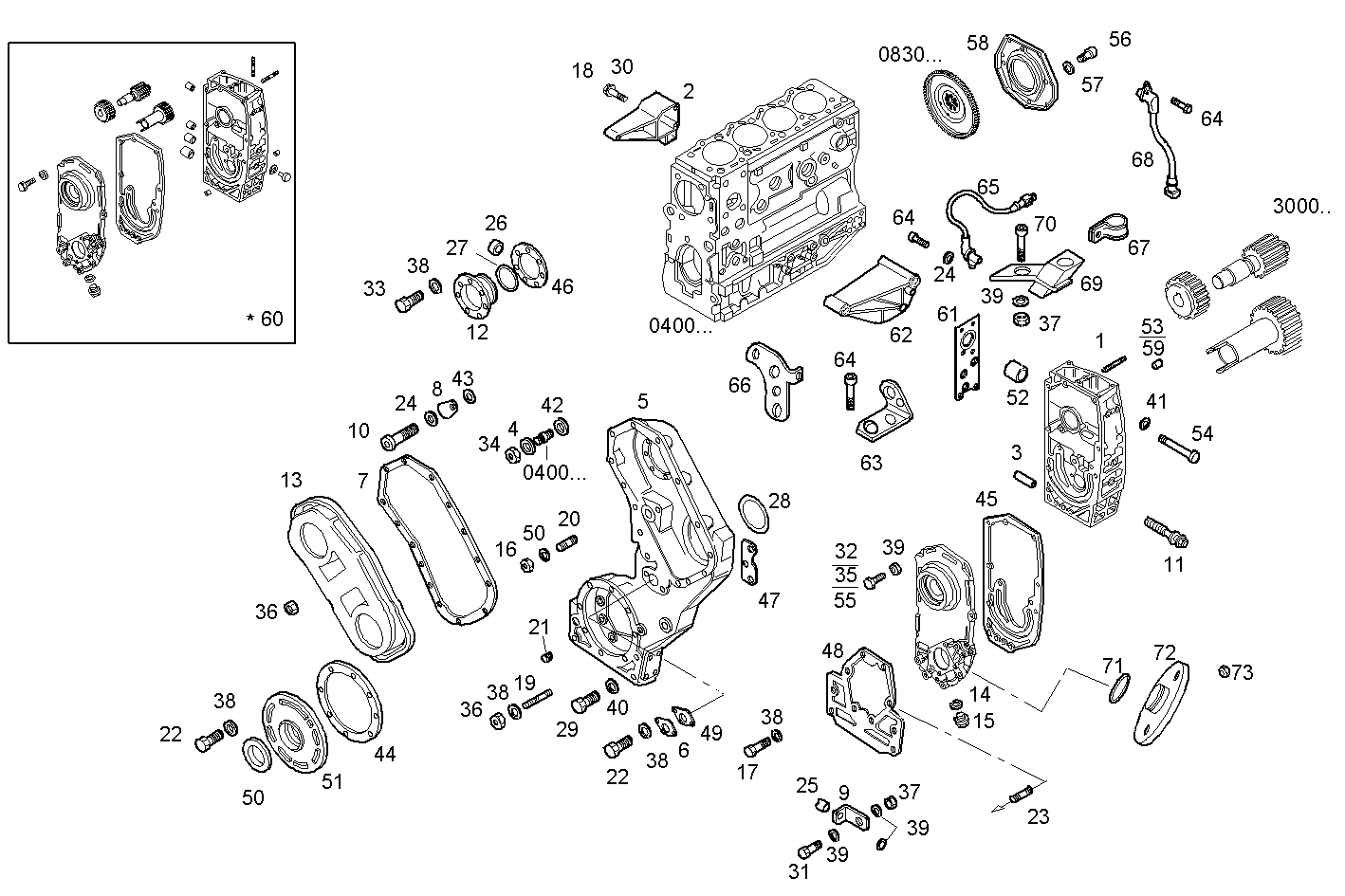

0430.233/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 500346886 STUD M8X1,25
2 500346555 BRACKET LEFT
3 4710945 BUSH Ø18X30 MM
4 4858607 WASHER Ø12X17 MM SP=1,5 MM
5 500357112 TIMINGGEAR HOUSIN
6 7301015 COVER
7 500357916 FLAT ENGINE GASKET
8 99485700 PLASTIC PLUG
9 7301026 FASTENING BRACKET
10 16689124 CYLIND-HEAD SCREW M6X16 MM
11 99458260 SCREW M12X1,5X150 MM
12 99467535 FLANGE ASSY
13 500359433 COVER
14 10263360 SEAL GASKET 20x26x1
15 10305071 LOCK PLUG M20X1,5 [up to ...]
16 16979731 NUT M10X1,25
17 16603924 HEXAGON BOLT M6X30 MM
18 16289134 HEXAGON BOLT M10X1,25X60
19 11500021 STUD M6X9 MM
20 11500821 STUD
21 17849770 THREADED INSERT M8X16 MM
22 16603734 HEXAGON BOLT M6X20 MM
23 13449524 STUD M10X1,25X15X25
24 17094724 WASHER Ø6X12 MM
25 17816314 SPACING BAR Ø8,5X18 MM SP=15 MM
26 14328101 LOCK PLUG Ø8 MM
27 17290281 O-RING Ø63,09 MM SP=3,53 MM
28 14466081 O-RING Ø101,19 MM SP=3,53
29 15971321 HEXAGON BOLT M10X1,25X75 MM
30 16289624 HEXAGON BOLT M10X1,25X100 MM
31 16043324 HEXAGON BOLT M8X18 MM
32 16605934 HEXAGON BOLT M8X40 MM (10.9)
33 10902124 SCREW M6X14 MM
34 16980131 HEXAGON NUT M12
35 16605624 HEXAGON BOLT M8X25 MM (8.8)
36 17044625 HEXAGON NUT M6
37 17037925 HEXAGON NUT M8X1,25
38 17088474 WASHER Ø6X12 MM
39 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
40 17090274 WASHER Ø10X20 MM
41 17094914 WASHER 8x16
42 17281581 O-RING Ø12,37X2,62 MM
43 17282281 O-RING 2,62x23,47
44 98421262 FLAT ENGINE GASKET
45 98421263 FLAT ENGINE GASKET SP=0,5 MM
45 504032241 FLAT ENGINE GASKET
46 98421270 FLAT ENGINE GASKET
47 98421271 FLAT ENGINE GASKET
48 98421284 FLAT ENGINE GASKET
49 98421292 FLAT ENGINE GASKET SP=0,8 MM
50 98454039 SHAFT SEAL
51 99468007 COVER ASSY REAR
52 98461177 BUSH Ø40X46,2 MM [from 1608990]
53 98465476 DOWEL PIN Ø8 MM
54 98468138 HEXAGON BOLT M8X1,25X150 MM
55 16606024 SCREW M8X45 MM
56 16707034 CYLIND-HEAD SCREW M8X16 MM
57 17089574 WASHER Ø8X16 MM
58 504059361 SHAFT SEAL WITH SEAL
59 500325603 DOWEL PIN Ø11 MM
60 504092048 BEARING HOUSING
61 500368070 FLAT ENGINE GASKET
62 500344426 BRACKET RIGHT
63 500344409 FASTENING BRACKET
64 18137825 HEXAGON BOLT M6X16
65 500343018 ELECTRON.TRANSMITT
66 98482778 FASTENING BRACKET
67 17314590 RETAINER Ø6 MM
68 99450797 SENSOR camshaft.
69 99485475 RETAINER
70 16689224 SOCKET-HEAD SCREW M6X20 MM
71 17283881 O-RING Ø48,9 MM
72 4836806 PTO COVER
73 14059411 HEXAGON NUT M10X1,25
