8140.43F.3800

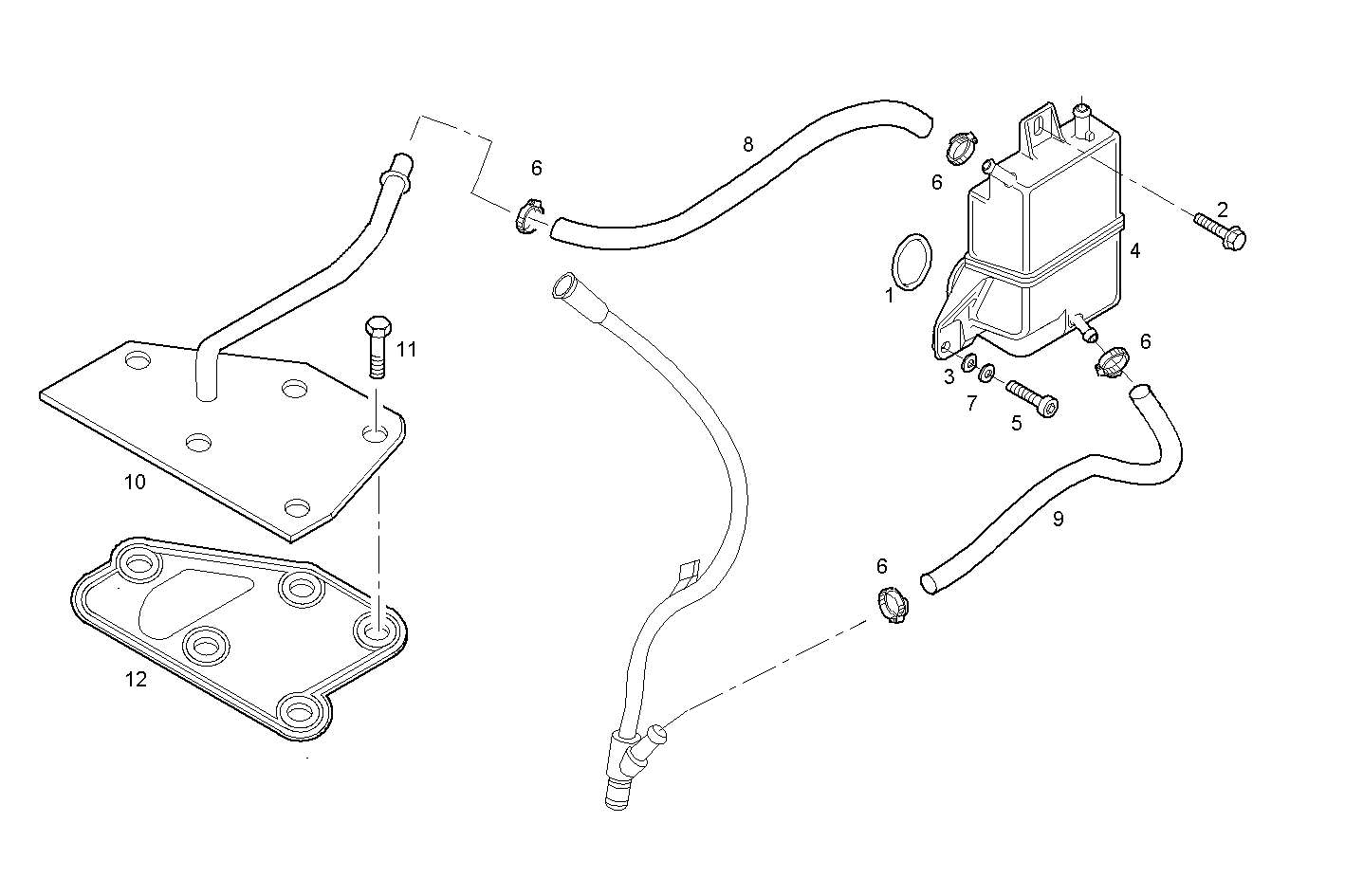

0450.187 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 17289681 O-RING Ø44 MM SP=3,53 MM
2 16585624 HEXAGON BOLT M6X12 MM
3 12646721 WASHER Ø8X20 MM
4 98496418 BREATHER
5 16707134 SOCKET-HEAD SCREW M8X20 MM
6 17764592 CLIP Ø20/32 MM
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 500319931 RUBBER SLEEVE L=550 MM
9 500368999 RUBBER SLEEVE
10 504021380 HOUSING COVER
11 16586325 HEXAGON BOLT M8X20 MM
12 500349423 FLAT ENGINE GASKET SP=0,4 MM
