8140.43F.3800

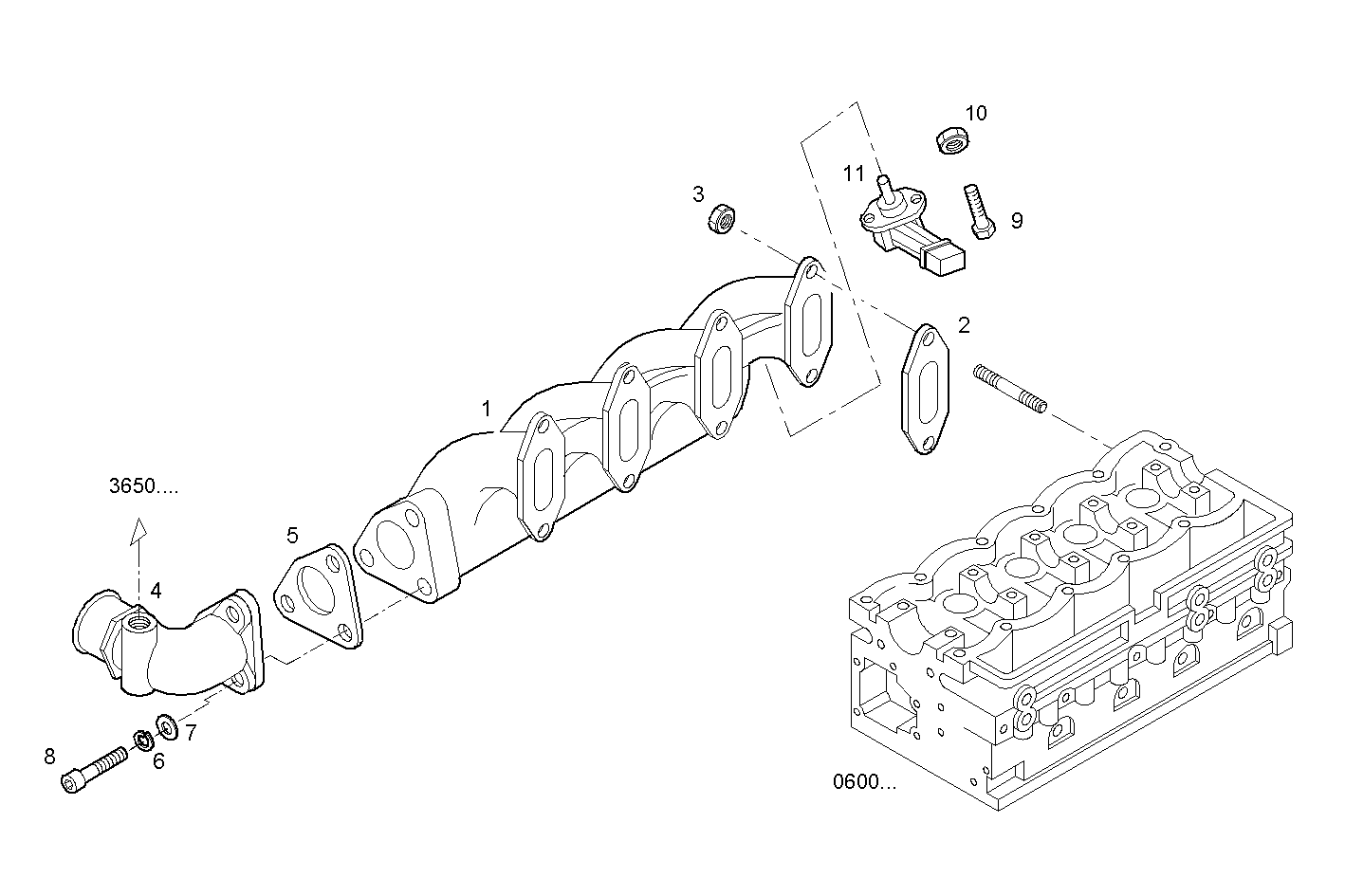

0710.171 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 99473618 | INTAKE ELBOW |
| 2 | 98425767 | INTAKE ELBOW GASK. SP=0,8 MM |
| 3 | 99486343 | HEXAGON NUT M8X1,25 |
| 4 | 98418514 | INTAKE ELBOW |
| 5 | 98426170 | FLAT ENGINE GASKET SP=0,8 MM |
| 6 | 17101534 | SPRING WASHER Ø8 MM |
| 7 | 17094724 | WASHER Ø6X12 MM |
| 8 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
| 9 | 11500324 | STUD M6X9 MM [FROM # 344848] |
| 10 | 17044621 | HEXAGON NUT M6 |
| 11 | 99455421 | SENSOR |
