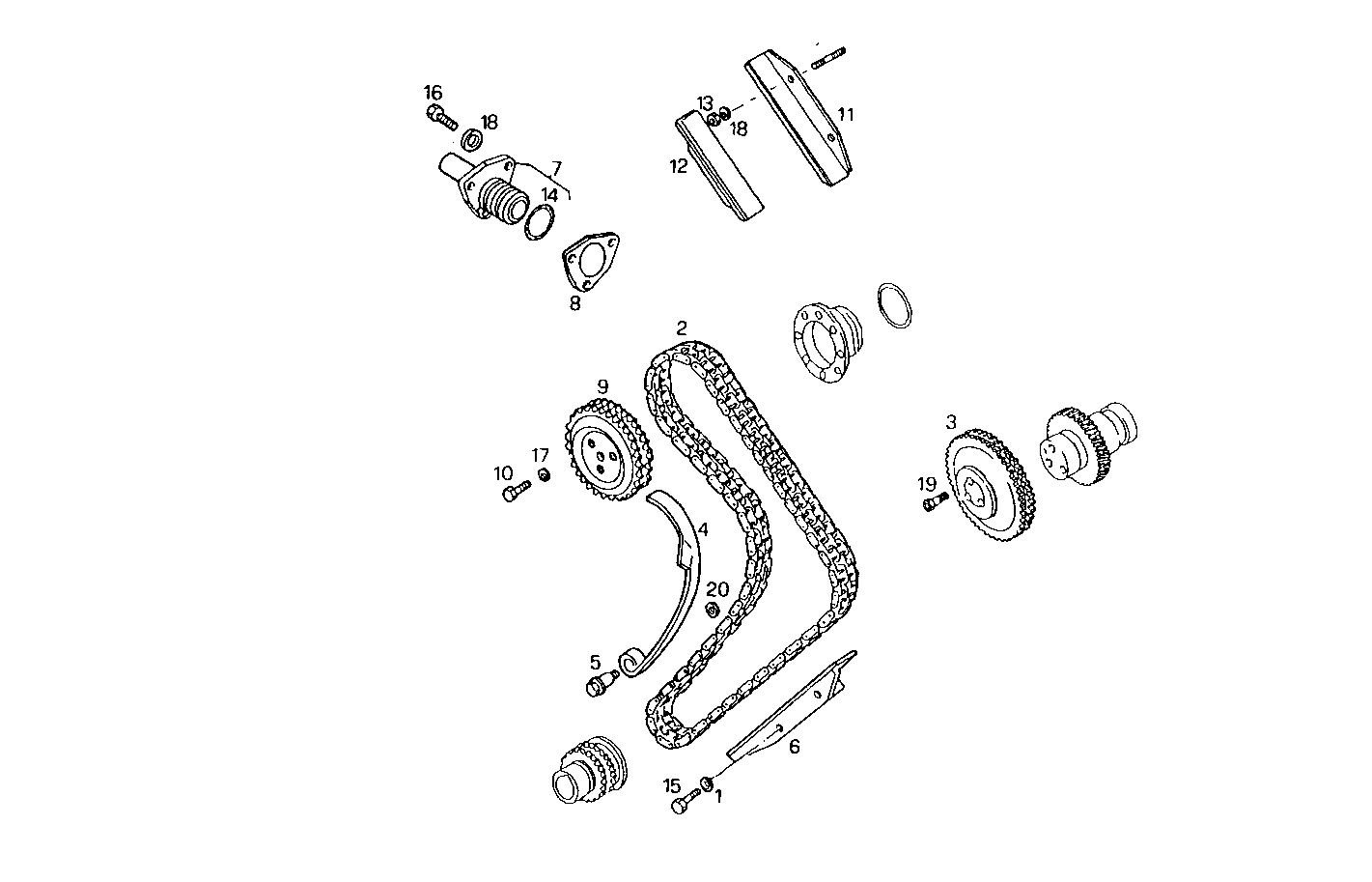

| Item |
Part number |
Description |
|
1 |
4736331 |
WASHER |
|
2 |
4836627 |
TIMING CHAIN |
|
3 |
500358679 |
INJ.PUMP DRIV.GEA |
|
4 |
99457143 |
SLIDING SHOE Ø56,52 MM SP=5,33 MM |
|
5 |
7301034 |
PIN |
|
6 |
7301039 |
SLIDING SHOE BOTTOM |
|
7 |
4859435 |
BELT TENSIONER ASSY |
|
8 |
98421301 |
FLAT ENGINE GASKET SP=0,8 MM |
|
9 |
500359647 |
TIMING INTERM.GEA |
|
10 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
11 |
7302381 |
SLIDING SHOE OUTER TOP |
|
12 |
7302382 |
SLIDING SHOE INNER TOP |
|
13 |
17037821 |
HEXAGON NUT M6X1 |
|
14 |
14453281 |
O-RING |
|
15 |
16603734 |
HEXAGON BOLT M6X20 MM |
|
16 |
16597224 |
HEXAGON BOLT M6X18 MM |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
18 |
17088474 |
WASHER Ø6X12 MM |
|
19 |
500372179 |
LOCKING SCREW M12X1,25X30 MM |
|
20 |
12646721 |
WASHER Ø8X20 MM |
