8140.43F.3800

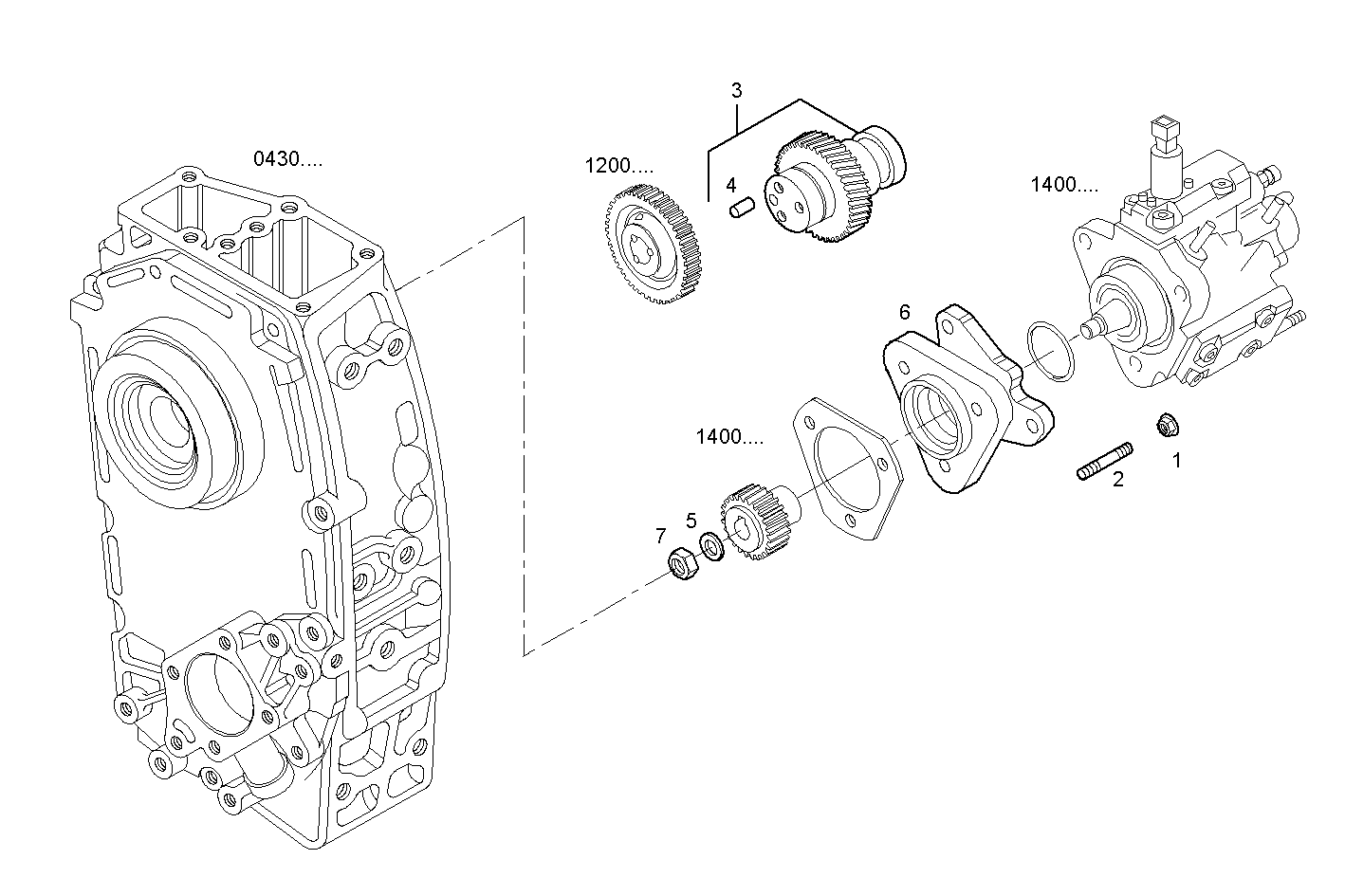

1410.131 INJECTION PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 99486343 | HEXAGON NUT M8X1,25 |
| 2 | 16746824 | STUD M8X30 MM (8.8) |
| 3 | 99483335 | INJECT.PUMP SPIND ASSY |
| 4 | 10335910 | PARALLEL PIN |
| 5 | 768389 | CIRCLIP |
| 6 | 500354490 | SUPPORT |
| 7 | 7303345 | NUT [up to 1992414] |
