8140.43F.3800

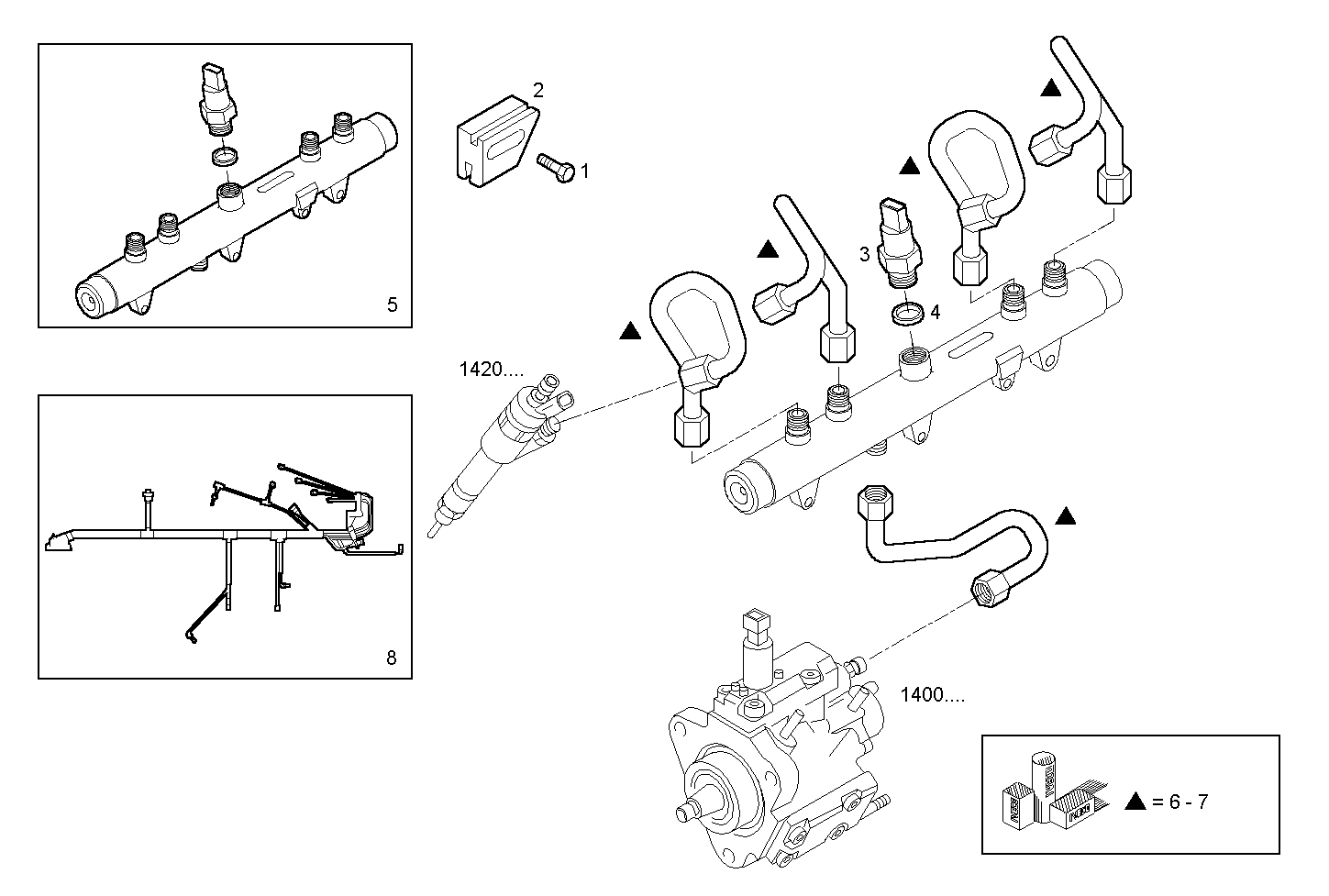

2020.145/01 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 16596924 | HEXAGON BOLT M6X10 MM |
| 2 | 500315270 | CHOCK |
| 3 | 500372234 | SENSOR |
| 4 | 500372236 | WASHER |
| 5 | 500394220 | HYDRAULIC CYLINDER ASSY [UP TO # 3887457] |
| 6 | 500397941 | INJECTION LINE SET ALTERNATIVE USE [UP TO # 3887457] |
| 7 | 504028984 | INJECTION LINE SET ALTERNATIVE USE [up to # 3887457] |
| 8 | 504079865 | SET OF WIRING |
