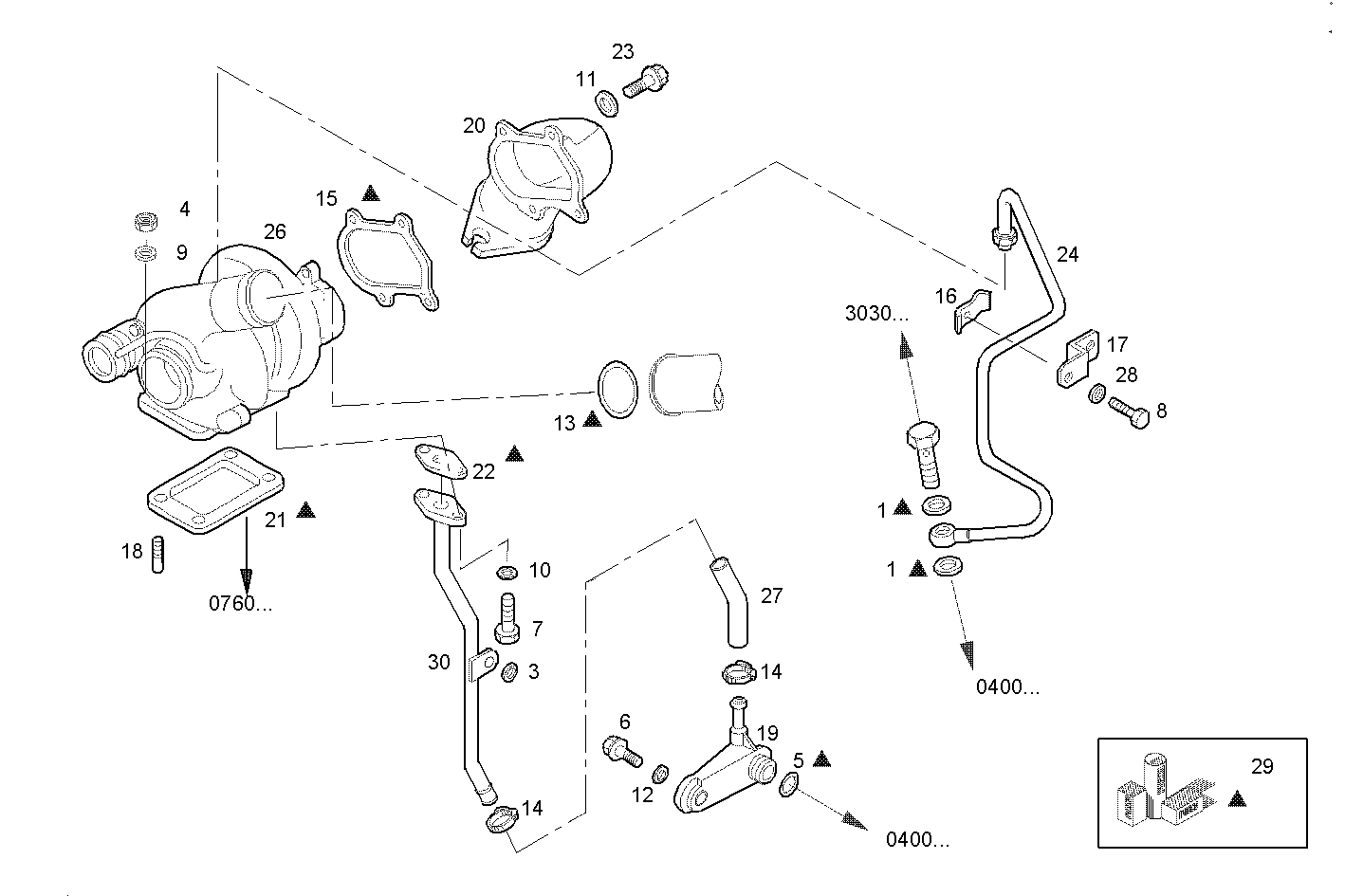

| Item |
Part number |
Description |
|
1 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
3 |
7303601 |
SPACING BAR SP=10,00 MM |
|
4 |
500322677 |
HEXAGON NUT M8 |
|
5 |
14462881 |
O-RING SP=3,53 MM |
|
6 |
16288424 |
HEXAGON BOLT M10X1,25X25 MM |
|
7 |
16585724 |
HEXAGON BOLT M6X16 MM |
|
8 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
9 |
17094914 |
WASHER 8x16 |
|
10 |
17088474 |
WASHER Ø6X12 MM |
|
11 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
12 |
17097124 |
WASHER 10x21 |
|
13 |
17289781 |
O-RING Ø47,22 MM SP=3,55 MM |
|
14 |
98463346 |
CLIP Ø15-22 MM |
|
15 |
98484659 |
FLAT ENGINE GASKET |
|
16 |
98485520 |
FASTENING BRACKET |
|
17 |
98485521 |
FASTENING BRACKET M6X20 MM |
|
18 |
98492637 |
STUD M8X12X27 MM |
|
19 |
98499352 |
FLANGED SOCKET |
|
20 |
99436004 |
AIR PIPE/DUCT L=680 MM |
|
21 |
99436990 |
FLAT ENGINE GASKET |
|
22 |
500370706 |
FLAT ENGINE GASKET |
|
23 |
99441800 |
HEXAGON BOLT M8X1,25X38 MM |
|
24 |
99443853 |
OIL LINE |
|
26 |
500375996 |
TURBOCHARGER |
|
27 |
500358061 |
RUBBER SLEEVE |
|
28 |
17094724 |
WASHER Ø6X12 MM |
|
29 |
99477121 |
KIT-SEAL.GASKETS ASSY |
|
30 |
99470360 |
OIL LINE |
