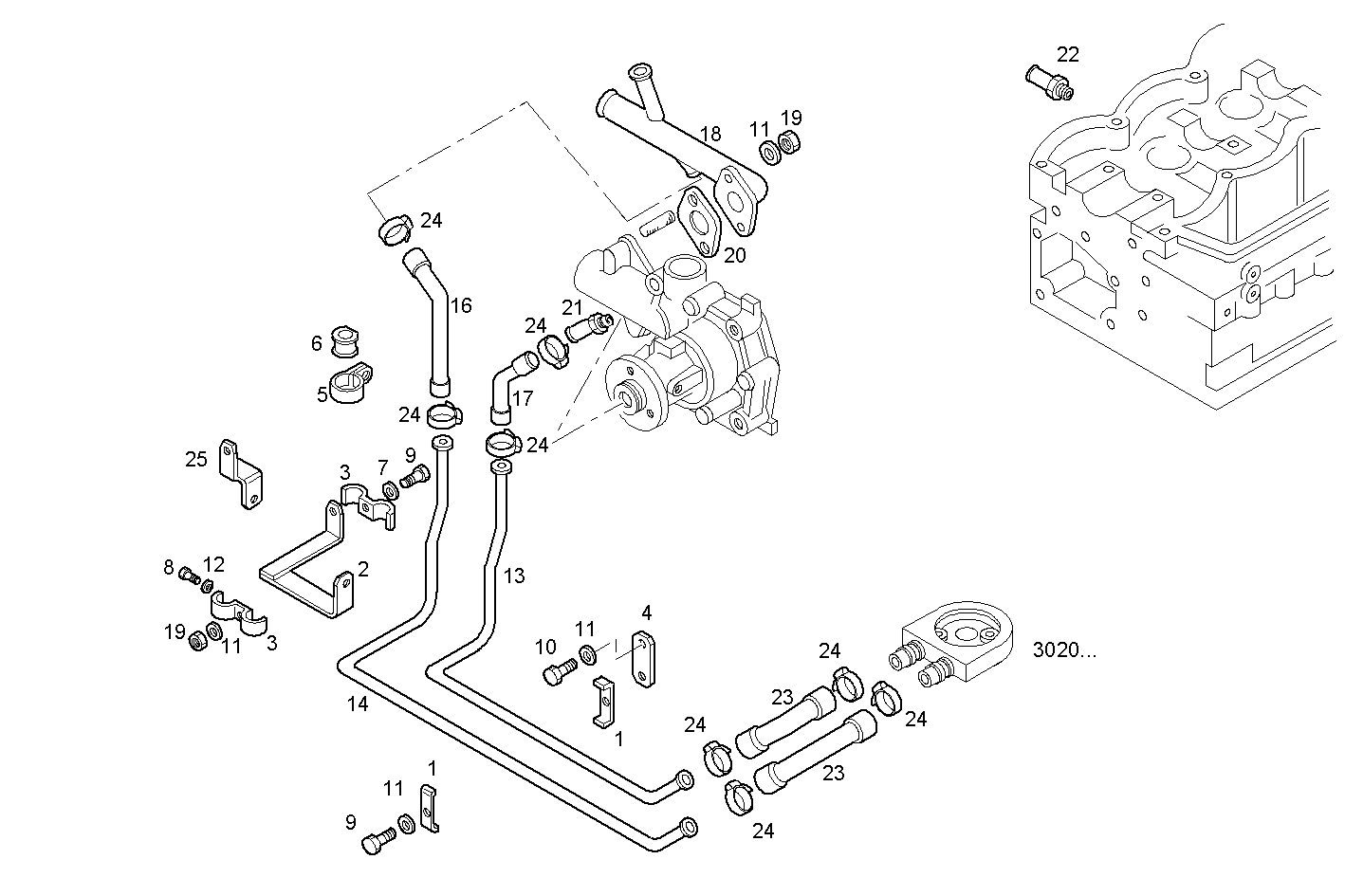

| Item |
Part number |
Description |
|
1 |
4837062 |
CLIP |
|
2 |
98457736 |
RETAINER |
|
3 |
4837065 |
CLIP |
|
4 |
4837072 |
RETAINER |
|
5 |
4837087 |
FASTENING BRACKET |
|
6 |
4837090 |
RUBBER PAD |
|
7 |
14496501 |
WASHER Ø8,5 MM |
|
8 |
15540321 |
HEXAGON BOLT M12X1,25X25 MM |
|
9 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
10 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
11 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
12 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
13 |
98443321 |
WATER PIPE |
|
14 |
98443320 |
WATER PIPE |
|
16 |
98443337 |
WATER HOSE |
|
17 |
1904633 |
WATER HOSE Ø16 MM |
|
18 |
98443322 |
WATER PIPE |
|
19 |
17037931 |
HEXAGON NUT M8X1,25 |
|
20 |
98430478 |
FLAT ENGINE GASKET SP=1,6 MM |
|
21 |
98433822 |
CONNECTION PIPE |
|
22 |
99447076 |
CONNECTION PIPE |
|
23 |
98443339 |
WATER HOSE |
|
24 |
98463347 |
CLIP Ø18,5-25 MM |
|
25 |
98443332 |
RETAINER |
