8140.43F.3800

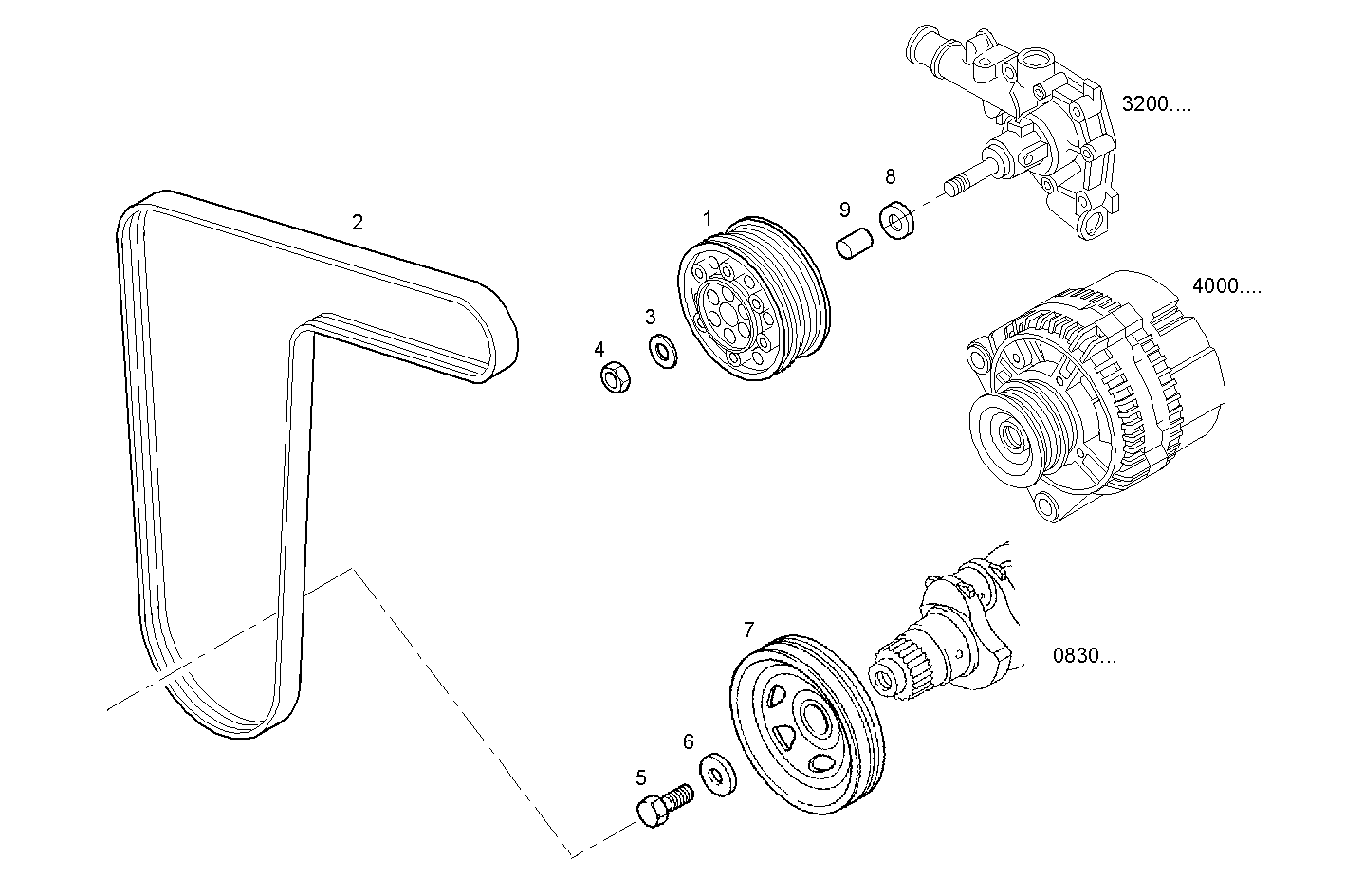

3240.148 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 504021384 | WATER PUMP PULLEY |
| 2 | 500368902 | WATER PUMP BELT |
| 3 | 98437565 | WASHER Ø25 MM |
| 4 | 500333918 | HEXAGON NUT M14X1,5 |
| 5 | 98432123 | SCREW |
| 6 | 98429488 | SPACING BAR |
| 7 | 500332296 | CRANKSHAFT PULLEY |
| 8 | 504021385 | SPACING BAR |
| 9 | 504026317 | SPACING BAR |
