8140.43F.3800

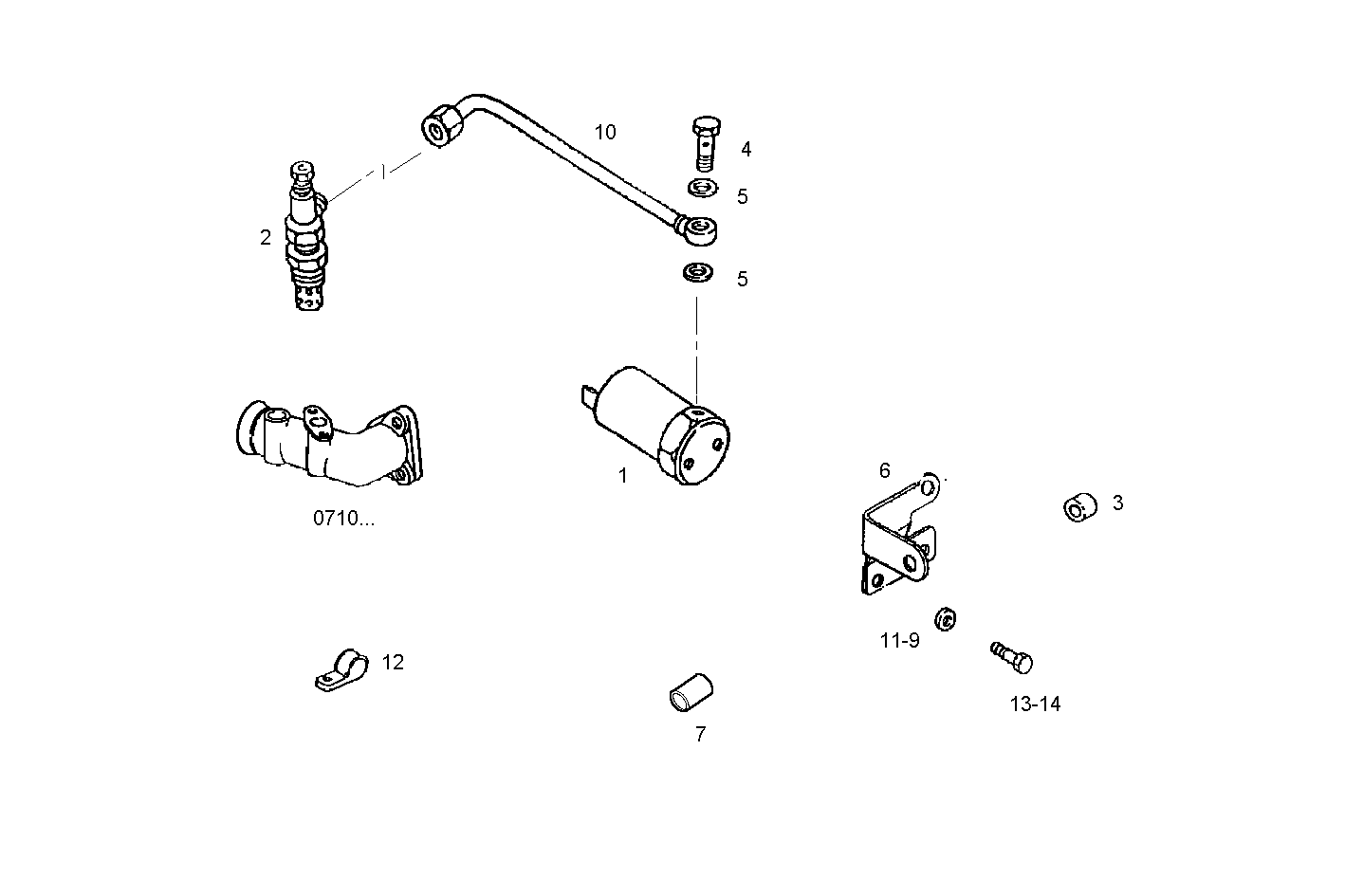

3650.039 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 98494898 | ELECT.V.VE.PREHEAT |
| 2 | 99450392 | THERMO-STARTER |
| 3 | 4853864 | SPACING BAR |
| 4 | 7303136 | SCREW CONNECTOR |
| 5 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 6 | 98451780 | RETAINER |
| 7 | 7300085 | SPACER BUSH |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 98437434 | FUEL LINE |
| 11 | 11181574 | WASHER Ø5X11 MM SP=0,9 MM |
| 12 | 17314590 | RETAINER Ø6 MM |
| 13 | 16602024 | SCREW M5X12 MM (8.8) |
| 14 | 16603524 | SCREW M6X12 MM (8.8) |
