8140.43F.3800

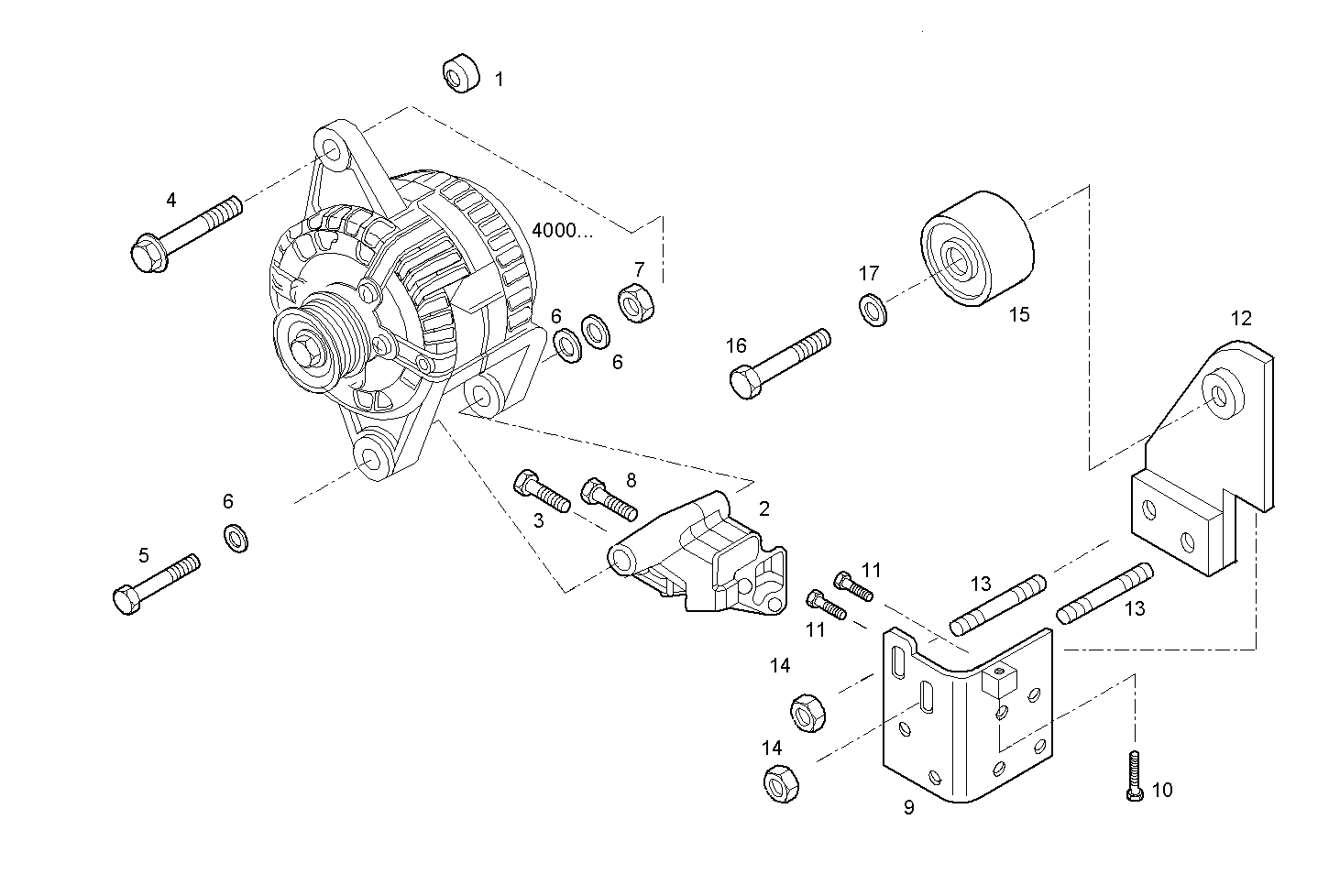

4010.119 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 504026316 SPACING BAR
2 504021386 GENERATOR SUPPORT
3 16289524 HEXAGON BOLT
4 16288734 HEXAGON BOLT M10X1,25X40 MM
5 15972424 HEXAGON BOLT M10X1,25X130 MM
6 17097124 WASHER 10x21
7 14059421 HEXAGON NUT M10X1,25
8 16289024 SCREW M10X50
9 504021387 SUPPORT
10 13791321 SCREW
11 16288424 HEXAGON BOLT M10X1,25X25 MM
12 504021388 BELT TENSIONER
13 16729424 STUD M8X1,25X25
14 17044721 HEXAGON NUT M8X1,25
15 98448218 DRIVE BEARING
16 16707134 SOCKET-HEAD SCREW M8X20 MM
17 1107283 SPRING WASHER Ø8,4X15 MM
