8140.43P.3941

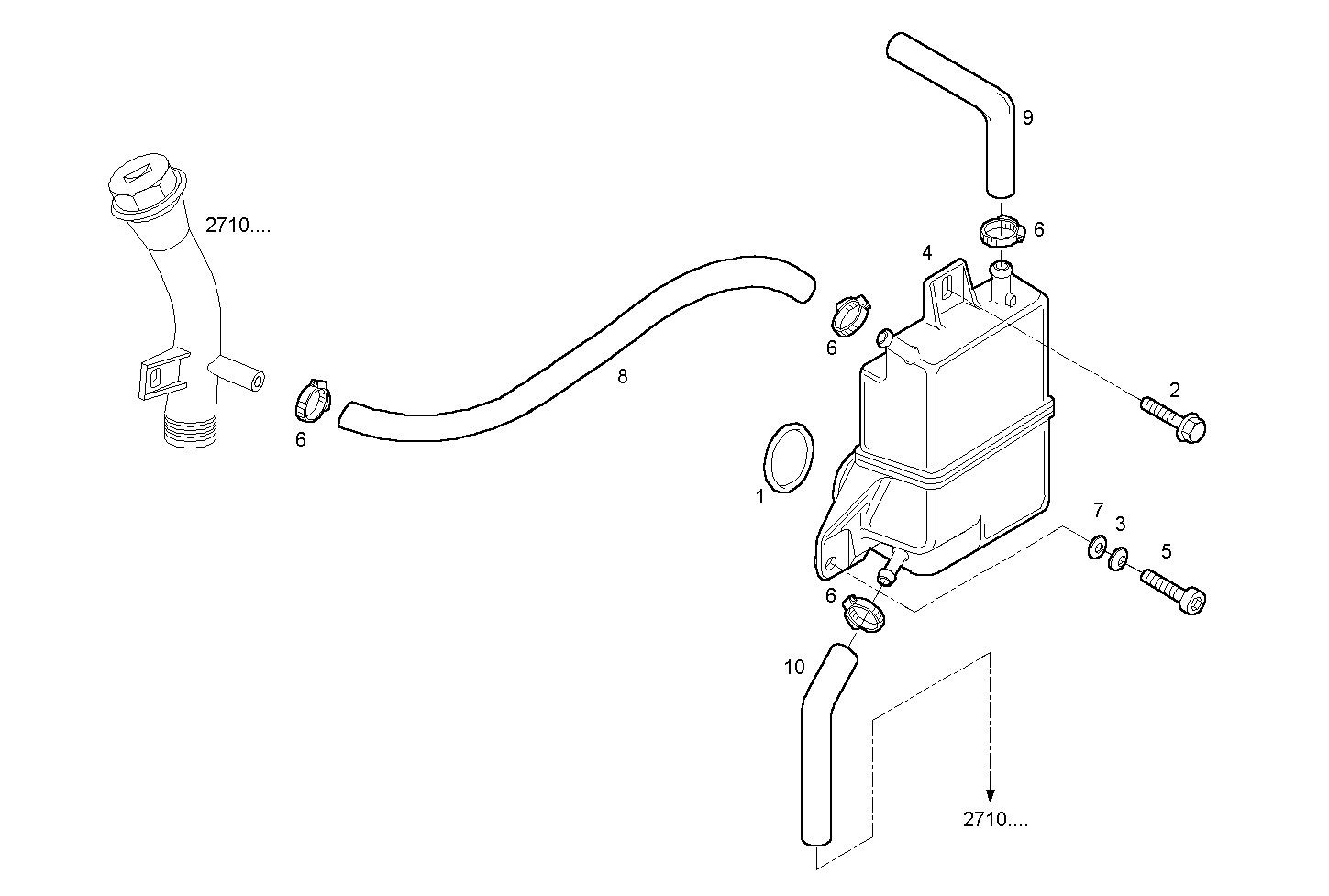

0450.177 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
| 2 | 16585624 | HEXAGON BOLT M6X12 MM |
| 3 | 12646721 | WASHER Ø8X20 MM |
| 4 | 98478412 | BREATHER |
| 5 | 16707134 | SOCKET-HEAD SCREW M8X20 MM |
| 6 | 13000390 | CLIP |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 500319931 | RUBBER SLEEVE L=550 MM |
| 9 | 500334744 | RUBBER SLEEVE |
| 10 | 500336538 | RUBBER SLEEVE |
