8140.43P.3945

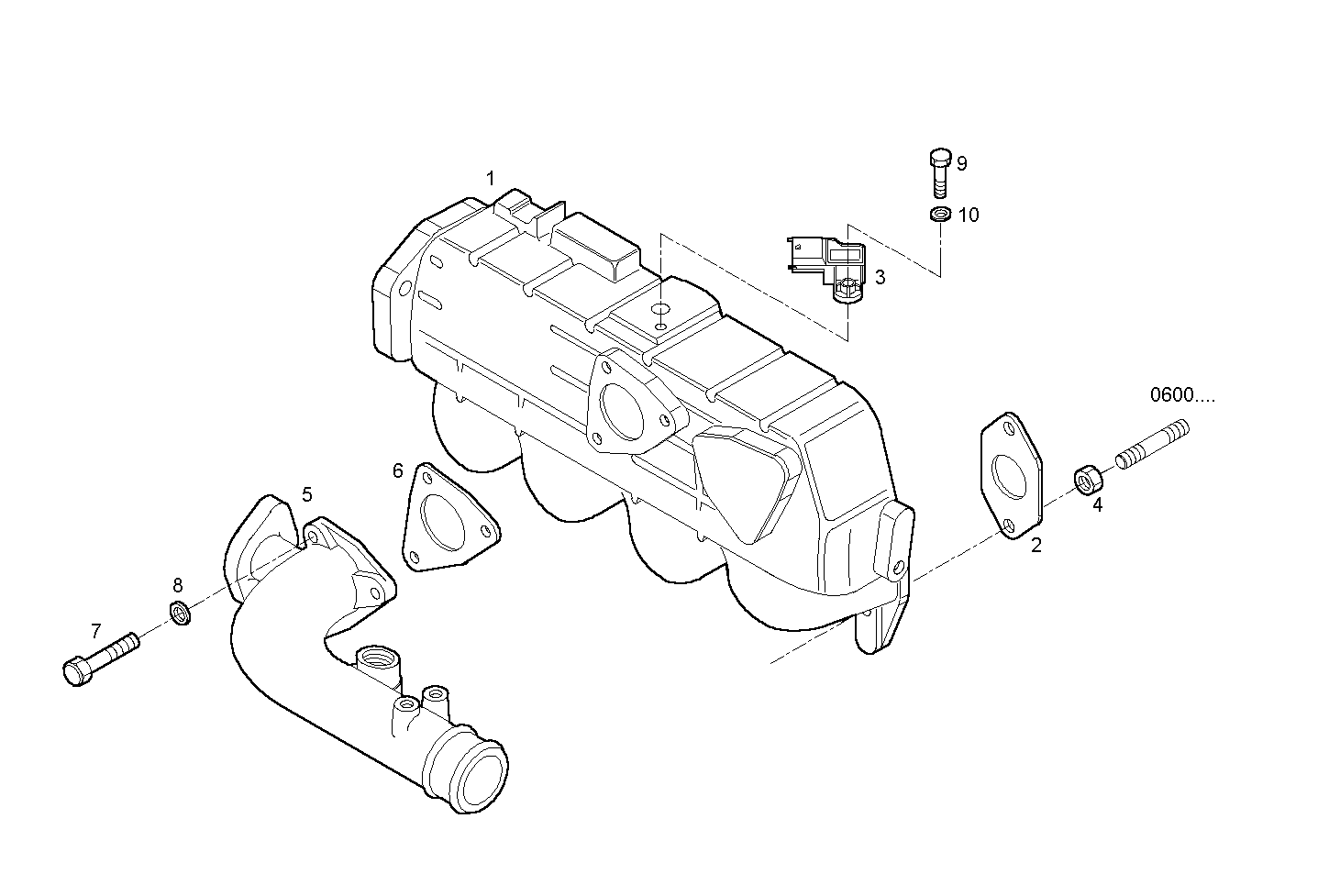

0710.148 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 504054724 | INTAKE ELBOW |
| 2 | 98425767 | INTAKE ELBOW GASK. SP=0,8 MM |
| 3 | 500351377 | SENSOR |
| 4 | 99486343 | HEXAGON NUT M8X1,25 |
| 5 | 500358268 | INTAKE ELBOW |
| 6 | 98421281 | GASKET |
| 7 | 16605824 | HEXAGON BOLT M8X35 MM |
| 8 | 17094924 | WASHER Ø8X16 MM |
| 9 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 10 | 17094714 | WASHER Ø6,4X12 MM |
