8140.43P.3945

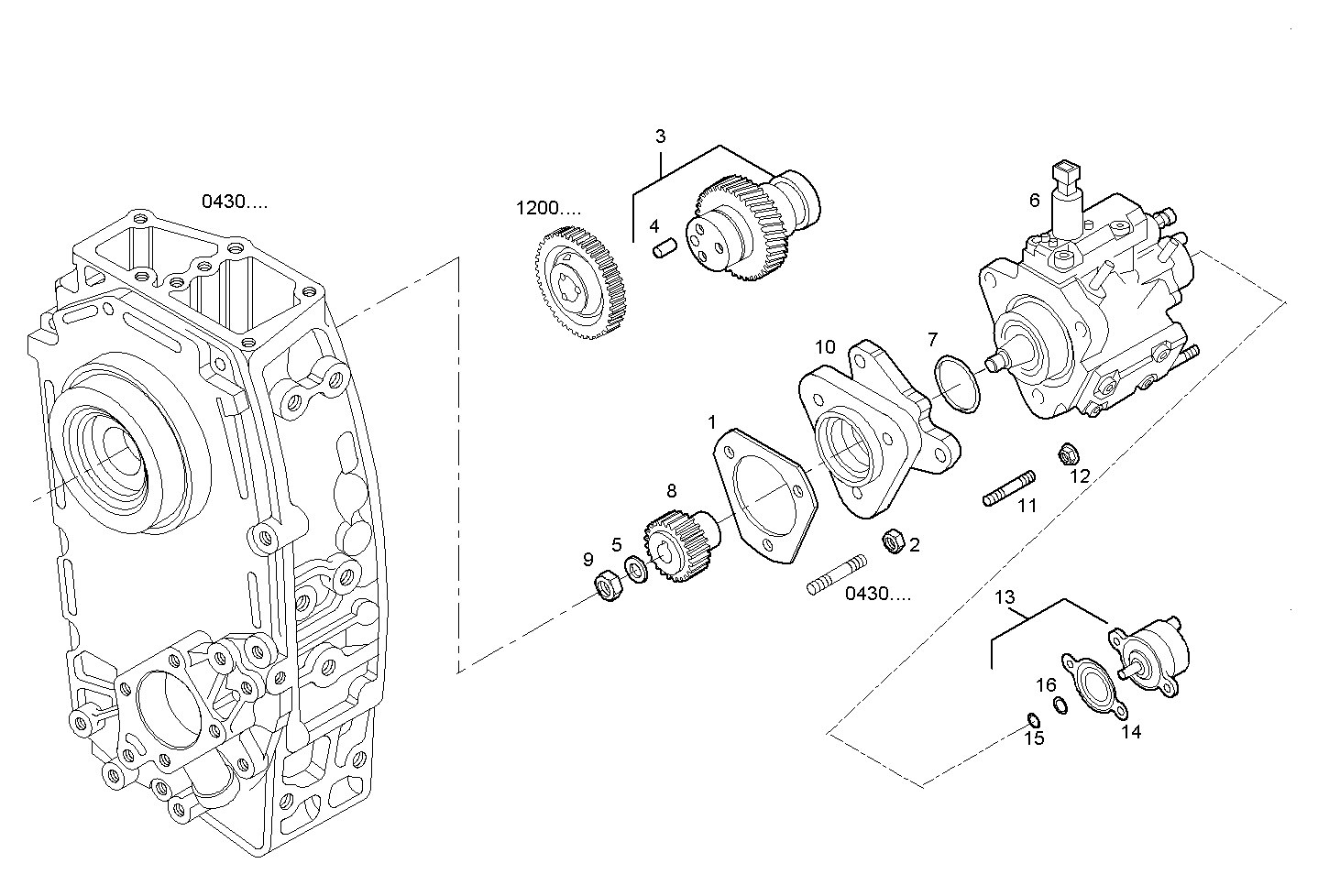

1400.315 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 4851923 | FLAT ENGINE GASKET |
| 2 | 500368408 | NUT M8X1,25 |
| 3 | 99483338 | SHAFT ASSY |
| 4 | 10335910 | PARALLEL PIN |
| 5 | 768389 | CIRCLIP |
| 6 | 99483254 | HIGH PRESSURE PUMP |
| 7 | 500319674 | O-RING Ø45 MM |
| 8 | 99487290 | INJECT.PUMP BUSH 228° |
| 9 | 7303345 | NUT [up to 1992414] |
| 10 | 500354490 | SUPPORT |
| 11 | 16746824 | STUD M8X30 MM (8.8) |
| 12 | 99486343 | HEXAGON NUT M8X1,25 |
| 13 | 42538165 | GOVERNOR/REGULATOR |
| 14 | 42538467 | FLAT ENGINE GASKET |
| 15 | 42541075 | O-RING |
| 16 | 42541074 | GASKET |
