8140.43P.3945

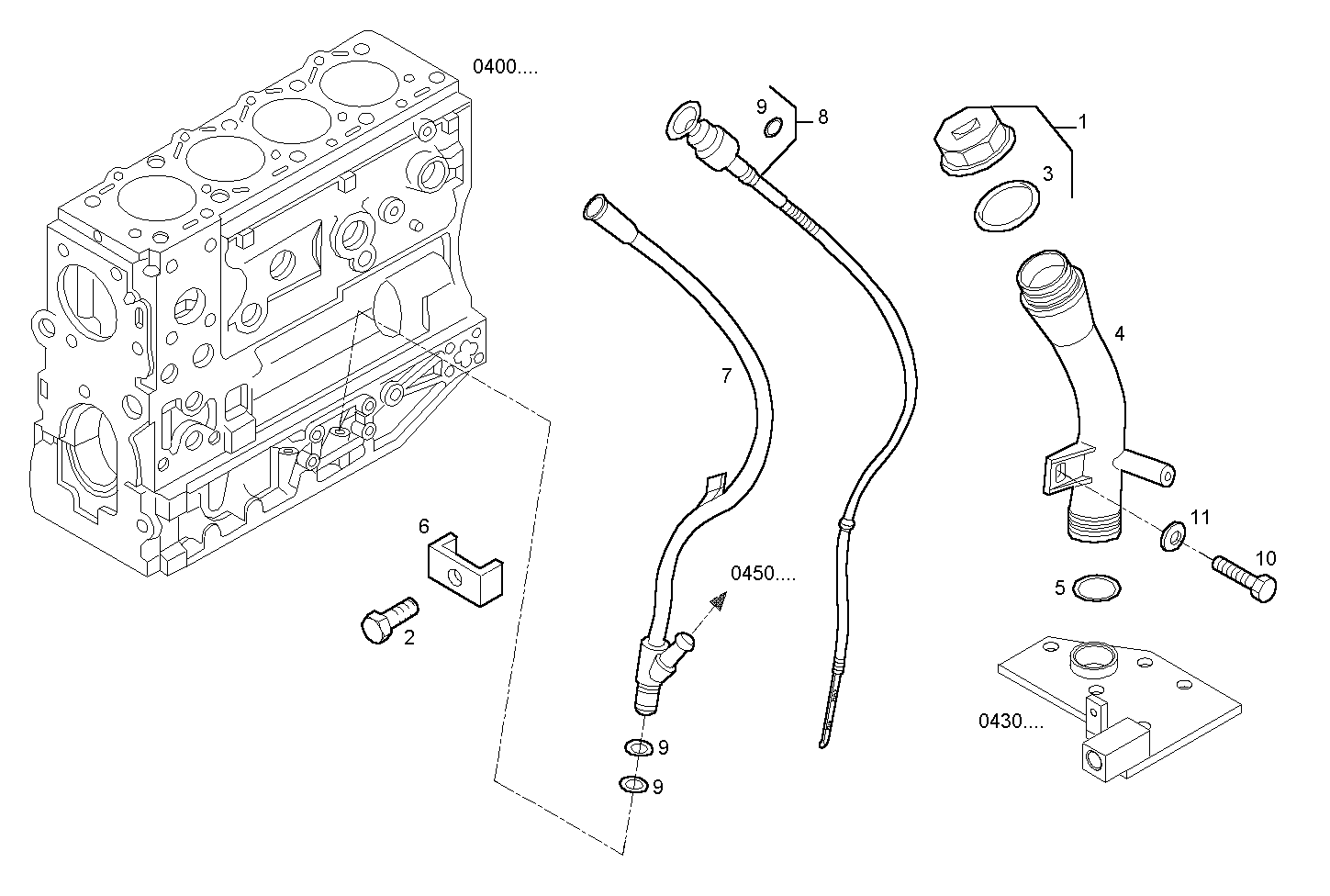

2710.117 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 500301568 | OIL FILLER PLUG ASSY |
| 2 | 16673734 | HEXAGON BOLT M8X25 MM |
| 3 | 17295480 | O-RING 5,33x37,46 |
| 4 | 99470999 | OIL FILLER PIPE |
| 5 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
| 6 | 4716870 | RETAINER |
| 7 | 504055276 | OIL LEVEL TUBE |
| 8 | 504055274 | OIL DIPSTICK |
| 9 | 17277981 | O-RING 1,78x9,25 |
| 10 | 16585624 | HEXAGON BOLT M6X12 MM |
| 11 | 17094714 | WASHER Ø6,4X12 MM |
