8140.43P.3945

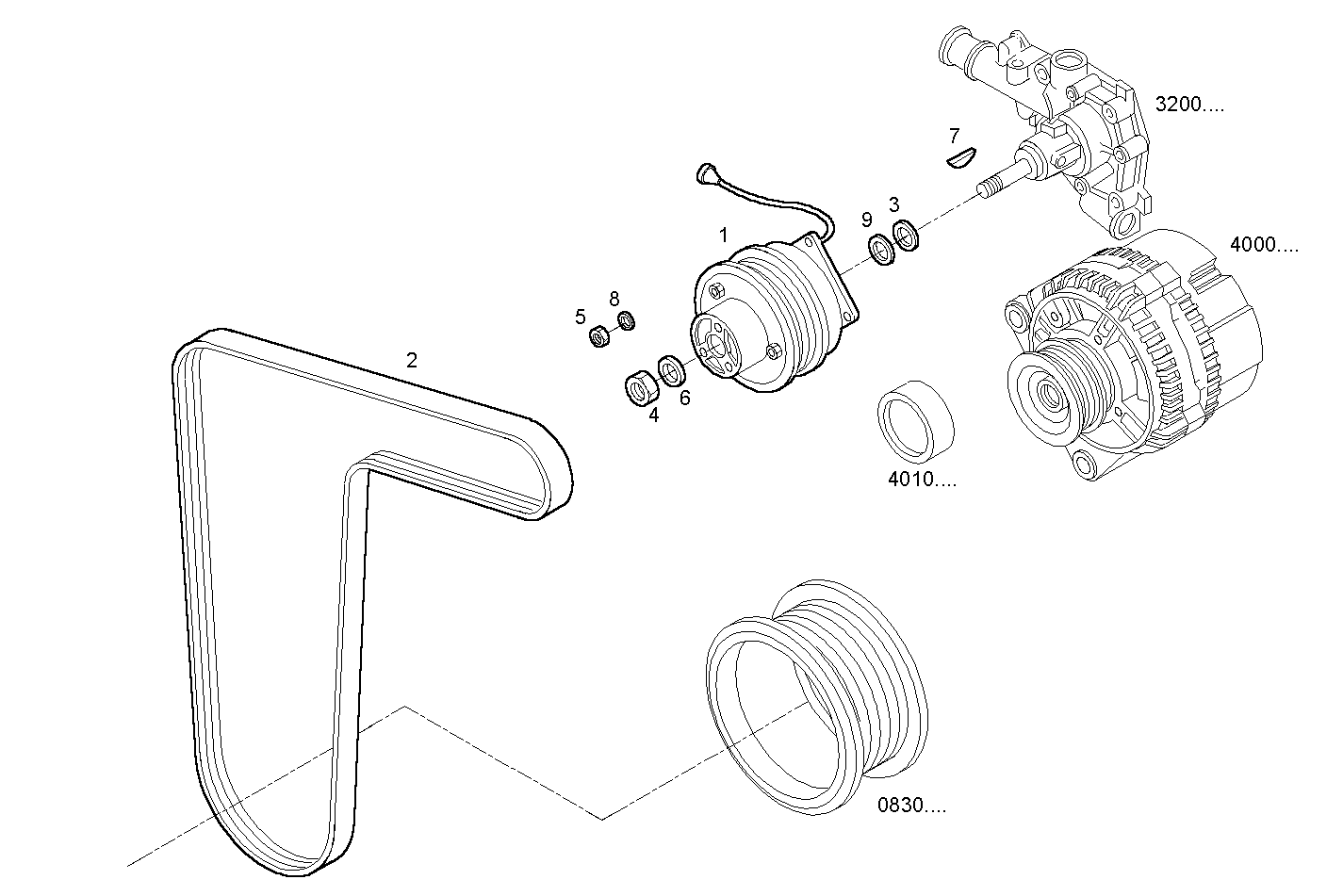

3240.163 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 504121419 | WATER PUMP PULLEY |
| 2 | 500358408 | V-BELT |
| 3 | 98437565 | WASHER Ø25 MM |
| 4 | 500333918 | HEXAGON NUT M14X1,5 |
| 5 | 17037821 | HEXAGON NUT M6X1 |
| 6 | 17092074 | SPRING WASHER Ø14X32 MM SP=4 MM |
| 7 | 10205710 | KEY 3X5 MM |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 98493778 | WASHER Ø15X25 SP=3,55 MM |
