8140.43S.4400

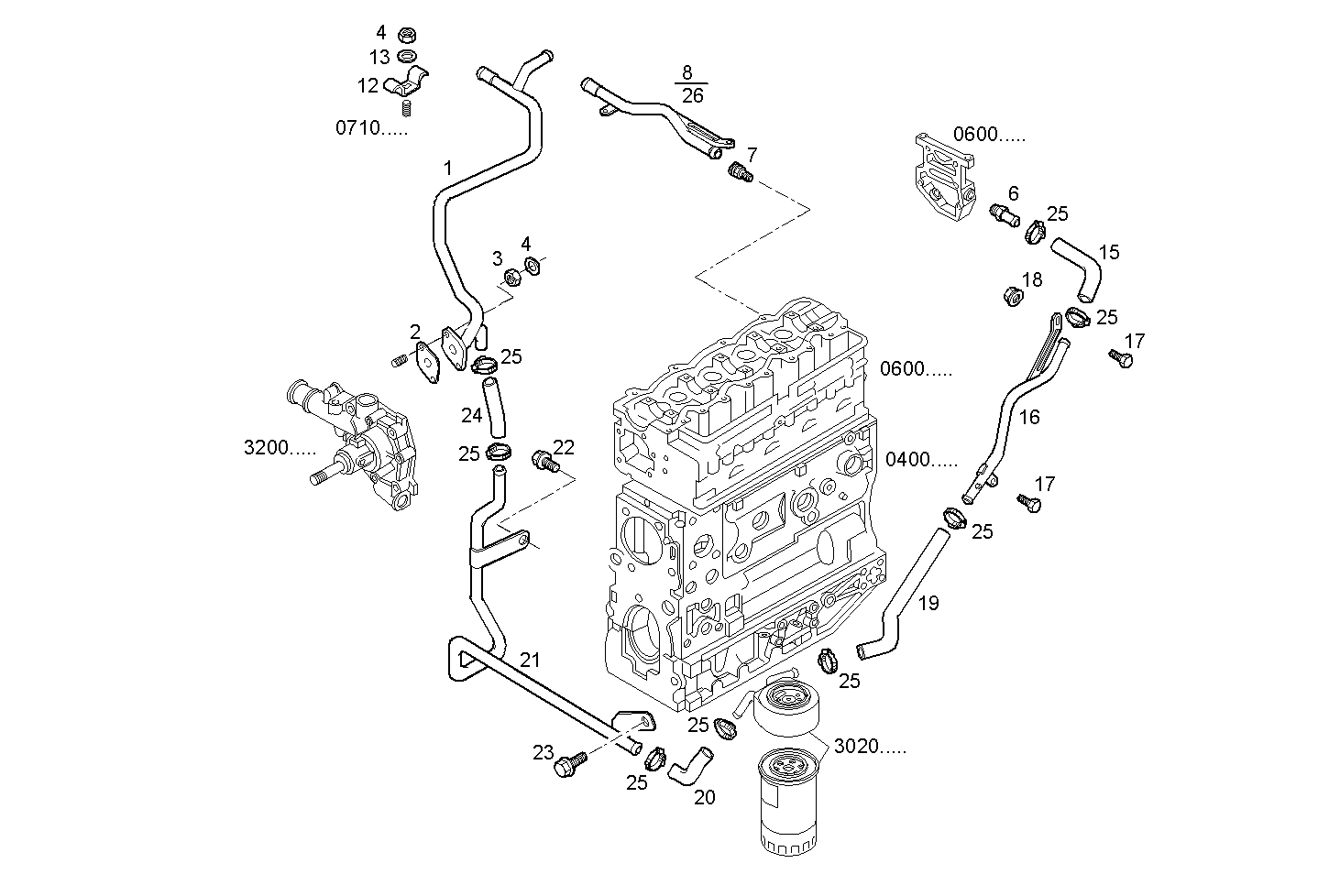

3210.317 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 500326396 WATER PIPE
2 98430478 FLAT ENGINE GASKET SP=1,6 MM
3 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
4 17037931 HEXAGON NUT M8X1,25
6 99447076 CONNECTION PIPE
7 500328152 THREADED UNION
8 500326889 CONNECTION PIPE
12 500358396 RETAINER
13 17089574 WASHER Ø8X16 MM
15 98433754 RUBBER SLEEVE
16 99463355 WATER PIPE
17 16597924 HEXAGON BOLT M8X14 MM
18 17044731 HEXAGON NUT M8
19 99463357 WATER HOSE
20 99463358 HEATEXCHANG.HOSE
21 99463356 WATER PIPE
22 16288424 HEXAGON BOLT M10X1,25X25 MM
23 16282324 SCREW
24 1904633 WATER HOSE Ø16 MM
25 98463347 CLIP Ø18,5-25 MM
26 504039217 CONNECTION PIPE [FROM # 3487099]
