8140C00.00

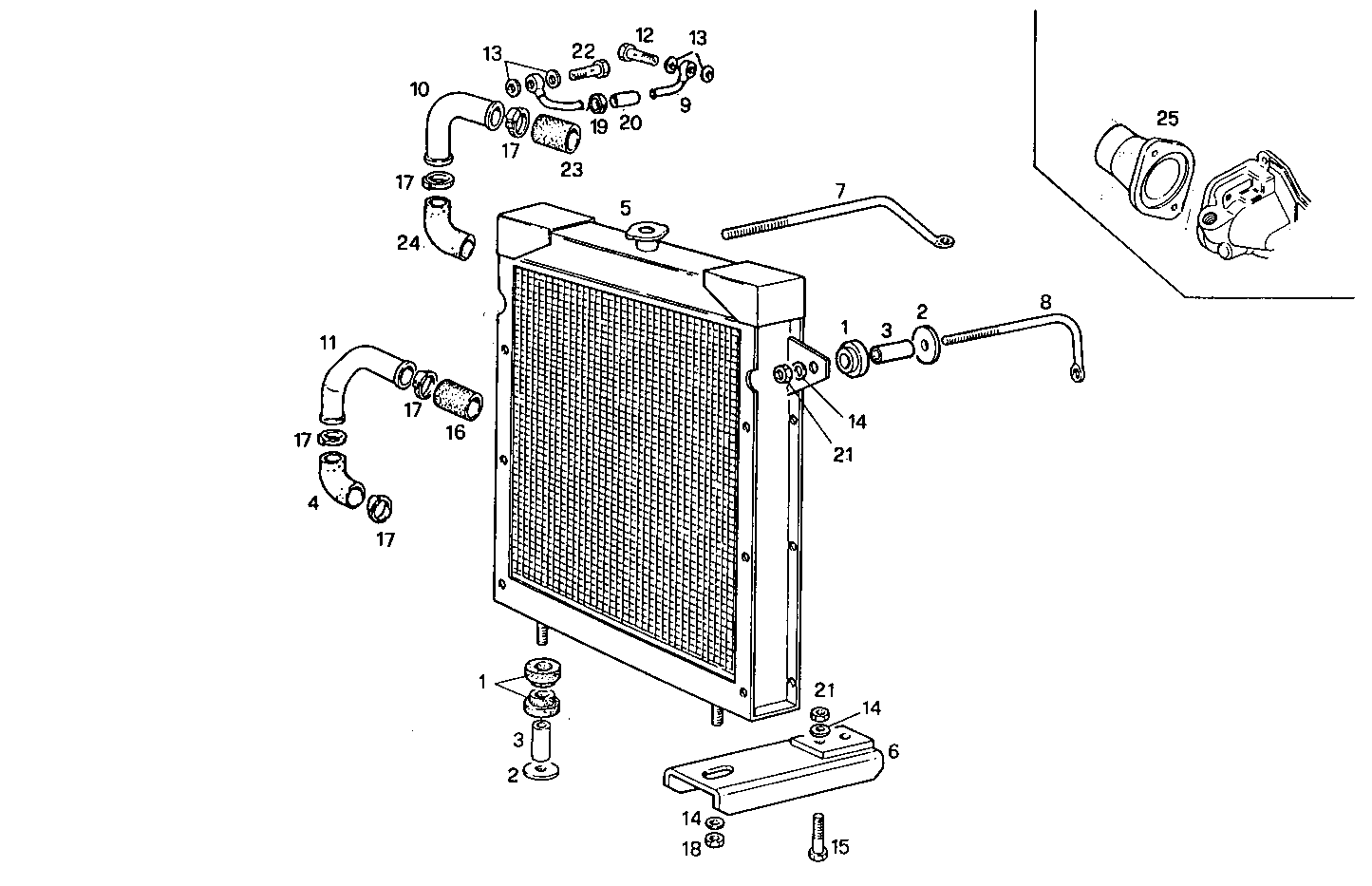

A22010045 RADIATOR FOR SETTING TILL MAX POWER
| Item | Part number | Description |
|---|---|---|
| 1 | 741569 | RUBBER LUG |
| 2 | 741570 | WASHER Ø10X17 MM SP=2,3 |
| 3 | 741571 | SPACING BAR Ø10X17 MM SP=2,3 |
| 4 | 8017516 | WATER HOSE |
| 5 | 4934548 | WATER RADIATOR |
| 6 | 8107491 | SUPPORT |
| 7 | 8019017 | TIE ROD RIGHT |
| 8 | 8019016 | TIE ROD LEFT |
| 9 | 98405463 | PIPE SOCKET |
| 10 | 8019018 | WATER PIPE |
| 11 | 8019019 | WATER PIPE |
| 12 | 4806154 | FILLER NECK |
| 13 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 14 | 17090174 | SPRING WASHER Ø10X20 MM |
| 15 | 16607424 | SCREW M10X16 |
| 16 | 8019020 | RUBBER SLEEVE |
| 17 | 17764791 | CLIP Ø32/50 MM |
| 18 | 17038221 | HEXAGON NUT M10 |
| 19 | 18087991 | CLIP Ø8/16 MM |
| 20 | 8007998 | RUBBER SLEEVE |
| 21 | 17038121 | HEXAGON NUT M10 |
| 22 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 23 | 17742887 | RUBBER SLEEVE |
| 24 | 8102099 | RUBBER SLEEVE |
| 25 | 7301254 | COVER |
