8140C00.00A005

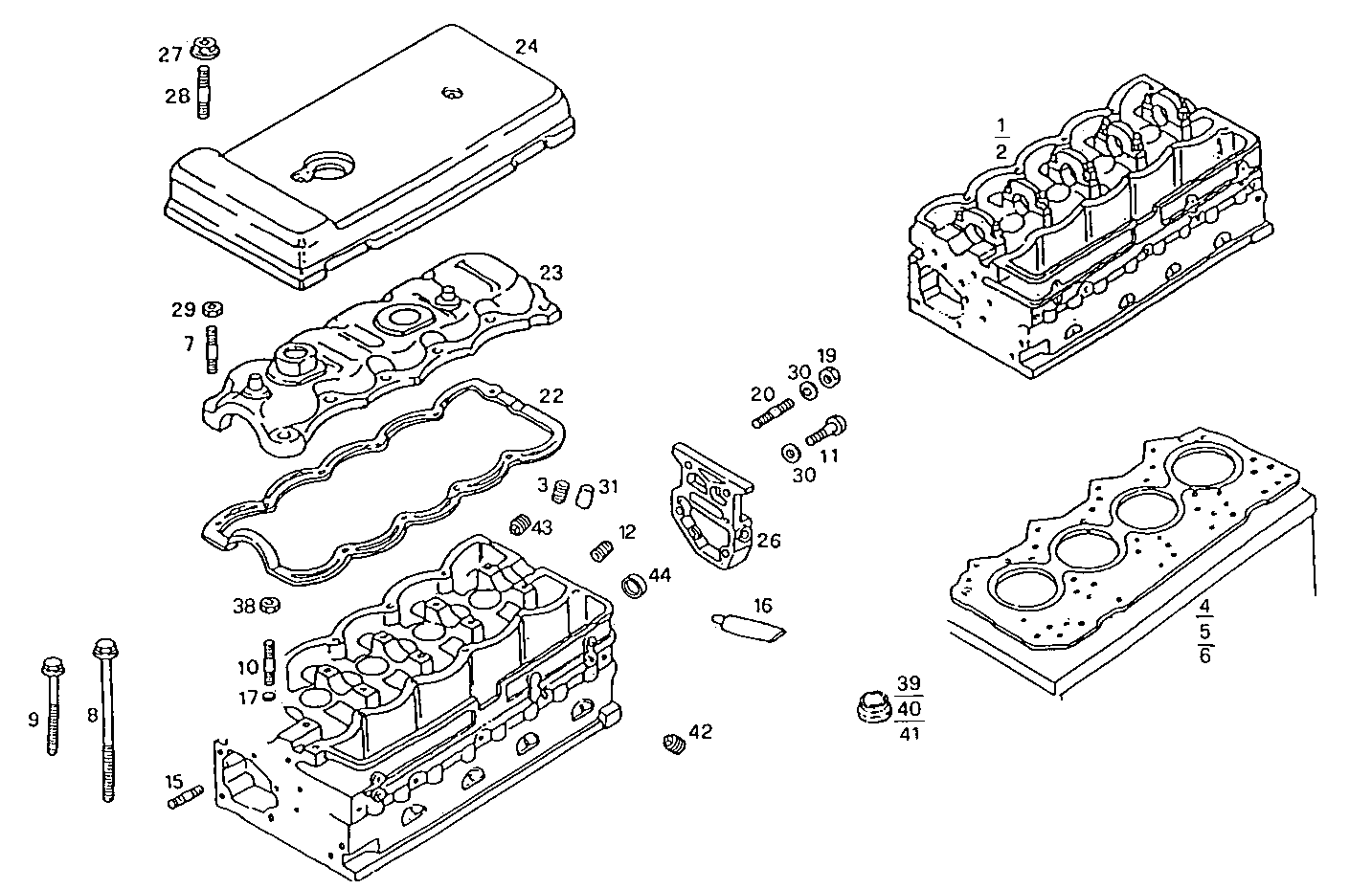

0600.119/01 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 99482728 CYLINDER HEAD ASSY
2 99482729 CYLINDER HEAD ASSY +0,2 MM
3 4279430 THREADED BUSH M14X1,5X20 MM
4 98492580 CYL.HEAD GASKET 1,60 MM
5 98492581 CYL.HEAD GASKET SP=1,7 MM
6 98498291 CYL.HEAD GASKET 1,80 MM
7 17364824 STUD M6X30 MM
8 4854648 CYL.HEAD STUD M12X1,25X163 MM
9 4828150 CYL.HEAD STUD M12X1,25X119 MM
10 13543924 STUD M8X16X45 MM
11 16605624 HEXAGON BOLT M8X25 MM (8.8)
12 14326001 THREADED PLUG M10X1,25
15 16745124 STUD M6X25 MM
16 1905685 ADHESIVE/STICKER LOCTITE
17 98466492 DOWEL PIN [from 1671414]
19 17037931 HEXAGON NUT M8X1,25
20 16729724 STUD M8X40 MM
22 98472291 HEAD COVER GASKET
23 98498877 CYL. HEAD COVER BOTTOM
24 98497356 CYL. HEAD COVER TOP
26 500302236 COVER REAR CYLINDER HEAD [from 1834785]
27 98439382 NUT
28 16727624 STUD M6X16 MM
29 17152721 NUT M6
30 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 4279663 DOWEL PIN
38 99486342 HEXAGON NUT M8X1,25
39 4830634 PLUG SP=4,5-4,52 MM
40 4830635 PLUG SP=4,52-4,54 MM
41 4830636 PLUG SP=4,54-4,56 MM
42 16997411 THREADED PLUG M16X1,5
43 14324901 LOCK PLUG M14X1,5
44 7301976 PLUG Ø16 MM
