8140C00.00A005

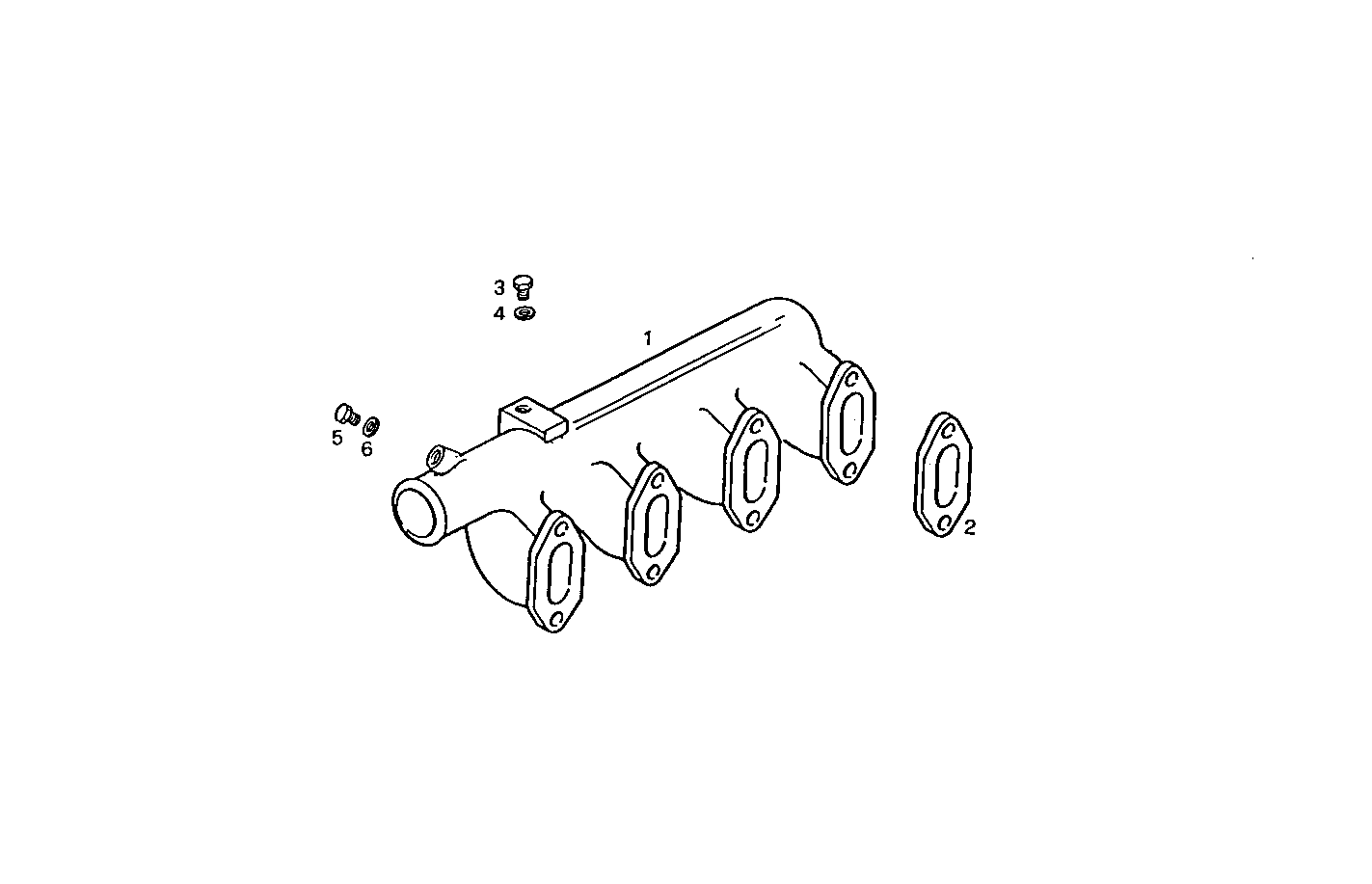

A05030004 INTAKE MANIFOLD - rear axial inlet
| Item | Part number | Description |
|---|---|---|
| 1 | 8020124 | INTAKE ELBOW |
| 2 | 98425767 | INTAKE ELBOW GASK. SP=0,8 MM |
| 3 | 4543074 | PLUG M18X1 |
| 4 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 5 | 4827588 | PLUG M20 |
| 6 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 9 | 10304911 | THREADED PLUG M20X1,5 |
| 10 | 10257260 | SEAL GASKET SP=0,5 MM |
