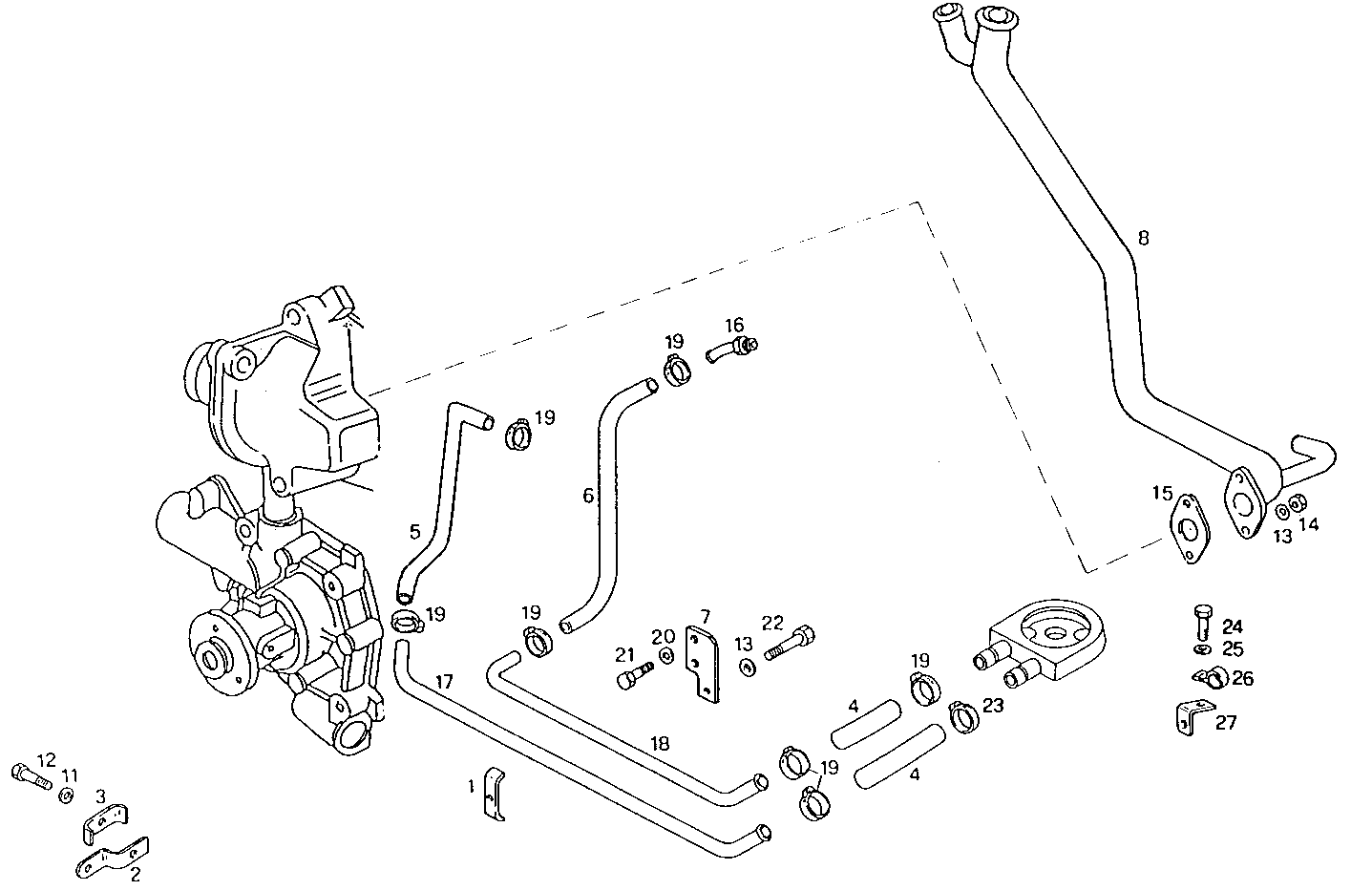

| Item |
Part number |
Description |
|
1 |
4852221 |
RETAINER |
|
2 |
4852220 |
RETAINER |
|
3 |
4852223 |
RETAINER |
|
4 |
8089134 |
WATER HOSE |
|
5 |
4852226 |
WATER HOSE |
|
6 |
99461491 |
WATER HOSE |
|
7 |
4852219 |
RETAINER |
|
8 |
99443658 |
WATER PIPE |
|
11 |
17088974 |
SPRING WASHER Ø6X18X1,4 MM |
|
12 |
10902721 |
HEXAGON BOLT M6 |
|
13 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
14 |
17037931 |
HEXAGON NUT M8X1,25 |
|
15 |
98430478 |
FLAT ENGINE GASKET SP=1,6 MM |
|
16 |
99447076 |
CONNECTION PIPE |
|
17 |
98434049 |
WATER PIPE |
|
18 |
98434054 |
WATER PIPE |
|
19 |
98463347 |
CLIP Ø18,5-25 MM |
|
20 |
17090074 |
SPRING WASHER Ø10X20X1,9 MM |
|
21 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
22 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
23 |
18088391 |
CLIP Ø16/25 MM |
|
24 |
16605424 |
SCREW M8X16 MM (8.8) |
|
25 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
26 |
4936279 |
CLIP |
|
27 |
8110294 |
RETAINER |
