8140SC00.10

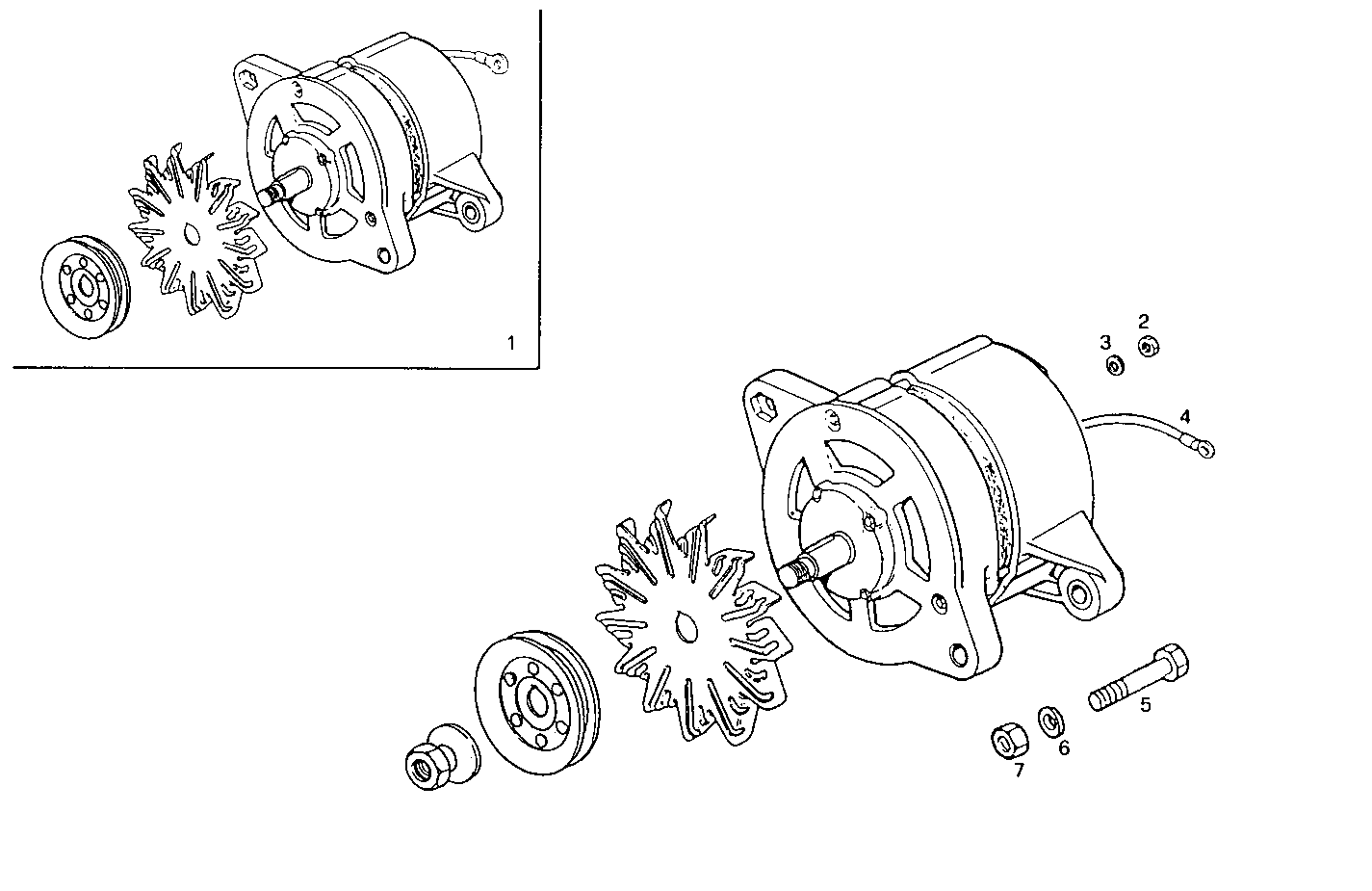

A14050028 SELF-REGULATED ALTERNATOR - 12V 65A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 8012300 | ALTERNATOR ASSY |
| 2 | 17037821 | HEXAGON NUT M6X1 |
| 3 | 17088474 | WASHER Ø6X12 MM |
| 4 | 8105654 | WIRE/CABLE |
| 5 | 16611224 | HEXAGON BOLT M12X120 MM |
| 6 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
| 7 | 17038421 | HEXAGON NUT M12 (8) |
