8140SC00.60

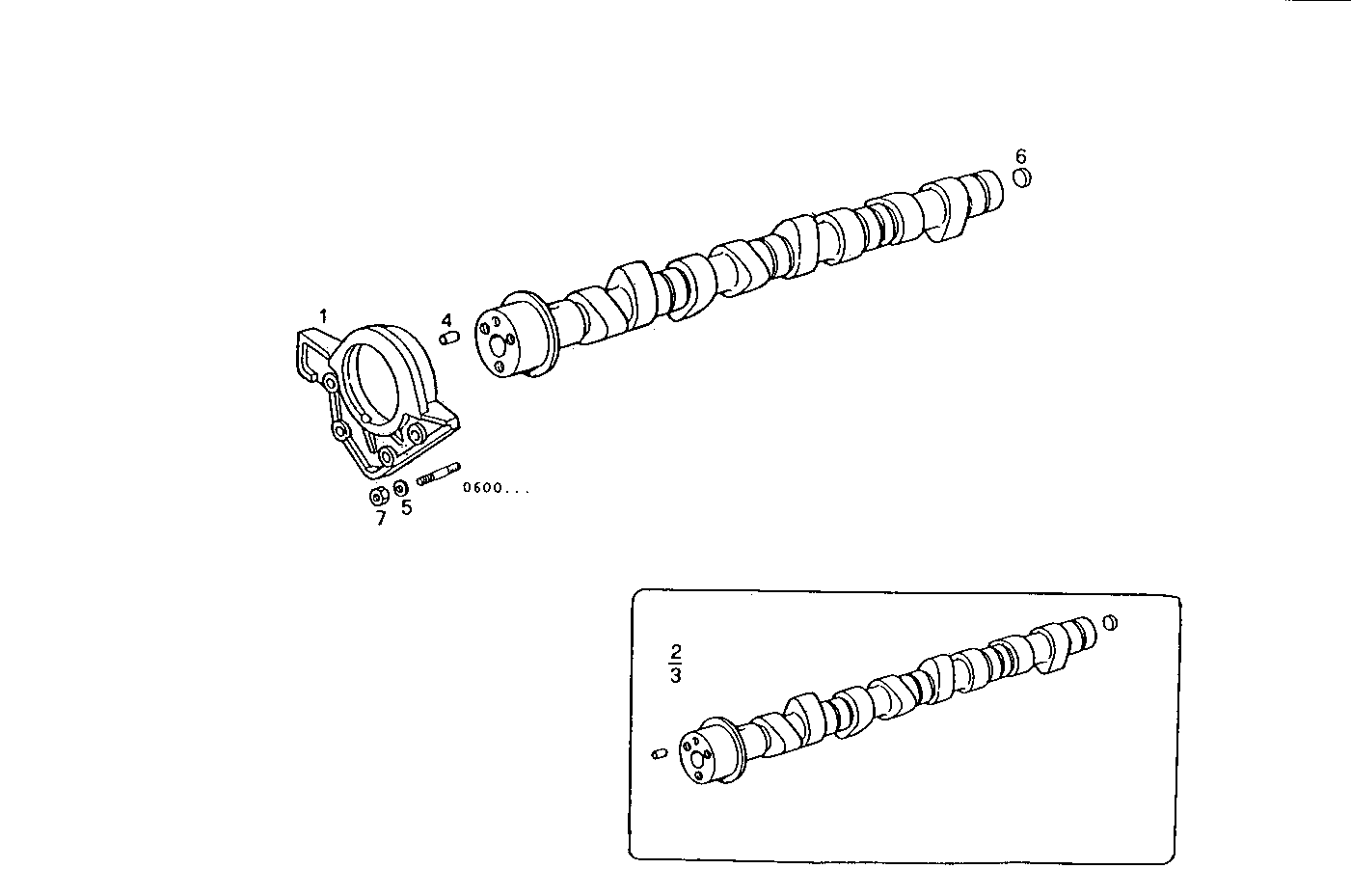

1250.068/01 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 7302380 | COVER |
| 2 | 98427674 | CAMSHAFT ASSY |
| 3 | 98466480 | CAMSHAFT ASSY +0,2 MM |
| 4 | 17275410 | DOWEL PIN Ø8 MM |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 16987801 | LOCK PLUG Ø12 MM |
| 7 | 17037821 | HEXAGON NUT M6X1 |
