8140SC00.60

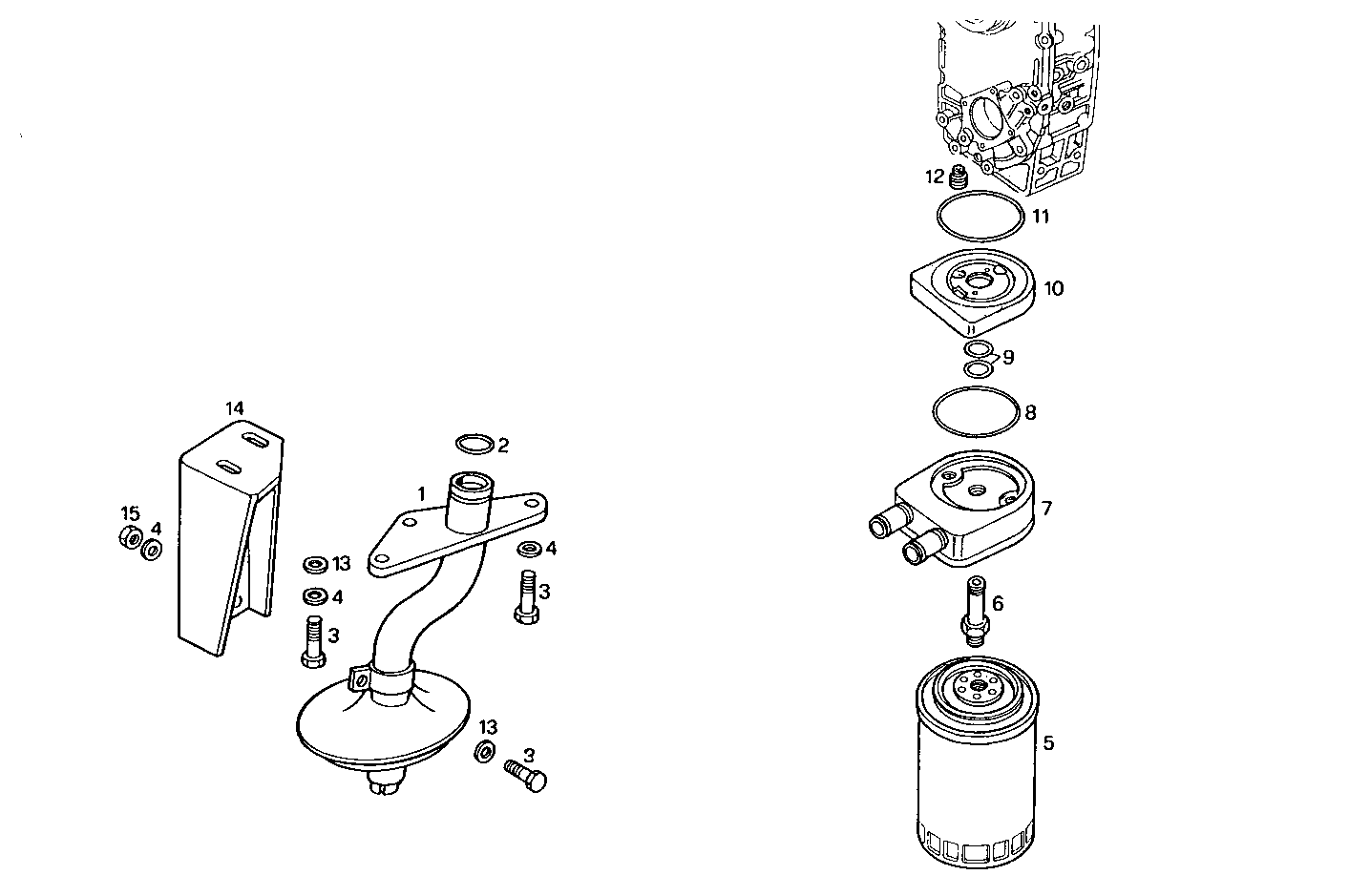

3010.152 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 98478060 SUCTION STRAINER
2 17282281 O-RING 2,62x23,47
3 16605524 HEXAGON BOLT M8X20 MM
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 1903628 OIL FILTER CARTRIDGE
6 4866353 THREADED UNION
7 4866350 HEAT EXCHANGER ASSY
8 93160574 RUBBER RING Ø66 MM SP=5 MM
9 17278781 O-RING Ø21,95 MM SP=1,78 MM
10 99488291 OIL FILTER SUPPORT
11 17290181 O-RING Ø59,92 MM SP=3,53 MM
12 4737557 DOWEL PIN
13 17094914 WASHER 8x16
14 98476013 FASTENING BRACKET
15 17037931 HEXAGON NUT M8X1,25
