8140SC23.00A005

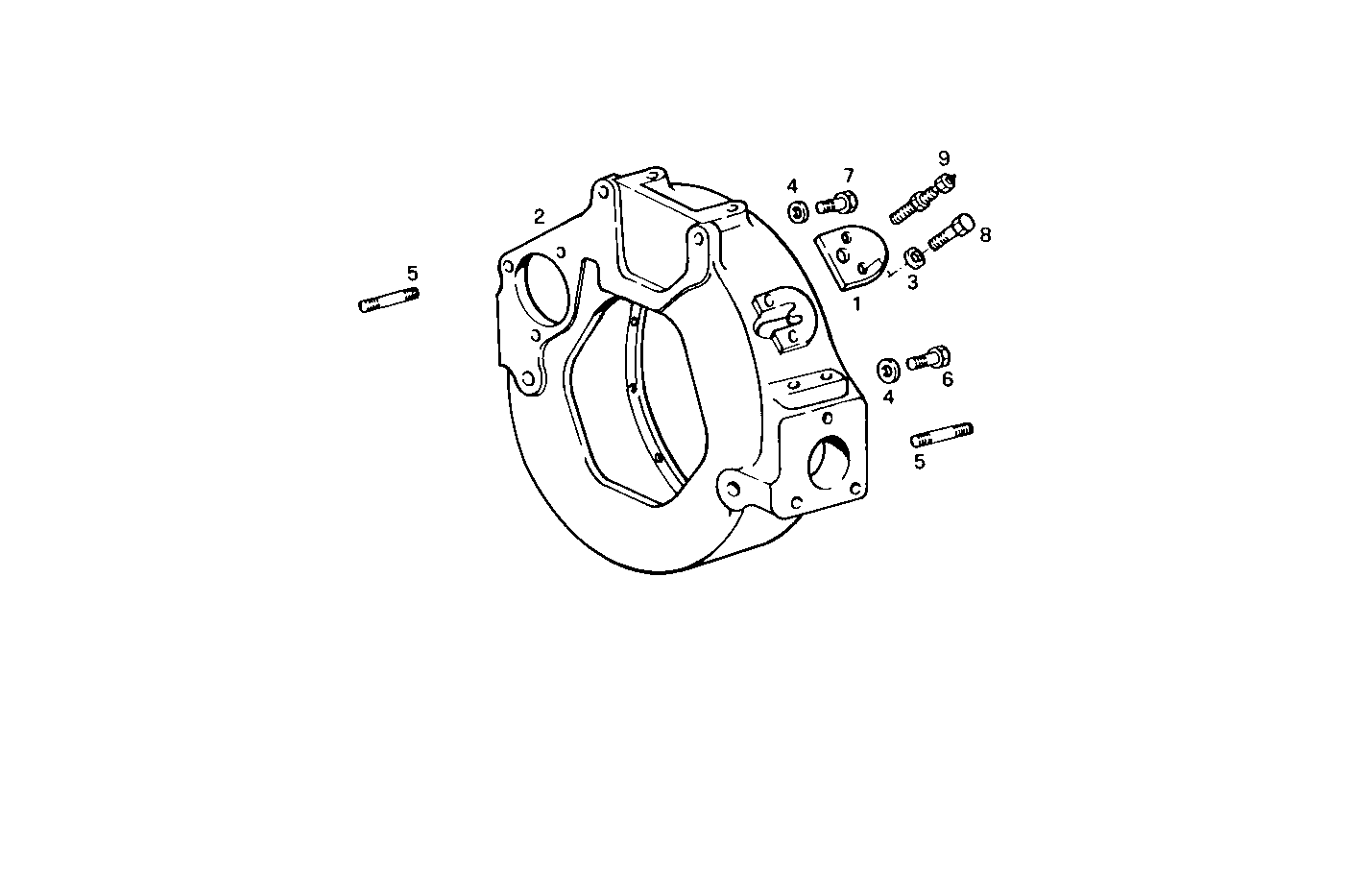

0430.153 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 8022456 | COVER |
| 2 | 4934049 | FLYWHEEL HOUSING |
| 3 | 17094504 | WASHER Ø5,3X10 MM |
| 4 | 17091074 | WASHER Ø12X24X2,8 MM |
| 5 | 13546521 | STUD M10X1,25X20X30 MM |
| 6 | 15540721 | HEXAGON BOLT M12X45 MM |
| 7 | 15541021 | HEXAGON BOLT M12X1,25X60 MM |
| 8 | 16602224 | HEXAGON BOLT M5X20 MM |
| 9 | 8018673 | PICK-UP |
