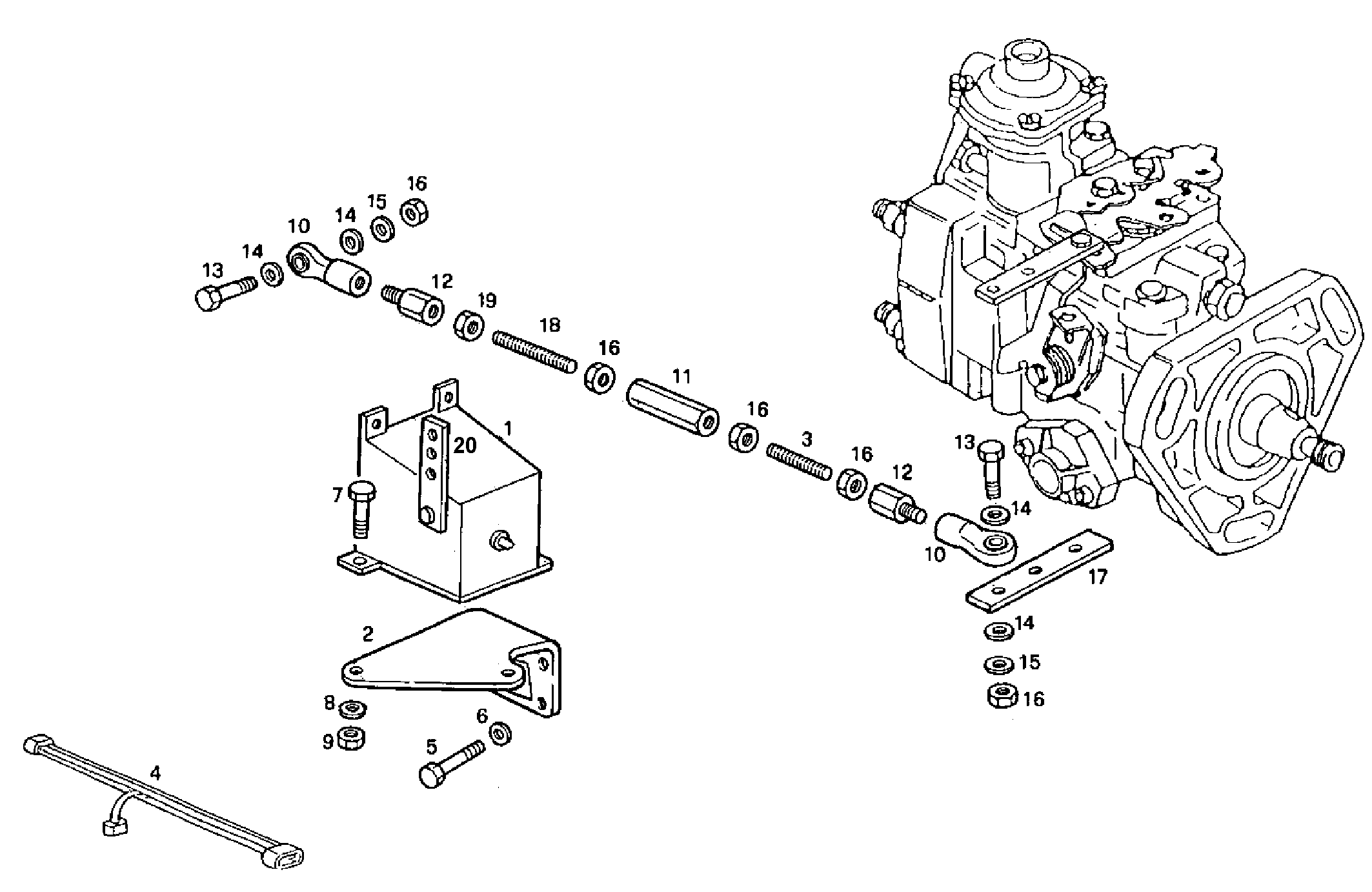

| Item |
Part number |
Description |
|
1 |
8021744 |
ENGINE ACTUATOR ASSY |
|
2 |
8022436 |
RETAINER |
|
3 |
8100610 |
TIE ROD |
|
4 |
8018968 |
ENGINE HARNESS |
|
5 |
15540324 |
SCREW M12X1,25X25 |
|
6 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
7 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
8 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
9 |
17037931 |
HEXAGON NUT M8X1,25 |
|
10 |
4934541 |
BRACE/STRUT |
|
11 |
8016413 |
TIE ROD M6X1 [up to 06-95] |
|
12 |
8105581 |
STUD |
|
13 |
10902321 |
HEXAGON BOLT M6X18 MM (8.8) |
|
14 |
17094714 |
WASHER Ø6,4X12 MM |
|
15 |
17088474 |
WASHER Ø6X12 MM |
|
16 |
17037821 |
HEXAGON NUT M6X1 |
|
17 |
8015506 |
LEVER M5X0,8 |
|
18 |
4936705 |
TIE ROD L=70 MM |
|
19 |
16981731 |
NUT M6 |
|
20 |
8031536 |
LEVER |
