8140SC23.00A005

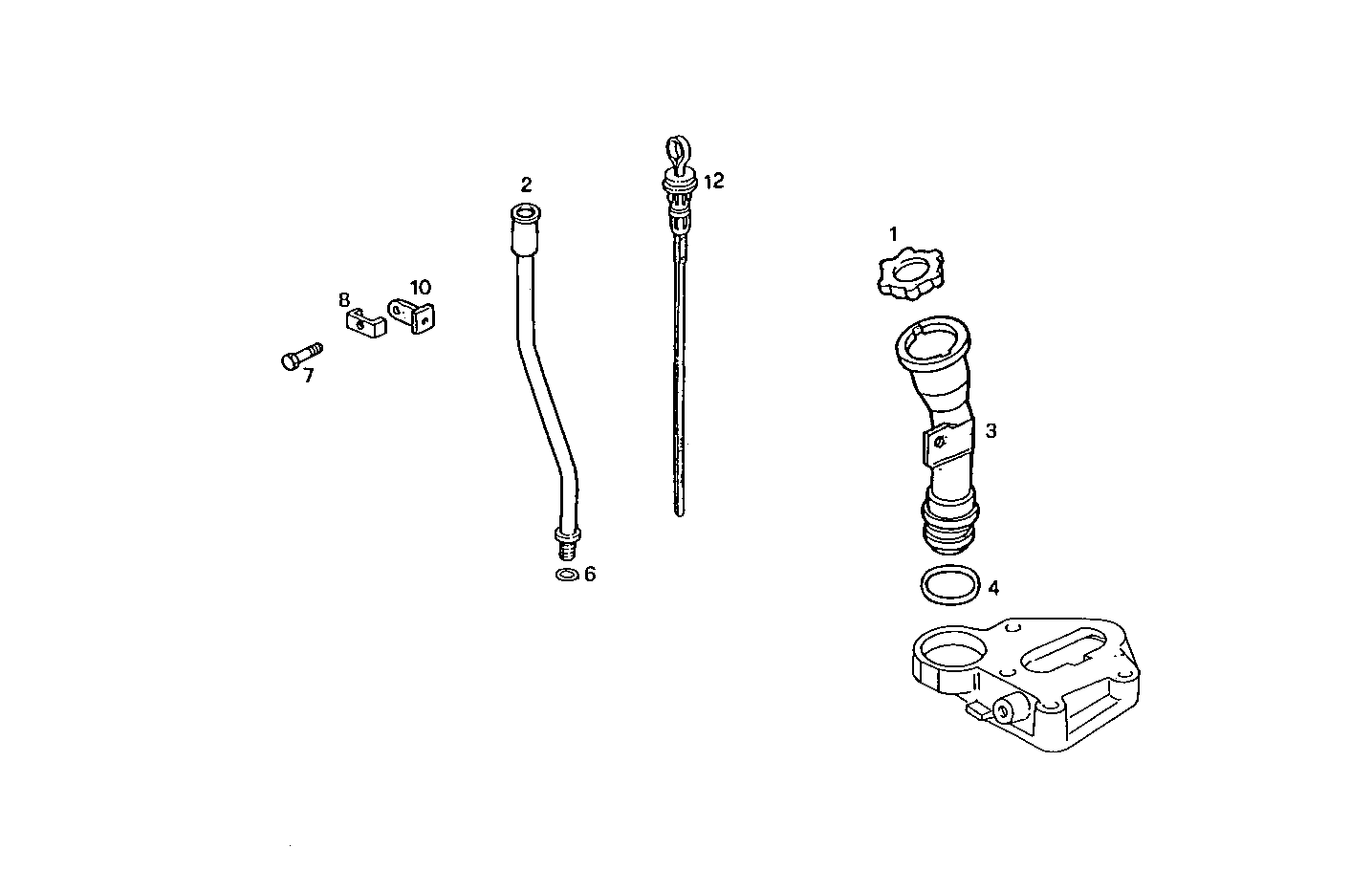

2710.081 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 500301568 | OIL FILLER PLUG ASSY |
| 2 | 7302234 | OIL LEVEL TUBE [up to 1134750] |
| 3 | 99459927 | OIL FILLER PIPE |
| 4 | 17282681 | O-RING SP=2,62 MM |
| 6 | 17277981 | O-RING 1,78x9,25 |
| 7 | 16605524 | HEXAGON BOLT M8X20 MM |
| 8 | 4716870 | RETAINER |
| 10 | 500302199 | RETAINER |
| 12 | 8020639 | OIL DIPSTICK ASSY |
