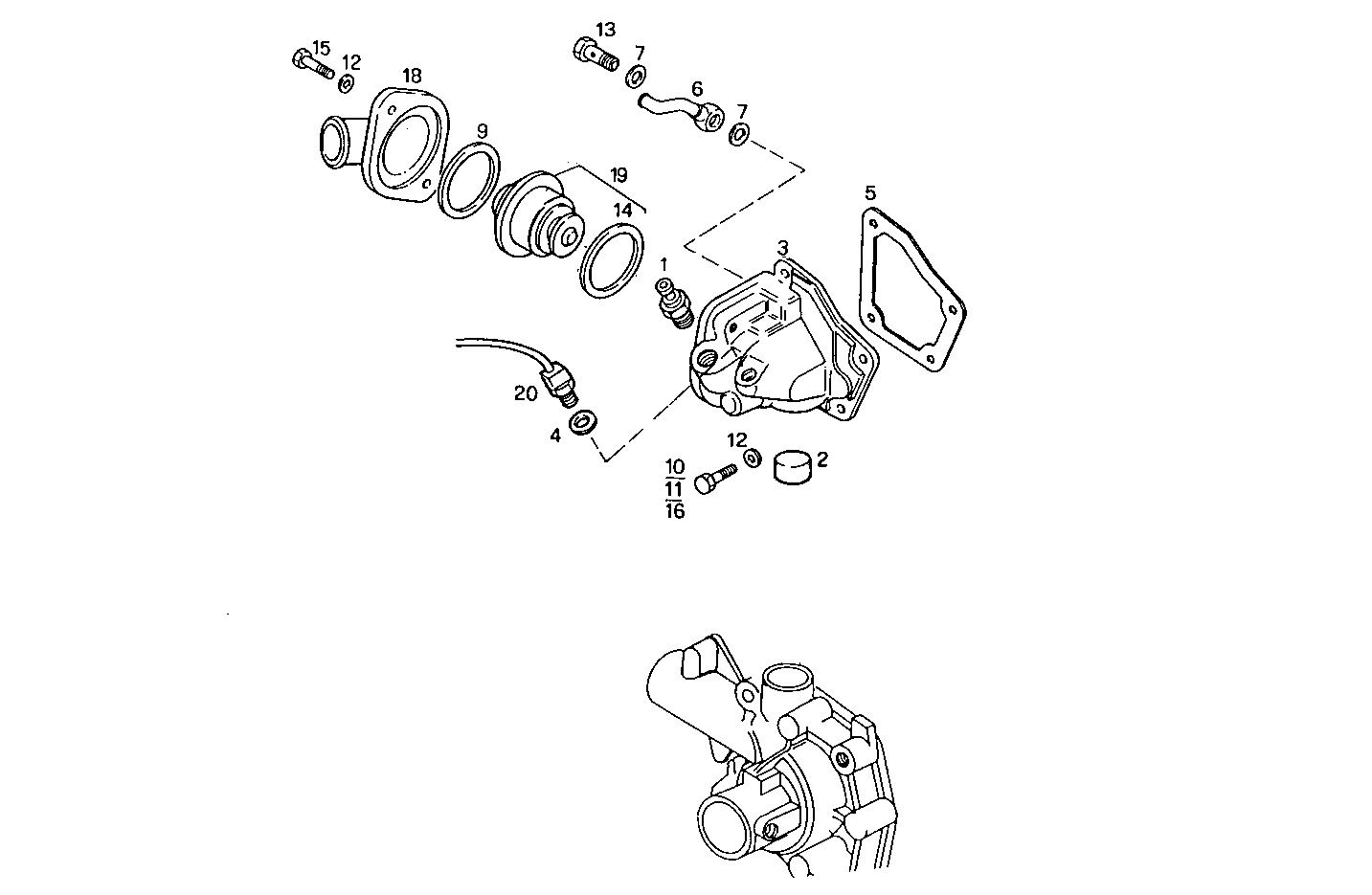

| Item |
Part number |
Description |
|
1 |
4837950 |
TEMP. TRANSMITTER |
|
2 |
4934503 |
PLUG |
|
3 |
500345691 |
THERMOSTAT BODY M8X1,25X30 MM |
|
4 |
10260060 |
SEAL GASKET Ø8X12X1 MM |
|
5 |
98421297 |
FLAT ENGINE GASKET SP=0,8 MM |
|
6 |
7302944 |
ELBOW COUPLING |
|
7 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
|
9 |
14455281 |
O-RING SP=1,78 MM |
|
10 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
11 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
14 |
4823212 |
RUBBER GASKET |
|
15 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
16 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
18 |
7301254 |
COVER |
|
19 |
98463637 |
THERMOSTAT ASSY |
|
20 |
99452677 |
TEMP. TRANSMITTER |
