8140SC23.00A005

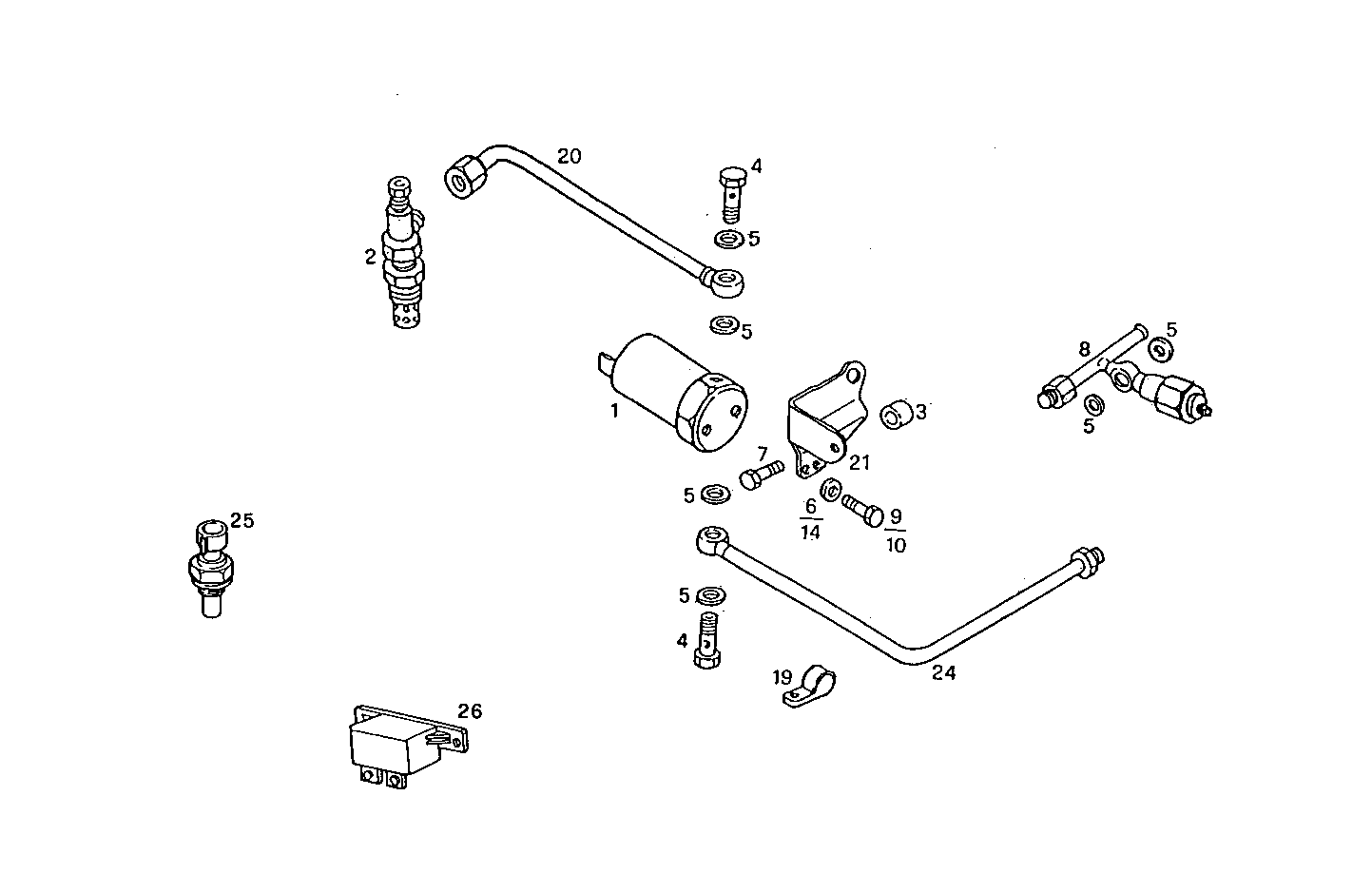

A20110007 THERMOSTARTER - 24V with electronic control unit
| Item | Part number | Description |
|---|---|---|
| 1 | 4851358 | ELECTROVALVE |
| 2 | 99450392 | THERMO-STARTER |
| 3 | 4853864 | SPACING BAR |
| 4 | 7303136 | SCREW CONNECTOR |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 17094504 | WASHER Ø5,3X10 MM |
| 7 | 16606624 | HEXAGON BOLT M8X80 MM |
| 8 | 98462866 | FUEL LINE |
| 9 | 16602024 | SCREW M5X12 MM (8.8) |
| 10 | 16603524 | SCREW M6X12 MM (8.8) |
| 14 | 17088474 | WASHER Ø6X12 MM |
| 19 | 10440990 | PIPE CLIP Ø45 MM |
| 20 | 99438126 | FUEL LINE |
| 21 | 98451780 | RETAINER |
| 24 | 500334619 | FUEL LINE |
| 25 | 4857248 | TRANSMITTER |
| 26 | 99484737 | ELECTR.CONTR.UNIT 24V PREHEATER CONTROL |
