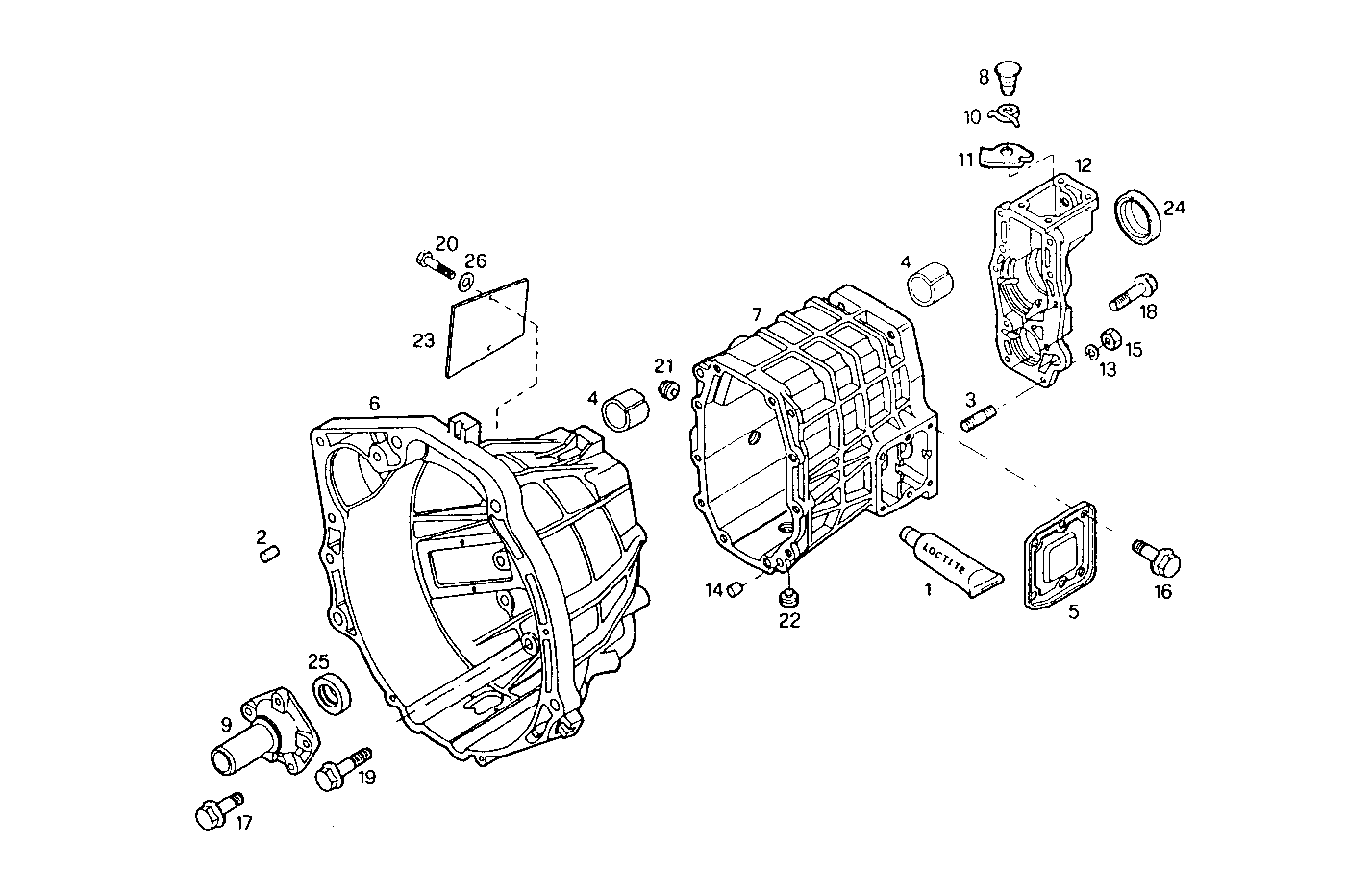

| Item |
Part number |
Description |
|
1 |
1905685 |
ADHESIVE/STICKER LOCTITE |
|
2 |
4647524 |
DOWEL PIN |
|
3 |
8856620 |
STUD |
|
4 |
8859033 |
UPPER G.BOX COVER |
|
5 |
8858617 |
SIDE G.BOX COVER |
|
6 |
8858900 |
CLUTCH HOUSING |
|
7 |
8859879 |
TRANSMISSION CASE |
|
8 |
8858898 |
PIN |
|
9 |
8858638 |
FRONT G.BOX COVER |
|
10 |
8859479 |
SPRING |
|
11 |
8859480 |
STOP |
|
12 |
8859389 |
REAR G.BOX COVER |
|
13 |
10571771 |
SPRING WASHER Ø8 MM |
|
14 |
10839810 |
DOWEL PIN Ø12 MM |
|
15 |
16100815 |
HEXAGON NUT M8 |
|
16 |
16586324 |
HEXAGON BOLT M8X1,25X20 MM |
|
17 |
16586421 |
SCREW M8X1,25 |
|
18 |
16586524 |
HEXAGON BOLT M8X30 MM |
|
19 |
16592824 |
HEXAGON BOLT M10X70 MM |
|
20 |
16785704 |
SCREW |
|
21 |
16996511 |
THREADED PLUG M22X1,5 |
|
22 |
16998511 |
THREADED PLUG M22X1,5 |
|
23 |
93809284 |
COVER |
|
24 |
40000160 |
SHAFT SEAL Ø53X68 MM SP=10 MM |
|
25 |
40100791 |
SHAFT SEAL Ø30X47 MM SP=8 MM |
|
26 |
17800174 |
WASHER |
