8140SE00.00

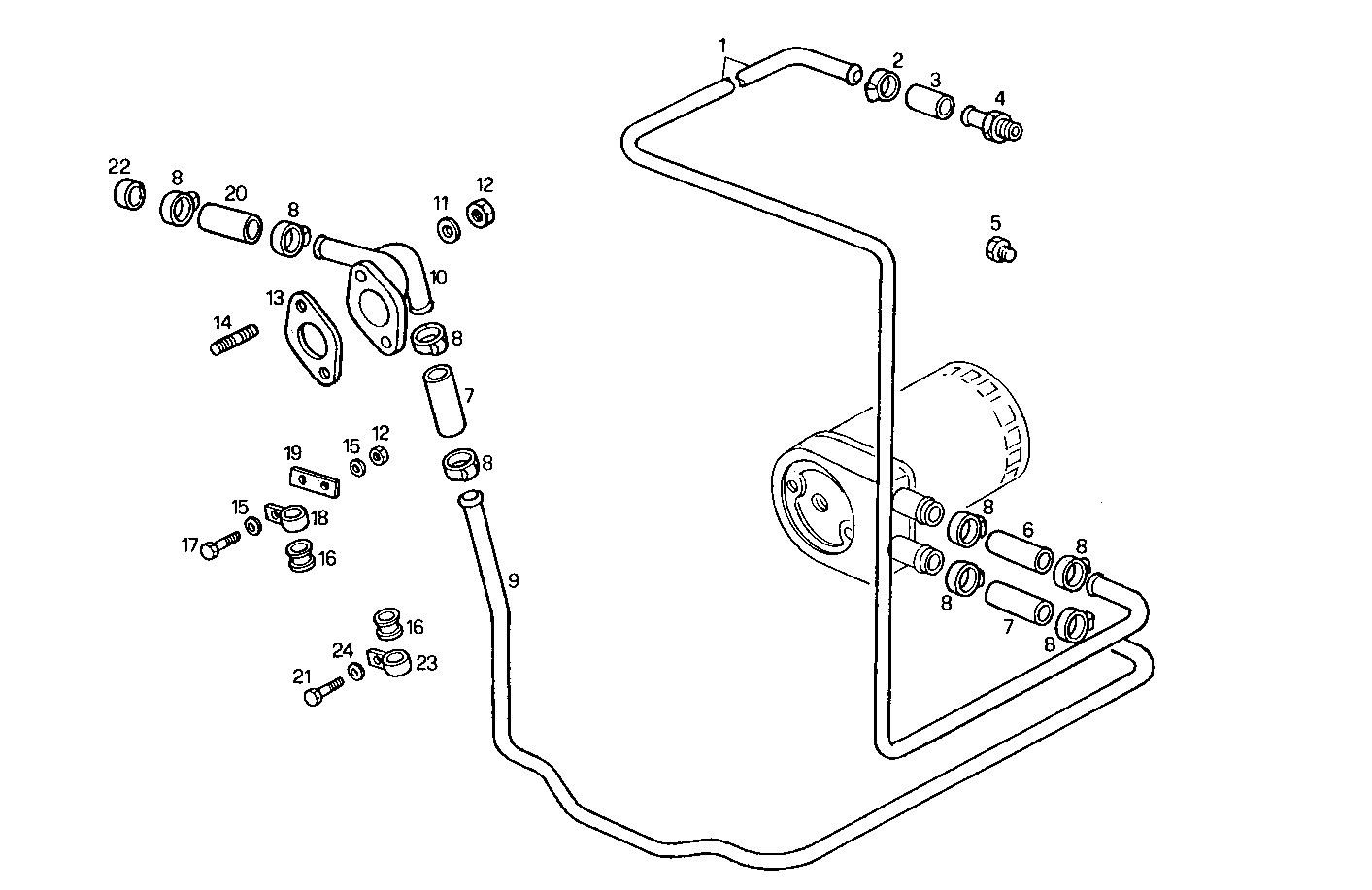

3210.151 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 99456322 | WATER PIPE |
| 2 | 98463347 | CLIP Ø18,5-25 MM |
| 3 | 99443116 | RUBBER SLEEVE |
| 4 | 99447076 | CONNECTION PIPE |
| 5 | 16997411 | THREADED PLUG M16X1,5 |
| 6 | 8016113 | WATER HOSE |
| 7 | 8013466 | WATER HOSE [up to 03-97] |
| 8 | 17764592 | CLIP Ø20/32 MM |
| 9 | 8023809 | WATER PIPE |
| 10 | 98433830 | WATER PIPE |
| 11 | 11193874 | WASHER Ø8X16 MM |
| 12 | 17037931 | HEXAGON NUT M8X1,25 |
| 13 | 98430478 | FLAT ENGINE GASKET SP=1,6 MM |
| 14 | 13543524 | STUD M8X16X25 |
| 15 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 16 | 4757122 | RUBBER PAD |
| 17 | 16605524 | HEXAGON BOLT M8X20 MM |
| 18 | 4763804 | FASTENING BRACKET |
| 19 | 4929652 | RETAINER |
| 20 | 17737487 | WATER HOSE |
| 21 | 15970521 | HEXAGON BOLT M10X20 MM |
| 22 | 8107339 | PLUG |
| 23 | 8111710 | CLIP |
| 24 | 17090174 | SPRING WASHER Ø10X20 MM |
