8140SE00.00A012

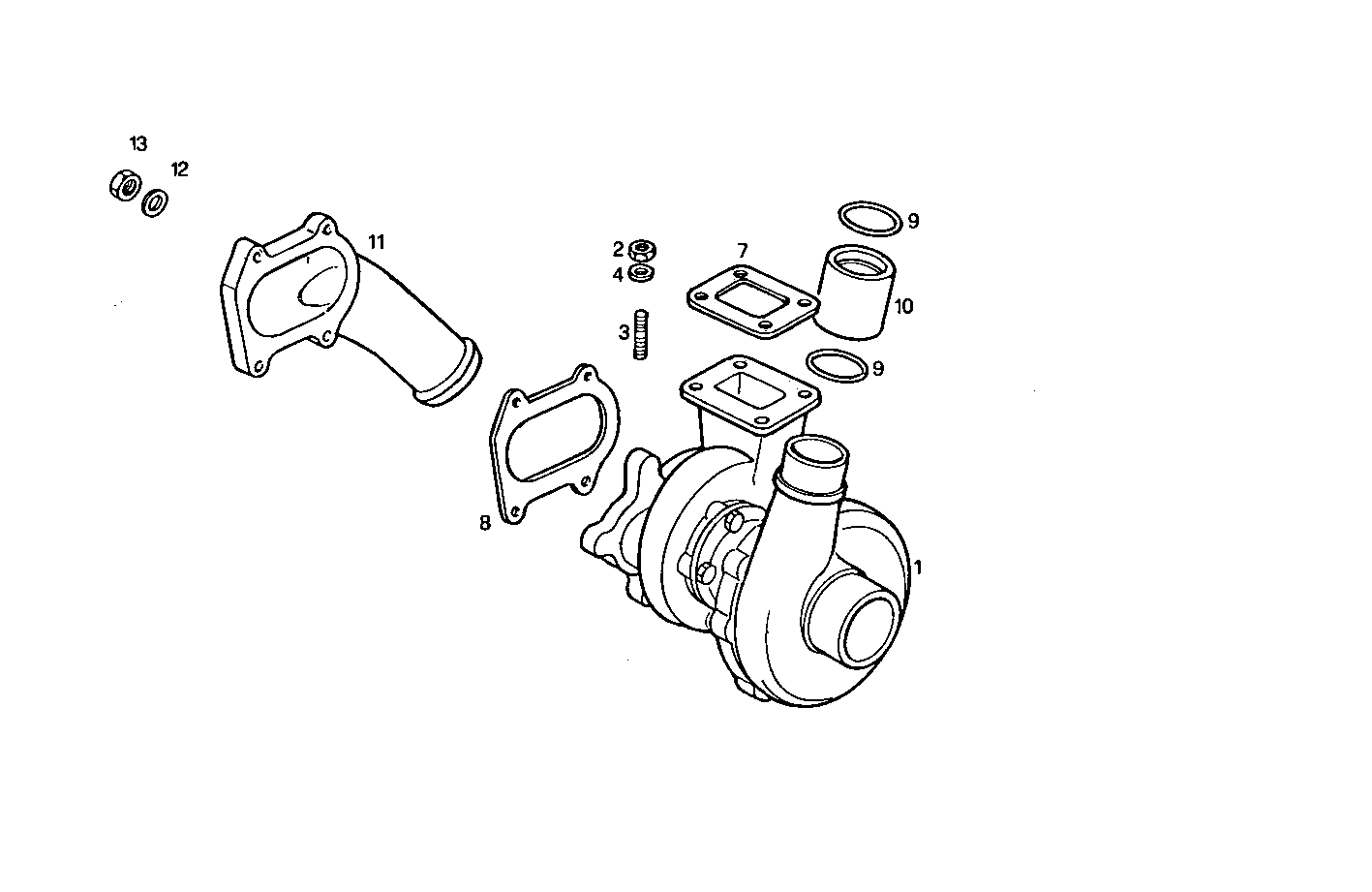

2400.122 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 99455591 | TURBOCHARGER ASSY MITSUBISHI |
| 2 | 14061711 | HEXAGON NUT M8 |
| 3 | 98492637 | STUD M8X12X27 MM |
| 4 | 17094914 | WASHER 8x16 |
| 7 | 99436990 | FLAT ENGINE GASKET |
| 8 | 98484659 | FLAT ENGINE GASKET |
| 9 | 14464381 | O-RING Ø3,55X47,22 MM |
| 10 | 7302186 | CONNECTOR SLEEVE |
| 11 | 8026883 | AIR MANIFOLD |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 17037931 | HEXAGON NUT M8X1,25 |
