8140SE00.00A012

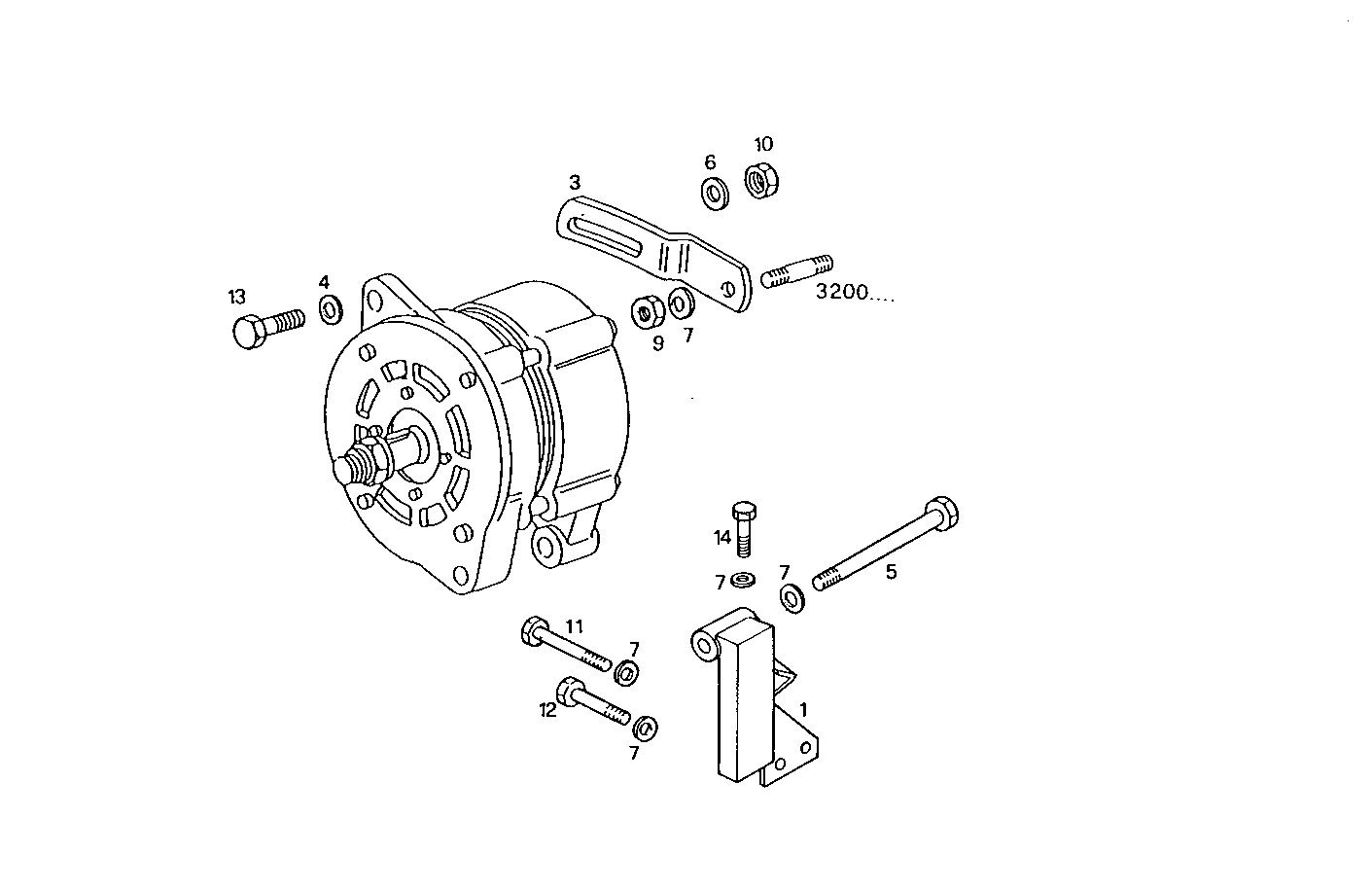

4010.082 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 8011319 | SUPPORT |
| 3 | 8011320 | BELT TENSIONER |
| 4 | 7300040 | WASHER SP=2,00 MM |
| 5 | 1111432 | SCREW |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 9 | 17038221 | HEXAGON NUT M10 |
| 10 | 17153021 | HEXAGON NUT M10X1,25 |
| 11 | 16606324 | HEXAGON BOLT M8X60 MM |
| 12 | 16046321 | HEXAGON BOLT M8X160 MM |
| 13 | 11307021 | HEXAGON BOLT M10X40 MM |
| 14 | 8101125 | SCREW |
