8140SE00.00A015

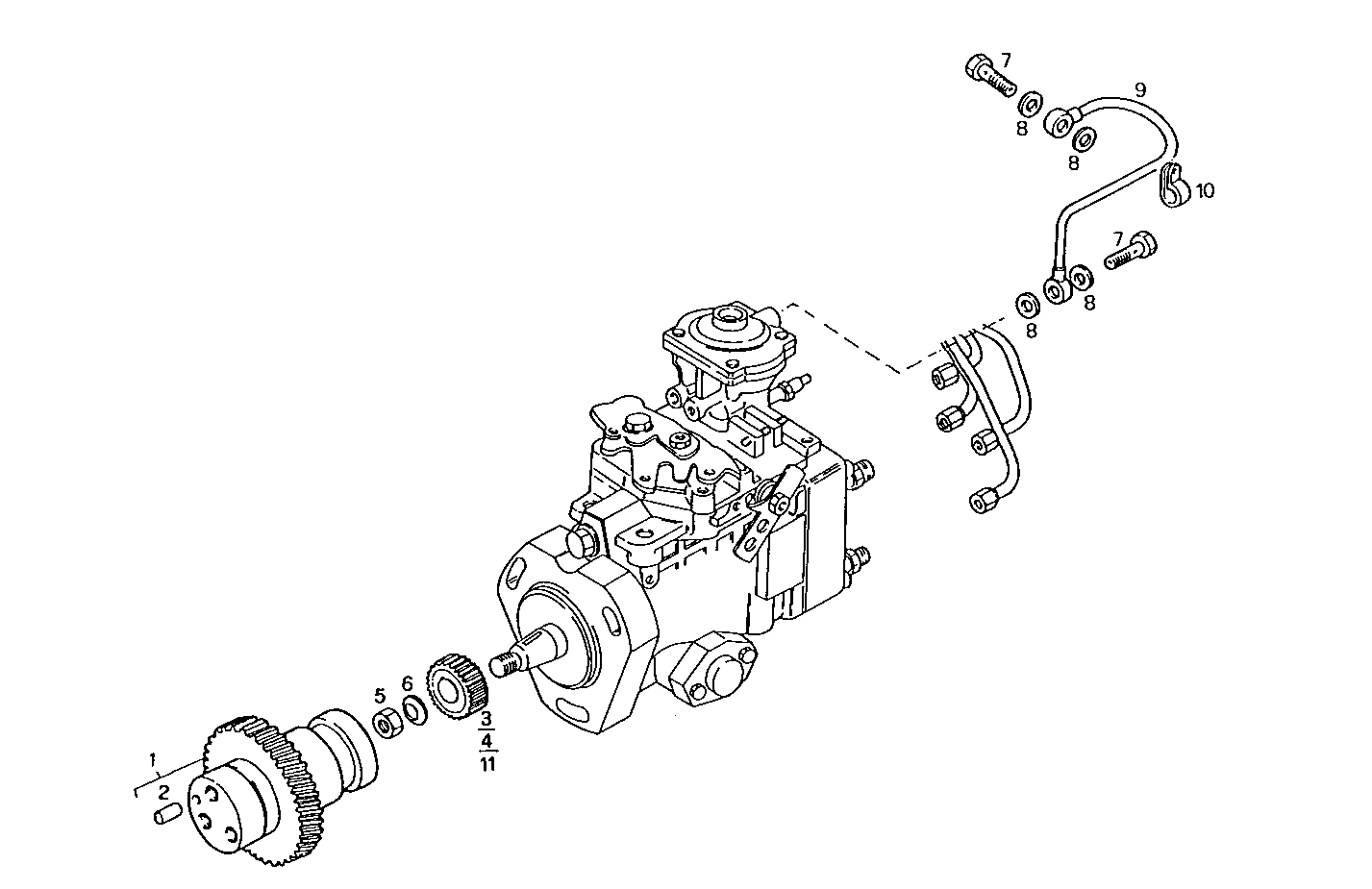

1410.089 INJECTION PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 99483335 | INJECT.PUMP SPIND ASSY |
| 2 | 10335910 | PARALLEL PIN |
| 3 | 4772022 | INJECT.PUMP BUSH 197° 30' [from 1992415] |
| 4 | 4797226 | INJECT.PUMP BUSH 200° 30' [from 1992415] |
| 5 | 17043231 | NUT M14X1,5 |
| 6 | 768389 | CIRCLIP |
| 7 | 11904011 | SCREW CONNECTOR |
| 8 | 10262760 | SEAL GASKET Ø8,2 MM |
| 9 | 7302725 | FUEL LINE |
| 10 | 10449890 | PIPE CLIP Ø53 MM |
| 11 | 98457105 | INJECT.PUMP BUSH 205° |
