8140SE00.00A015

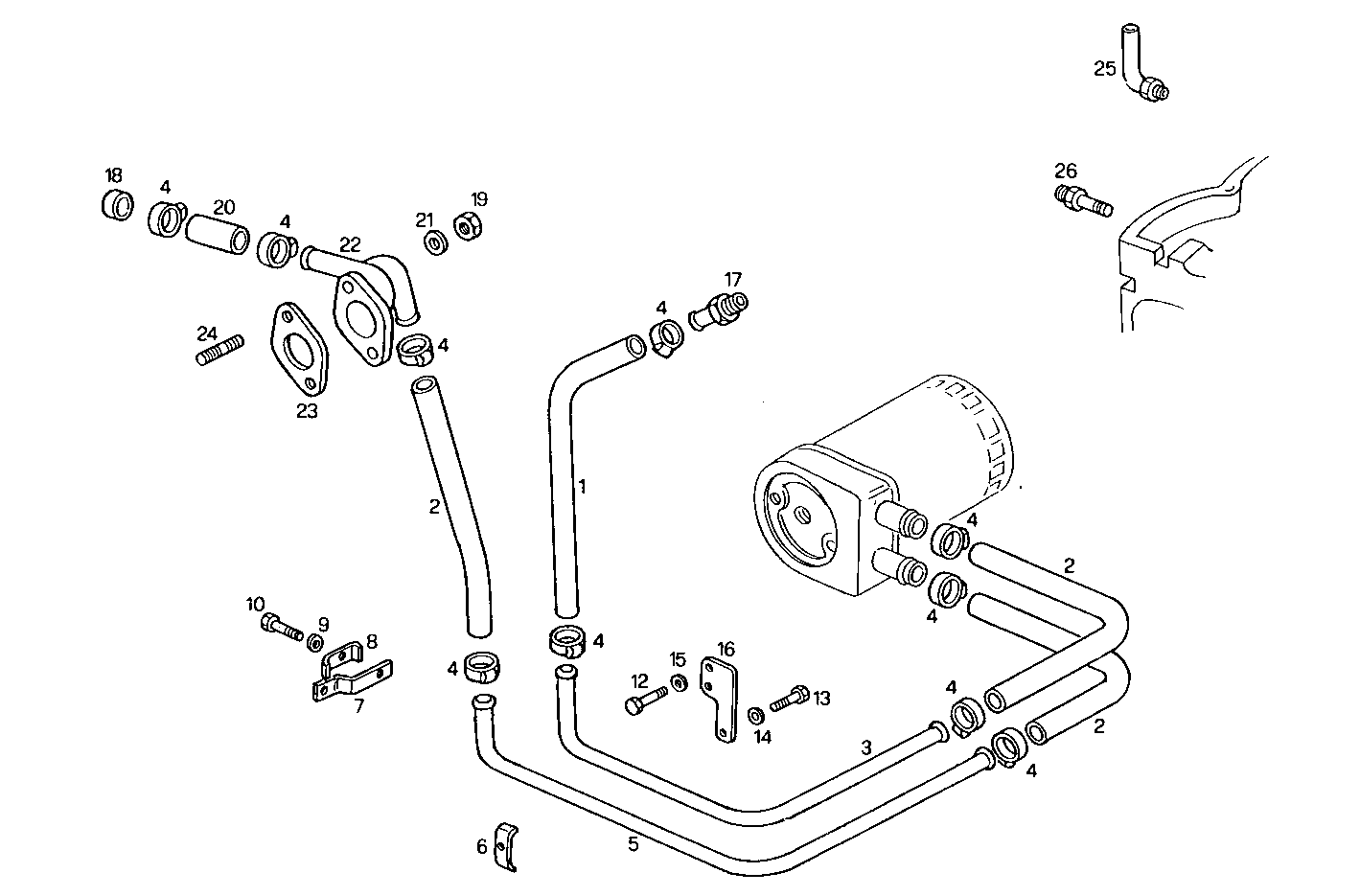

3210.158 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 98495097 WATER HOSE
2 4852225 WATER HOSE
3 98434054 WATER PIPE
4 17764592 CLIP Ø20/32 MM
5 99482735 WATER PIPE
6 4852221 RETAINER
7 4852220 RETAINER
8 4852223 RETAINER
9 17088974 SPRING WASHER Ø6X18X1,4 MM
10 16603924 HEXAGON BOLT M6X30 MM
12 15970521 HEXAGON BOLT M10X20 MM
13 16605824 HEXAGON BOLT M8X35 MM
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 17090174 SPRING WASHER Ø10X20 MM
16 4852219 RETAINER
17 99447076 CONNECTION PIPE
18 8107339 PLUG
19 17037931 HEXAGON NUT M8X1,25
20 17737487 WATER HOSE
21 11193874 WASHER Ø8X16 MM
22 98433830 WATER PIPE
23 98430478 FLAT ENGINE GASKET SP=1,6 MM
24 13543524 STUD M8X16X25
25 93814420 PIPE
26 4861321 THREADED UNION
