8140SE00.00A015

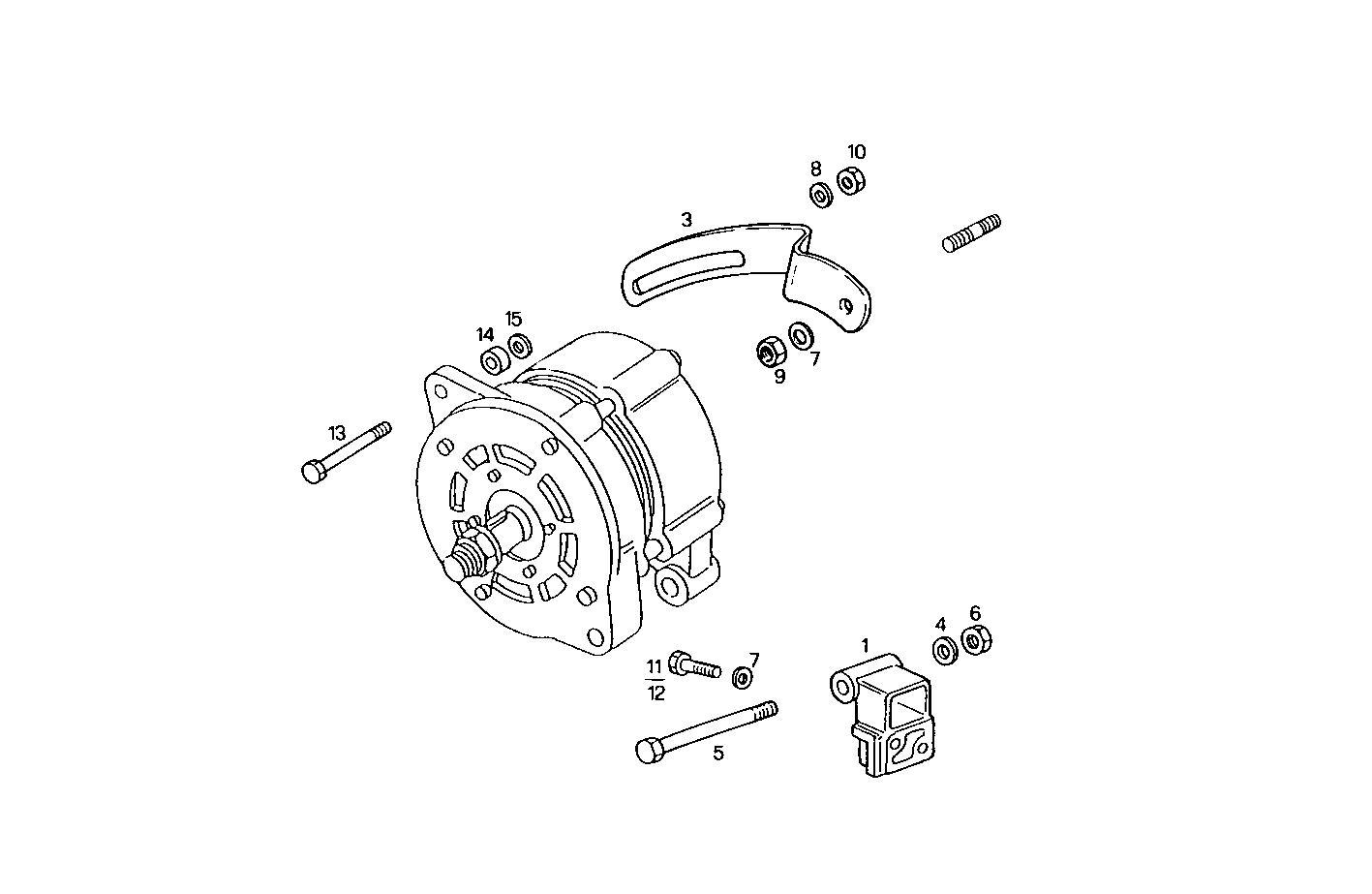

4010.091 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 98450774 | GENERATOR SUPPORT |
| 3 | 98450773 | BELT TENSIONER |
| 4 | 17091074 | WASHER Ø12X24X2,8 MM |
| 5 | 16611324 | HEXAGON BOLT M12X130 MM |
| 6 | 17153121 | NUT M12X1,75X15 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 17095304 | WASHER Ø12X24 MM |
| 9 | 17038221 | HEXAGON NUT M10 |
| 10 | 17038181 | NUT |
| 11 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 12 | 11343824 | HEXAGON BOLT M10X1,25X50 MM |
| 13 | 16608224 | SCREW M10X1,5X55 MM |
| 14 | 98450771 | SPACER SP=17 MM |
| 15 | 7300040 | WASHER SP=2,00 MM |
