8140SE00.00A016

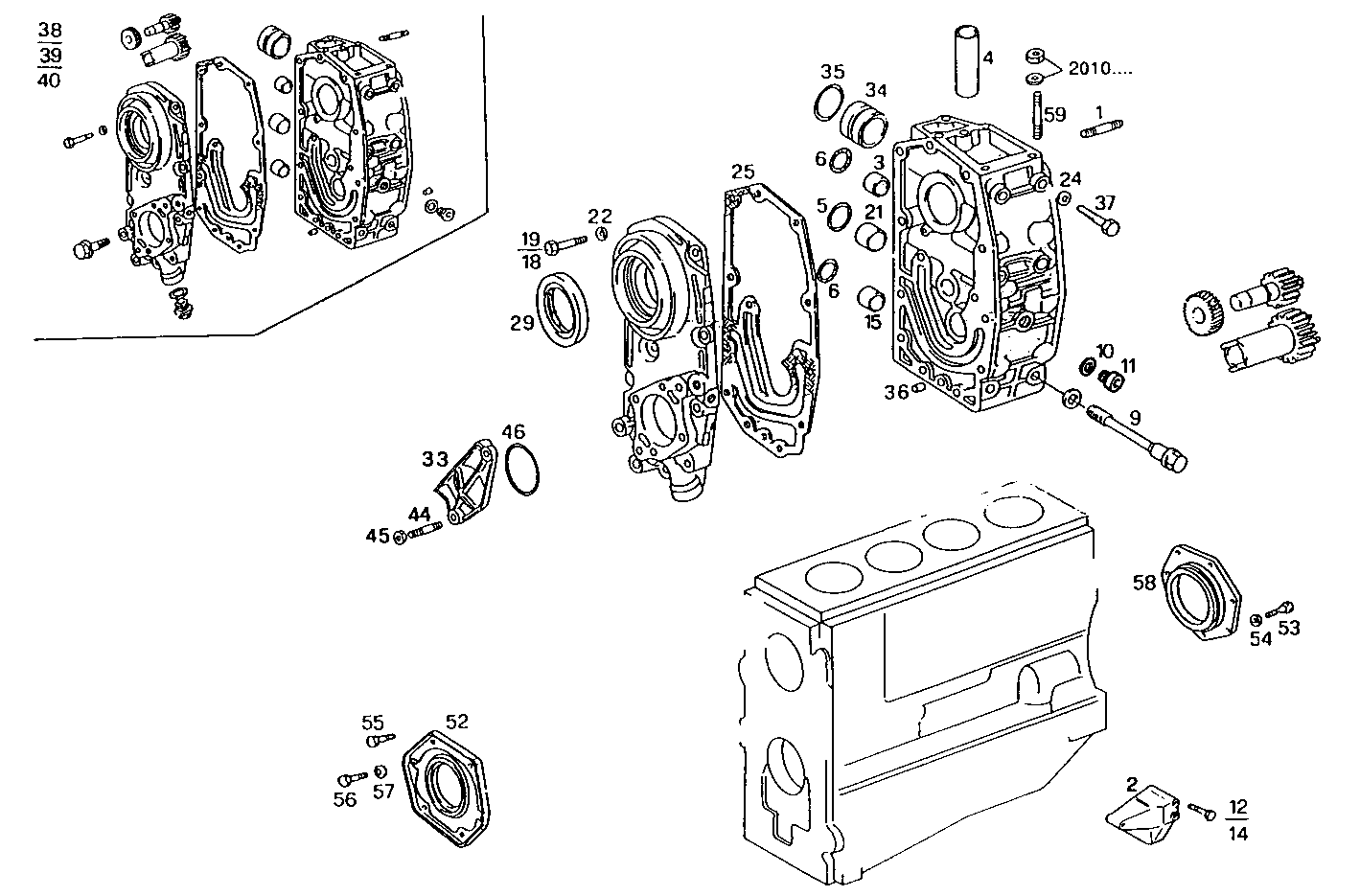

0430.148/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4600631 STUD
2 98473354 BRACKET RIGHT [from 1739717]
3 4279406 BUSH Ø22,3X12 MM
4 4710958 GUIDE BUSH
5 500306196 O-RING Ø17,46 MM SP=2,62 MM
6 17282181 O-RING Ø21,8 MM SP=2,6 MM
9 99458260 SCREW M12X1,5X150 MM
10 10263360 SEAL GASKET 20x26x1
11 4872588 PLUG
12 16289124 HEXAGON BOLT M10X1,25X60 MM
14 16289624 HEXAGON BOLT M10X1,25X100 MM
15 4710945 BUSH Ø18X30 MM
18 16606024 SCREW M8X45 MM
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 4279407 BUSH Ø18X18 MM
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
24 17094924 WASHER Ø8X16 MM
25 98421263 FLAT ENGINE GASKET SP=0,5 MM
29 98454045 SHAFT SEAL
33 98460651 PTO COVER [up to 1653273]
34 98461177 BUSH Ø40X46,2 MM [from 1608990]
35 98461178 O-RING Ø46,04 MM SP=3,53 MM
36 98465476 DOWEL PIN Ø8 MM
37 4741749 SCREW
38 99446913 BEARING HOUSING ASSY [from 1931536]
39 500354822 BEARING HOUSING ASSY [up to 2689493]
40 500364647 BEARING HOUSING ASSY [from 2689494]
44 13449521 STUD M10X15X25
45 14059411 HEXAGON NUT M10X1,25
46 17283881 O-RING Ø48,9 MM
52 98461673 COVER [from 2263444]
53 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
54 17089574 WASHER Ø8X16 MM
55 16585924 HEXAGON BOLT M6X25 MM
56 16689134 SOCKET-HEAD SCREW M6X16 MM
57 17088474 WASHER Ø6X12 MM
58 99447458 COVER [from 2122563]
59 13543224 STUD M8X16X18 MM
