8140SE00.00A016

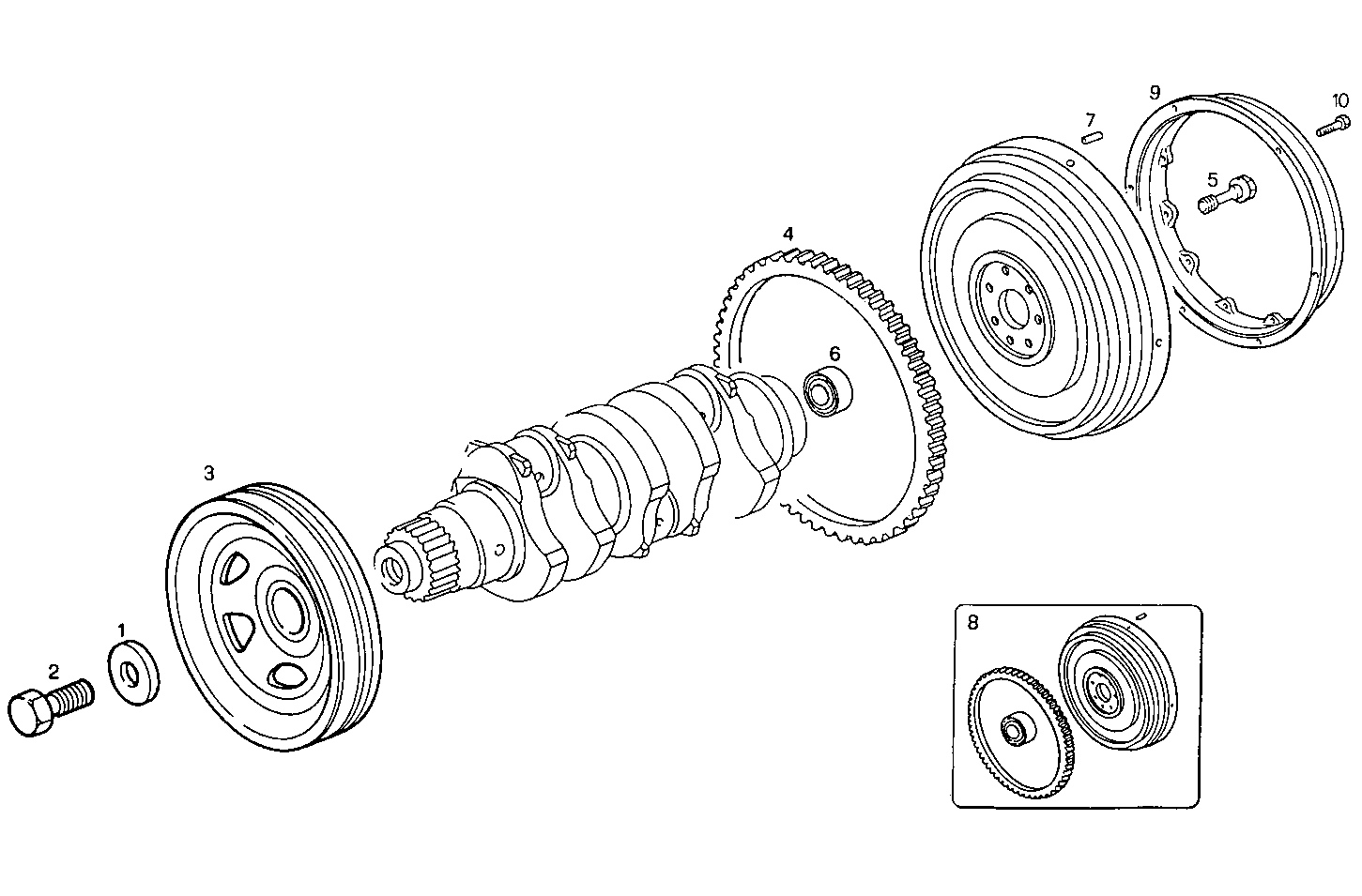

0830.151 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 98431967 | WASHER |
| 2 | 98419203 | SCREW M20X1,5X58 MM |
| 3 | 500332291 | CRANKSHAFT PULLEY Ø127 MM |
| 4 | 4279804 | RING GEAR |
| 5 | 98430735 | SCREW |
| 6 | 98426210 | ENGINE BEARINGS Ø15X35 Sp=14 MM |
| 7 | 7300039 | DOWEL PIN |
| 8 | 8027380 | FLYWHEEL ASSY |
| 9 | 8024998 | RING |
| 10 | 16690524 | SCREW M8X20 MM (8.8) |
