8140SE00.00A016

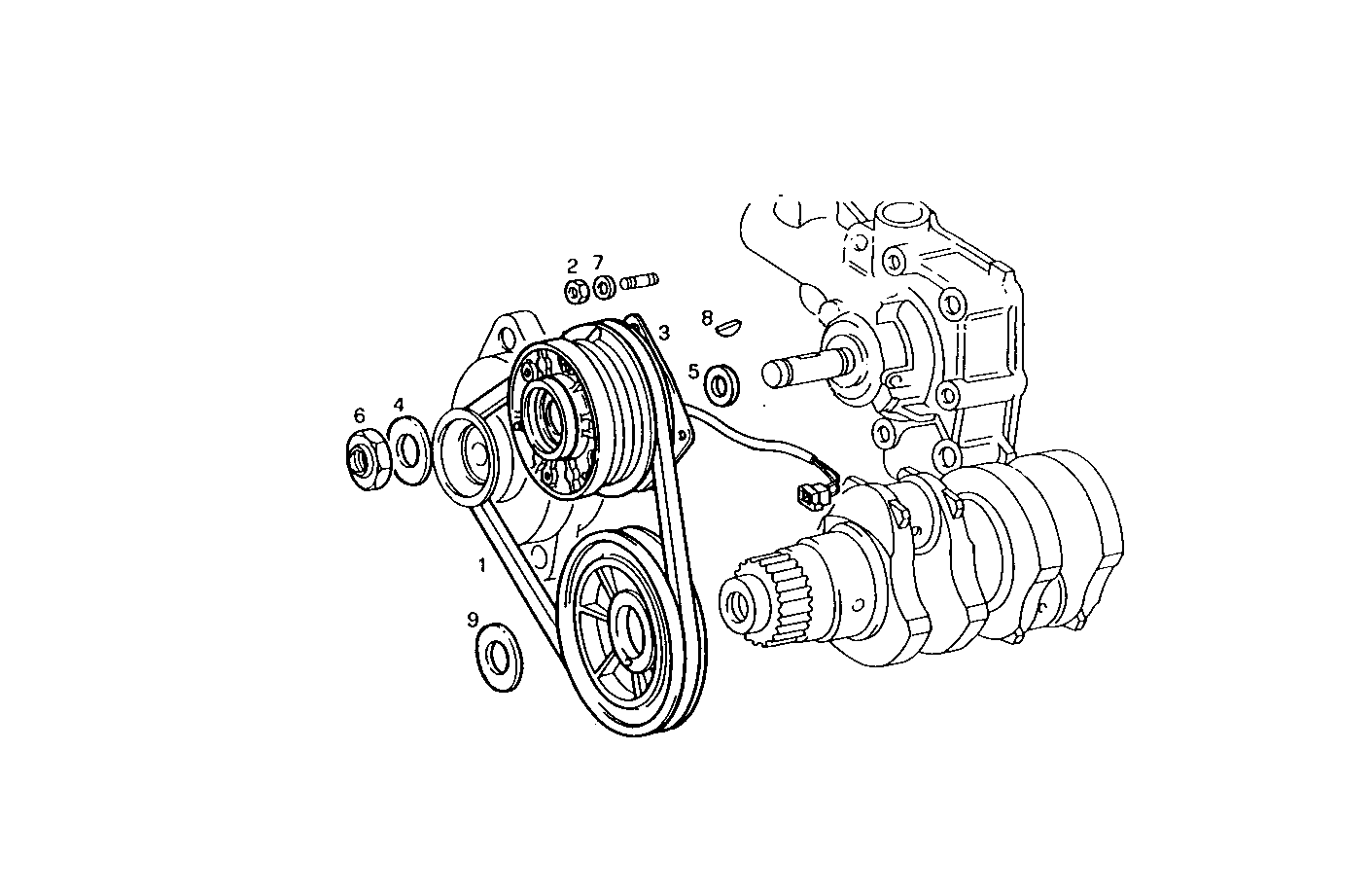

3240.100 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 99462224 | WATER PUMP BELT L=790 MM |
| 2 | 17037821 | HEXAGON NUT M6X1 |
| 3 | 500305942 | WATER PUMP PULLEY D=136 MM |
| 4 | 17092074 | SPRING WASHER Ø14X32 MM SP=4 MM |
| 5 | 98437565 | WASHER Ø25 MM |
| 6 | 98446151 | HEXAGON NUT |
| 7 | 11197774 | WASHER Ø6 MM |
| 8 | 10205710 | KEY 3X5 MM |
| 9 | 98431967 | WASHER |
