8140SE00.00A016

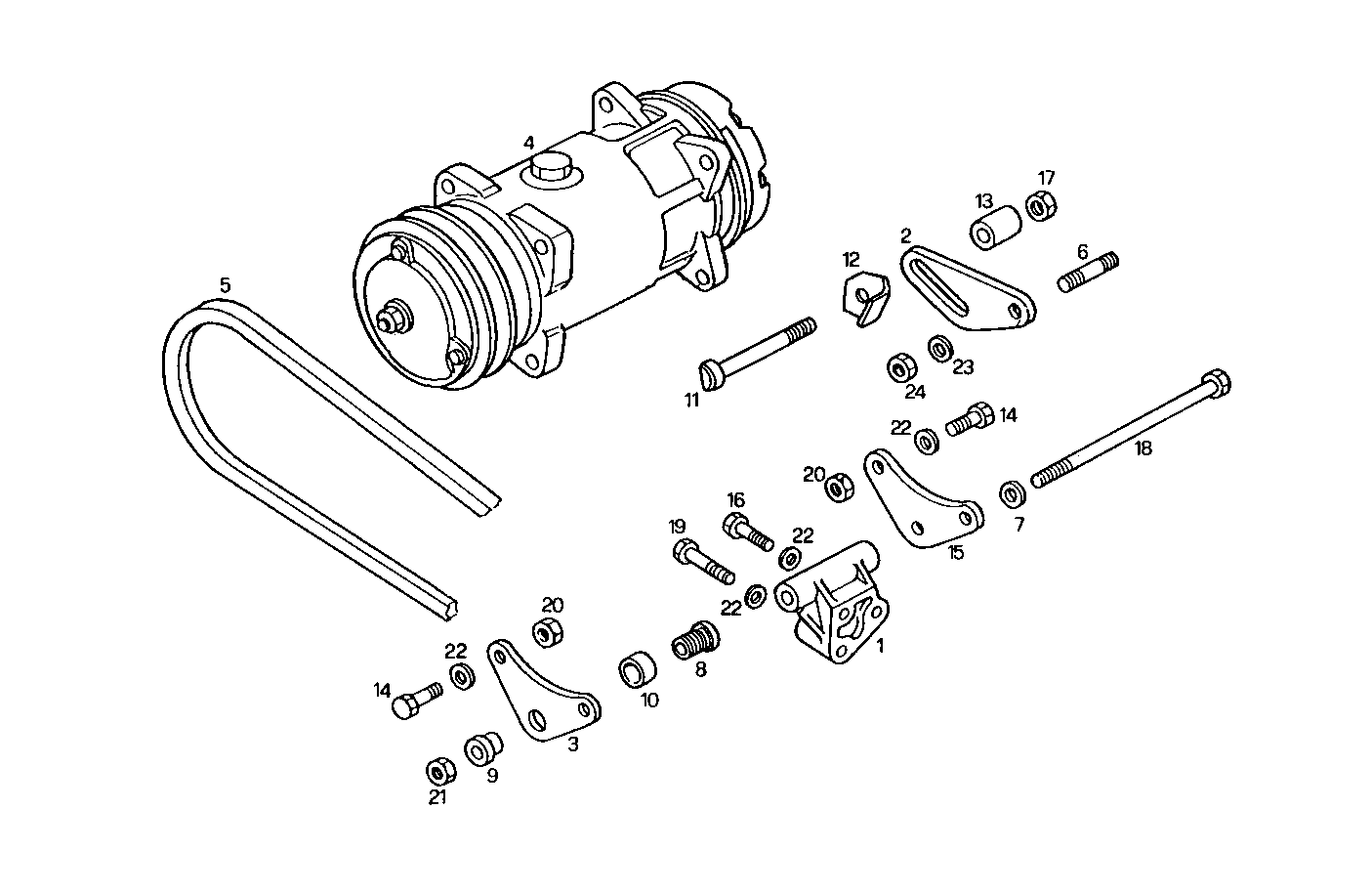

3900.002 COMPRESSOR AIR CONDITIONING

Iveco/FPT COMPRESSOR AIR CONDITIONING

Item Part number Description
1 4827093 SUPPORT
2 4827098 BELT TENSIONER
3 4827099 RETAINER
4 99435705 AIR COND.COMPRESS. ASSY KNORR
5 500337152 V-BELT L=850 MM
6 13546321 STUD M10X25 MM
7 17091074 WASHER Ø12X24X2,8 MM
8 7300998 SPACING BAR
9 7300999 SPACING BAR
10 7301000 RUBBER BUSH
11 7301766 SCREW
12 7301767 STOP PLATE
13 7301772 SPACING BAR
14 16607824 HEXAGON BOLT M10X35 MM (8.8)
15 4827101 RETAINER
16 11288024 HEXAGON BOLT M10X1,25X60 MM
17 17038221 HEXAGON NUT M10
18 16607224 SCREW
19 15888824 HEXAGON BOLT M10X1,25X70 MM
20 17038121 HEXAGON NUT M10
21 17038521 HEXAGON NUT M12X1,5
22 17090174 SPRING WASHER Ø10X20 MM
23 7300040 WASHER SP=2,00 MM
24 17153021 HEXAGON NUT M10X1,25
