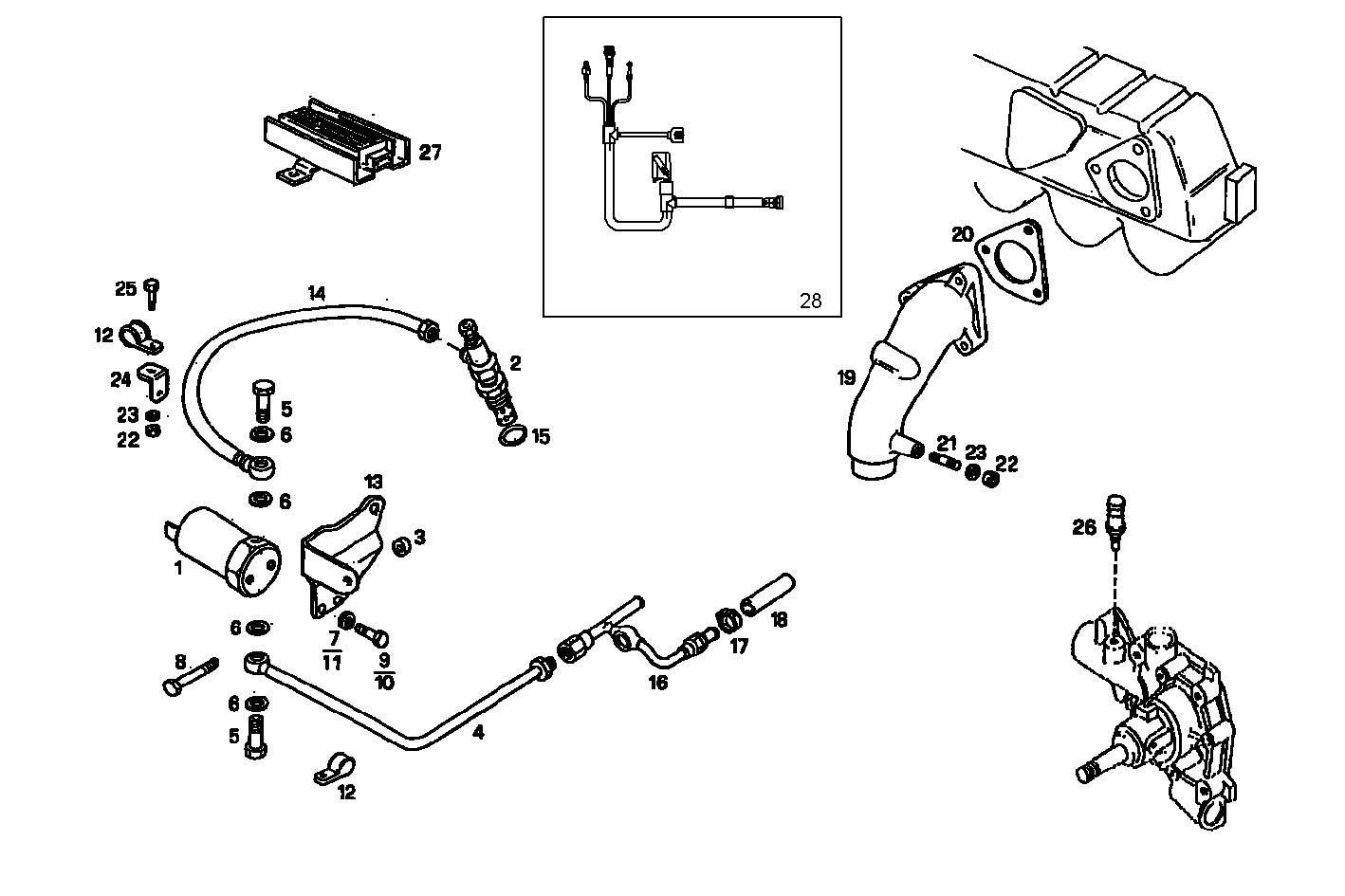

| Item |
Part number |
Description |
|
1 |
98494902 |
ELECTROVALVE |
|
2 |
99473620 |
ELECTROVALVE |
|
3 |
4853864 |
SPACING BAR |
|
4 |
4854000 |
FUEL LINE |
|
5 |
4864079 |
SCREW CONNECTOR M10X1 |
|
6 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
7 |
17094504 |
WASHER Ø5,3X10 MM |
|
8 |
16606624 |
HEXAGON BOLT M8X80 MM |
|
9 |
16602024 |
SCREW M5X12 MM (8.8) |
|
10 |
16603524 |
SCREW M6X12 MM (8.8) |
|
11 |
17088474 |
WASHER Ø6X12 MM |
|
12 |
17314590 |
RETAINER Ø6 MM |
|
13 |
4853863 |
RETAINER |
|
14 |
8022763 |
FUEL LINE |
|
15 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
|
16 |
8021668 |
AIR MANIFOLD |
|
17 |
18087991 |
CLIP Ø8/16 MM |
|
18 |
19056687 |
RUBBER HOSE Ø7,5 MM |
|
19 |
8022720 |
AIR PIPE/DUCT |
|
20 |
98421281 |
GASKET |
|
21 |
16746624 |
STUD M8X20 MM (8.8) |
|
22 |
17037931 |
HEXAGON NUT M8X1,25 |
|
23 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
24 |
4929652 |
RETAINER |
|
25 |
16605424 |
SCREW M8X16 MM (8.8) |
|
26 |
4857248 |
TRANSMITTER |
|
27 |
99484736 |
ELECTR.CONTR.UNIT 12V PREHEATER DEVICE |
|
28 |
8027675 |
ENGINE HARNESS |
