8140SRC20.10

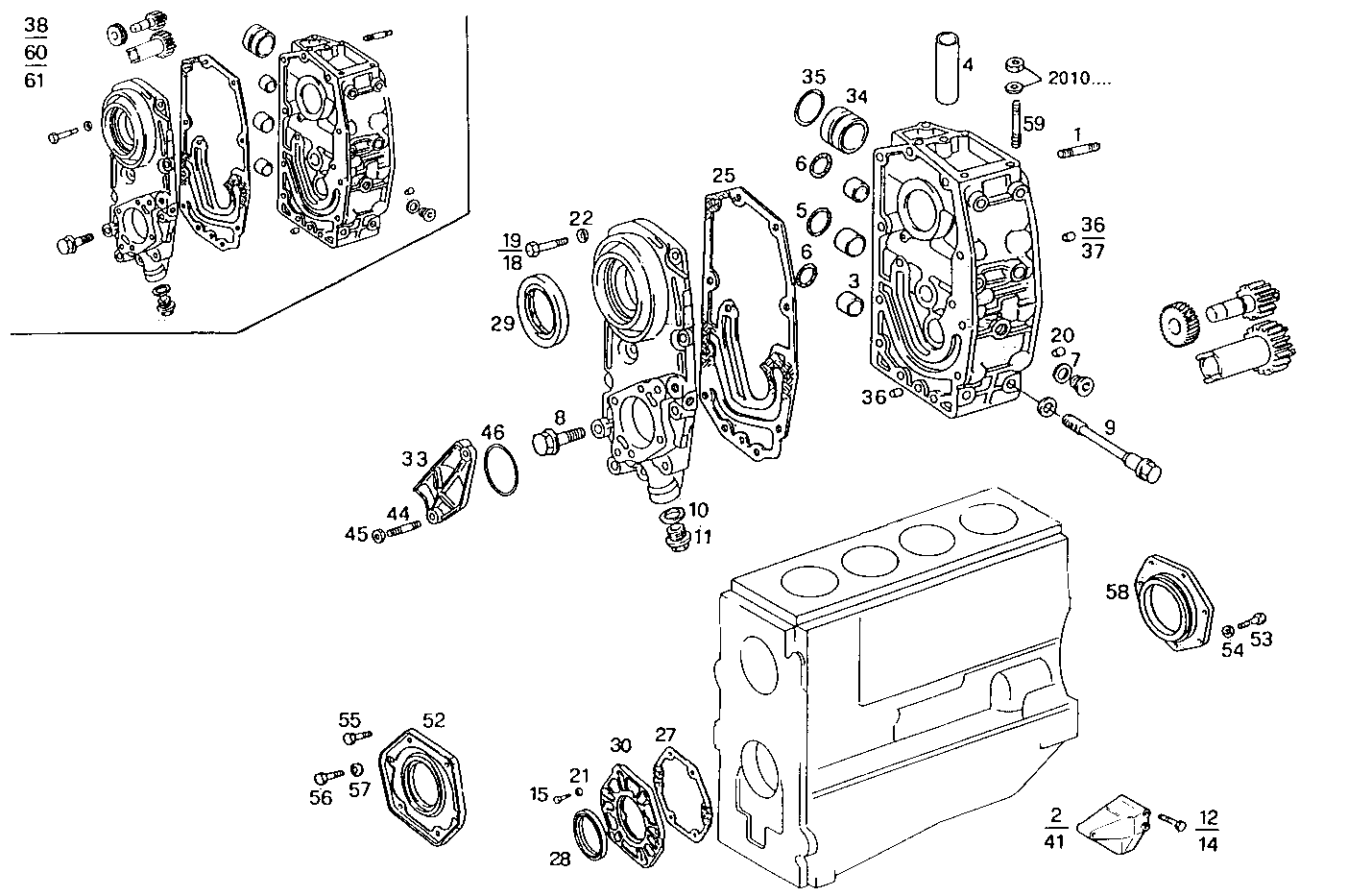

0430.132 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4600631 STUD
2 99452519 BRACKET LEFT
3 4710945 BUSH Ø18X30 MM
4 4710958 GUIDE BUSH
5 4755220 O-RING Ø22,22 MM SP=2,62 MM
6 4755221 O-RING Ø17,86 MM SP=2,62 MM
7 4658608 GASKET
8 7300084 SCREW
9 99458260 SCREW M12X1,5X150 MM
10 10263360 SEAL GASKET 20x26x1
11 10305071 LOCK PLUG M20X1,5 [up to ...]
12 16289124 HEXAGON BOLT M10X1,25X60 MM
14 16289624 HEXAGON BOLT M10X1,25X100 MM
15 16603824 SCREW M6X25
18 16606024 SCREW M8X45 MM
19 16605624 HEXAGON BOLT M8X25 MM (8.8)
20 4732685 DOWEL PIN Ø10 MM
21 11197774 WASHER Ø6 MM
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
25 98421263 FLAT ENGINE GASKET SP=0,5 MM
27 98421275 FLAT ENGINE GASKET SP=0,8 MM
28 98454051 SHAFT SEAL [up to 1614116]
29 98454045 SHAFT SEAL
30 98453818 COVER [up to 1614117]
33 99448956 PTO COVER
34 98461177 BUSH Ø40X46,2 MM [from 1608990]
35 98461178 O-RING Ø46,04 MM SP=3,53 MM
36 98465476 DOWEL PIN Ø8 MM
37 500325603 DOWEL PIN Ø11 MM
38 99446913 BEARING HOUSING ASSY [from 1931536]
41 99452520 BRACKET RIGHT
44 13449521 STUD M10X15X25
45 14059411 HEXAGON NUT M10X1,25
46 17283880 O-RING Ø48,9 MM SP=2,62 MM
52 98461673 COVER [from 2263444]
53 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
54 17089574 WASHER Ø8X16 MM
55 16585924 HEXAGON BOLT M6X25 MM
56 16689134 SOCKET-HEAD SCREW M6X16 MM
57 17088474 WASHER Ø6X12 MM
58 99447458 COVER [from 2122563]
59 13544121 STUD M8X16X55 MM
60 500354822 BEARING HOUSING ASSY [up to 2689493]
61 500364647 BEARING HOUSING ASSY [from 2689494]
