8140SRC20.10

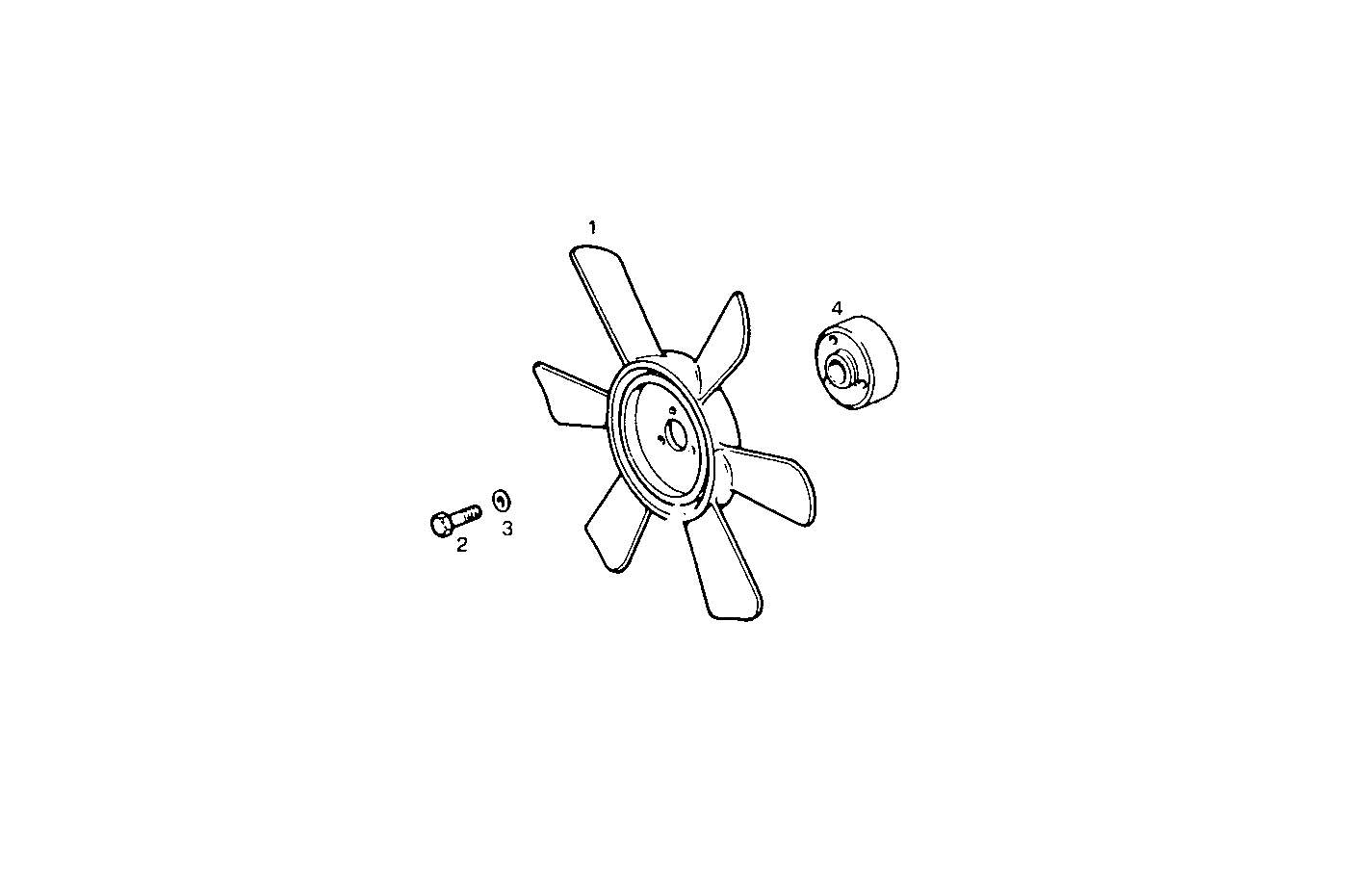

A08070005 PULLER FAN
| Item | Part number | Description |
|---|---|---|
| 1 | 8586706 | BLOWER Ø378 MM |
| 2 | 16606424 | HEXAGON BOLT M8X65 MM |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 8100533 | SPACING BAR |
